Hot Dip Galvanized Cold Rolled Seamless Steel Pipe

ZHONGTIAN Hot Dip Galvanized Cold Rolled Seamless Steel Pipe is produced by applying a hot dip galvanized coating to precision cold rolled or cold drawn seamless steel tubes made from high-quality carbon steel and low alloy steel materials such as 10#, 20#, and Q345B. The cold processing technology improves dimensional accuracy, roundness, straightness, and surface quality, while the subsequent galvanizing process at approximately 440–460℃ creates a metallurgically bonded zinc coating for enhanced corrosion resistance.

Unlike welded pipes, this seamless steel pipe maintains a continuous steel structure without joints, providing stable mechanical performance, excellent sealing capability, and long service life. As a professional China manufacturer and supplier, we provide customized Hot Dip Galvanized Cold Rolled Seamless Steel Pipe solutions for hydraulic equipment, automation systems, precision machinery, and industrial engineering applications.

Manufacturing Technology and Quality Control

1. Cold Rolling Process for Precision Seamless Tube

The production begins with high-quality steel billets that are heated and pierced to form hollow tube blanks. The semi-finished tubes then undergo multiple cold rolling or cold drawing processes, reducing wall thickness while improving dimensional accuracy and surface finish.

During cold working, the outer diameter, inner diameter, wall thickness, and straightness are precisely controlled. After stress-relief annealing, the internal structure becomes more stable, reducing deformation risks during machining, bending, and installation.

Compared with ordinary hot rolled seamless pipes, cold rolled seamless tubes provide tighter tolerance control and smoother inner surfaces, making them suitable for precision mechanical systems and components.

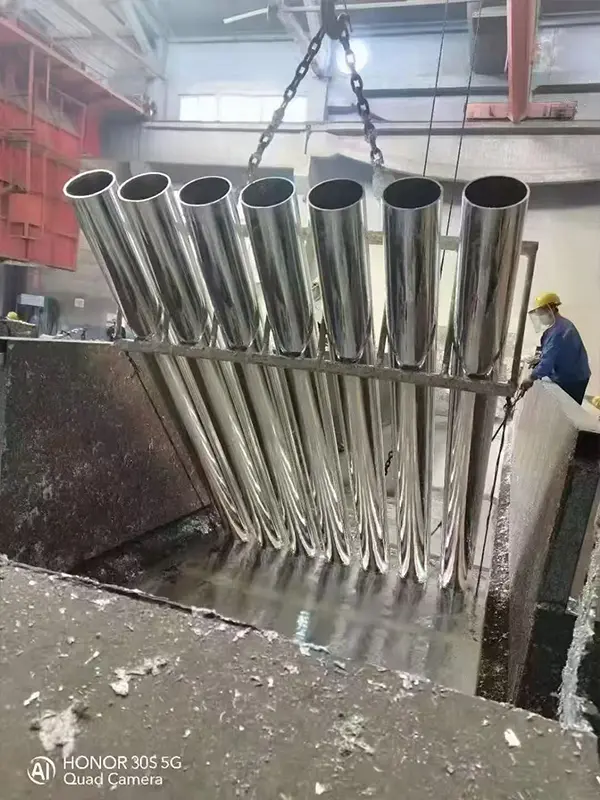

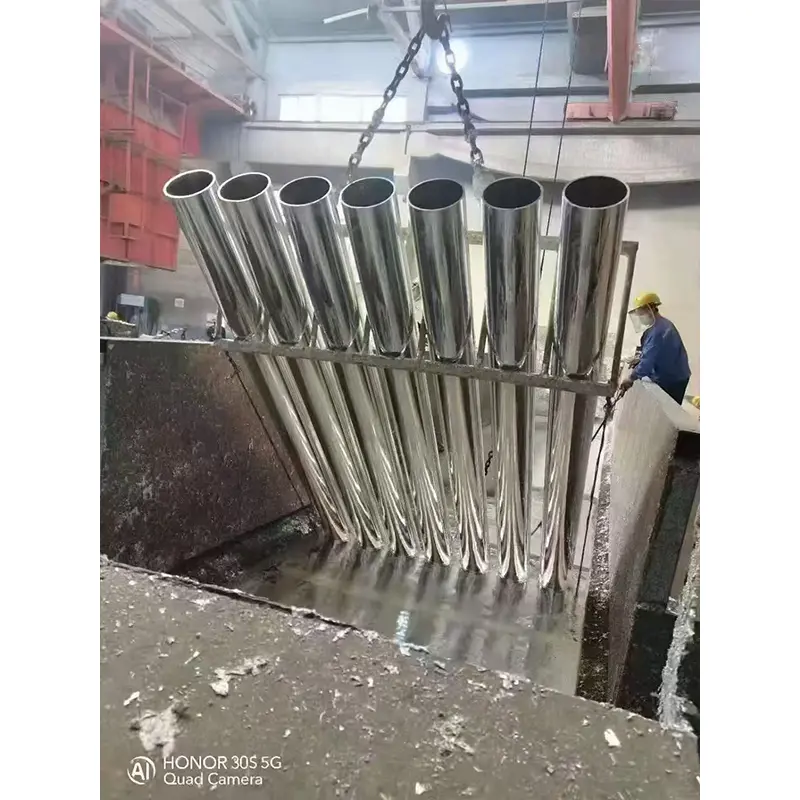

2. Hot Dip Galvanizing Protection Process

After precision forming, the seamless tubes are processed through degreasing, acid cleaning, water washing, flux treatment, and hot dip galvanizing at approximately 440–460℃.

During galvanizing, zinc reacts with the steel substrate to form a zinc-iron alloy layer, followed by an outer pure zinc layer. This metallurgical bonding creates a durable protective coating that provides both barrier protection and sacrificial corrosion resistance.

The galvanized surface has strong adhesion, excellent resistance to moisture and atmospheric corrosion, and maintains stable protection in outdoor and humid environments.

3. Technical Specifications and Inspection Standards

Hot Dip Galvanized Cold Rolled Seamless Steel Pipe is available in various precision specifications to meet different industrial requirements.

Common materials include 10# steel for high plasticity and deep processing, 20# carbon steel for general precision applications, and Q345B for higher strength requirements.

The typical outer diameter range is 10mm–219mm, with wall thickness generally ranging from 2.0mm to 12mm. Standard lengths include 6m and 12m, while customized lengths from 3m to 18m can be supplied according to project requirements.

The product can be manufactured according to standards including GB/T 3639 for precision seamless steel tubes, GB/T 8163 for fluid transportation pipes, GB/T 13912 for hot dip galvanizing, and ISO 1461 for galvanized coating requirements.

The galvanized coating normally reaches an average thickness of ≥85μm, providing long-term corrosion resistance and reliable surface protection.

Performance Advantages and Industrial Value

1. High Precision for Complex Assembly Requirements

The biggest advantage of cold rolled seamless steel pipe is its excellent dimensional accuracy. The cold rolling process minimizes diameter deviation, wall thickness variation, and surface irregularities, allowing precise connection with fittings, valves, hydraulic components, and mechanical assemblies.

This makes the pipe especially suitable for systems where installation accuracy and sealing performance are critical.

2. Smooth Surface and Efficient Fluid Transmission

The inner and outer surfaces of the pipe are smoother than conventional hot rolled products. The reduced surface roughness lowers fluid resistance and minimizes contamination accumulation.

For hydraulic oil systems, pneumatic equipment, and clean water applications, the smooth inner wall helps maintain stable flow performance and reduces maintenance frequency.

3. Long-Term Corrosion Protection

The hot dip galvanized layer provides stronger protection than electro-galvanized coatings because the zinc layer chemically bonds with the steel substrate.

The coating can withstand humidity, rainwater exposure, and mild industrial corrosion environments, extending service life and reducing the need for frequent repainting or maintenance.

4. Strong Machining and Forming Capability

Due to its refined structure and controlled dimensions, the pipe can be processed through cutting, bending, welding, threading, and machining.

It is widely used as a precision tube material for equipment manufacturers who require secondary processing and customized fabrication.

5. Stable Mechanical Performance

The seamless structure eliminates welded weak points, while the cold rolling process improves material uniformity. The pipe provides stable strength, good toughness, and reliable performance under vibration, pressure fluctuation, and repeated operation conditions.

Typical Industrial Applications

1. Hydraulic and Automation Equipment

Hot Dip Galvanized Cold Rolled Seamless Steel Pipe is widely used in hydraulic cylinders, hydraulic control systems, pneumatic equipment, and automated production lines where accurate dimensions and corrosion resistance are required.

Its smooth internal surface and reliable sealing performance help improve equipment stability.

2. Instrumentation and Precision Pipeline Systems

For pressure gauges, measuring instruments, control systems, and laboratory equipment, the pipe provides accurate dimensions and clean internal conditions.

It is suitable for small diameter fluid transmission systems requiring stable pressure control.

3. Clean Water and Environmental Equipment

The galvanized surface provides additional protection for water treatment equipment, filtration systems, building water supply branches, and environmental protection facilities.

The smooth pipe surface helps reduce deposits and improves long-term operating efficiency.

4. Mechanical Manufacturing Components

The product can be processed into precision sleeves, equipment supports, machine parts, and protective tubes.

Its combination of dimensional accuracy and corrosion resistance makes it suitable for machinery manufacturers and equipment integrators.

5. Outdoor Precision Structures

For solar mounting structures, outdoor equipment frames, landscape structures, and small steel framework projects, the galvanized coating provides long-lasting protection against weather exposure.

International Application Case

Precision Hydraulic Pipeline Project for a German Industrial Equipment Manufacturer

A German automation equipment manufacturer required corrosion-resistant precision steel tubes for hydraulic control units used in high-frequency production lines.

The original carbon steel tubes experienced surface oxidation after long-term exposure to factory humidity, affecting appearance and maintenance cycles. The project adopted Hot Dip Galvanized Cold Rolled Seamless Steel Pipe with 20# steel material, precision cold rolling process, and customized galvanized coating requirements.

The final solution improved dimensional consistency during assembly, reduced leakage risks in hydraulic connections, and extended maintenance intervals for the equipment system.

This project demonstrated that precision galvanized seamless tubes can effectively combine machining accuracy with long-term corrosion protection in demanding industrial environments.

Comparison with Similar Steel Pipes

1. Hot Dip Galvanized Cold Rolled Seamless Steel Pipe vs Hot Dip Galvanized Hot Rolled Seamless Steel Pipe

Hot Dip Galvanized Cold Rolled Seamless Steel Pipe focuses on precision applications. It provides tighter dimensional tolerance, smoother surface quality, and better suitability for hydraulic systems, instruments, and precision equipment.

Hot Dip Galvanized Hot Rolled Seamless Steel Pipe focuses more on structural strength and large-scale engineering applications. It usually supports larger diameters and thicker walls but has lower dimensional accuracy compared with cold rolled products.

2. Hot Dip Galvanized Cold Rolled Seamless Steel Pipe vs Black Cold Rolled Seamless Steel Pipe

Black cold rolled seamless pipe provides excellent precision and machining performance but has no corrosion protection layer. It is mainly used in indoor environments or applications requiring further surface treatment.

Hot Dip Galvanized Cold Rolled Seamless Steel Pipe adds a durable zinc coating, making it suitable for humid environments, outdoor installations, and projects requiring reduced maintenance.

Application Selection Guide

1. Choose the Right Material According to Working Conditions

For general precision pipelines and equipment applications, 20# steel provides a balanced combination of strength, machinability, and cost efficiency.

For deep forming, bending, and applications requiring higher ductility, 10# steel is recommended.

For higher load requirements and stronger mechanical performance, Q345B material can be selected.

2. Select Manufacturing Accuracy Based on Application

Hydraulic systems, automation equipment, and precision instruments should prioritize cold rolled seamless pipes because dimensional accuracy directly affects sealing and assembly performance.

For general structural or transportation applications where tolerance requirements are less strict, hot rolled products may provide better cost efficiency.

3. Confirm Galvanizing Quality Before Purchase

Buyers should verify galvanized coating thickness, surface condition, material certificates, and dimensional inspection reports.

For precision engineering projects, suppliers should provide complete quality documents including material certificates and coating inspection records.

FAQ

1. What is Hot Dip Galvanized Cold Rolled Seamless Steel Pipe?

Hot Dip Galvanized Cold Rolled Seamless Steel Pipe is a precision seamless tube manufactured through cold rolling technology and finished with hot dip galvanizing treatment. It combines accurate dimensions, smooth surface quality, seamless structure, and long-term corrosion resistance.

2. What is the difference between cold rolled galvanized seamless pipe and hot rolled galvanized seamless pipe?

Cold rolled galvanized seamless pipe provides higher dimensional accuracy, smoother surfaces, and better performance for precision equipment and hydraulic systems.

Hot rolled galvanized seamless pipe offers wider size ranges and stronger suitability for large engineering projects where extreme precision is not required.

3. Is hot dip galvanizing better than electro galvanizing?

Yes, for outdoor and long-term applications. Hot dip galvanizing creates a thicker zinc layer with metallurgical bonding, providing stronger corrosion resistance and longer service life compared with electro galvanizing.

4. Can this pipe be used for hydraulic systems?

Yes. Its seamless structure, accurate dimensions, smooth inner surface, and corrosion-resistant galvanized coating make it suitable for hydraulic pipelines, pneumatic systems, and precision fluid control equipment.

5. Can the pipe be processed after galvanizing?

Yes. It can be cut, bent, threaded, and welded according to project requirements. After processing, damaged galvanized areas should be repaired to maintain corrosion protection.
