Advantages of Straight-Seam Welded Pipes

I. Cost and Production Advantages

Lower Price and High Cost-Performance Ratio

Produced via continuous forming from hot-rolled or cold-rolled steel strip coils, the process ensures high raw material utilization and a streamlined workflow. Costs per ton are 10%–30% lower than those of seamless or spiral-welded pipes, offering significant advantages for bulk procurement.

Rapid Supply and Comprehensive Specifications

Automated continuous production lines ensure high capacity and short delivery times. Ample stock is available for standard outer diameters and wall thicknesses, with exceptional mass-production capabilities for small-diameter and thin-walled pipes.

High Dimensional Precision

Roll-formed from steel strips, the pipes feature strict tolerances for outer diameter, wall thickness, and ovality. The wall thickness is uniform, and internal/external dimensional consistency far surpasses that of spiral-welded pipes. Precision cutting ensures a perfect fit when assembling with matching flanges and fittings.

II. Appearance and Forming Quality

Smooth, Flat Weld Seams

Fused via high-frequency resistance welding without filler wire, the weld seam is narrow and smooth. Internal and external burrs are professionally removed, resulting in a smooth inner wall that minimizes fluid transport resistance and reduces the risk of scaling or clogging.

Excellent Straightness

Continuous roll-straightening ensures minimal curvature across the entire pipe length, simplifying installation for columns, supports, and steel structures by eliminating the need for extensive manual straightening.

Aesthetically Pleasing Surface

The consistent surface quality of the base steel strip ensures superior adhesion for galvanizing, painting, and anti-corrosion coatings, making the pipes ideal for exposed applications such as municipal landscaping, guardrails, and decorative structures.

III. Mechanical and Operational Performance

Uniform and Stable Material Properties

The base material is a continuous hot-rolled steel strip with a uniform microstructure, free from the core porosity or wall-thickness irregularities often caused by the piercing process in seamless pipe manufacturing. Yield and tensile properties remain stable and consistent.

Reliable Pressure-Bearing Capacity (Optimal for Low-to-Medium Pressure)

The narrow heat-affected zone and low welding stress result in high pass rates for hydrostatic testing; the pipes are well-suited for low-to-medium pressure fluid transport applications, including water, gas, ventilation, and hydraulic systems. Excellent Cold-Working Performance

Easily bent, punched, threaded, stamped, and formed into pipe bends without cracking; highly adaptable for processing into steel structural supports, greenhouse piping, scaffolding, and mechanical components.

IV. Unique Advantages Over Other Pipe Types

Compared to Seamless Steel Pipe

Lighter weight for the same specifications, resulting in material savings; higher dimensional accuracy; significant price advantage for mass production; easier to manufacture in thin-walled specifications.

Drawback: Performance under high-pressure and high-temperature conditions is inferior to seamless pipe.

Compared to Spiral Welded Pipe

Shorter weld seams, lower probability of defects, and reduced risk of leakage; superior roundness and straightness; smooth surface finish suitable for precision machining and exposed decorative applications; for small diameters (DN15–DN300), straight-seam pipe is virtually the only option.

Spiral welded pipe holds an advantage only in large-diameter, thick-walled municipal piping applications.

V. Advantages in Application Scenarios

Fluid Transport: Tap water, natural gas, low-pressure oil/gas, and fire-suppression piping; smooth inner walls result in minimal pressure drop;

Steel Structures: Factory columns, scaffolding, greenhouses, guardrails, and photovoltaic mounting structures;

Mechanical Processing: Equipment frames, conveyor rollers, and construction machinery components;

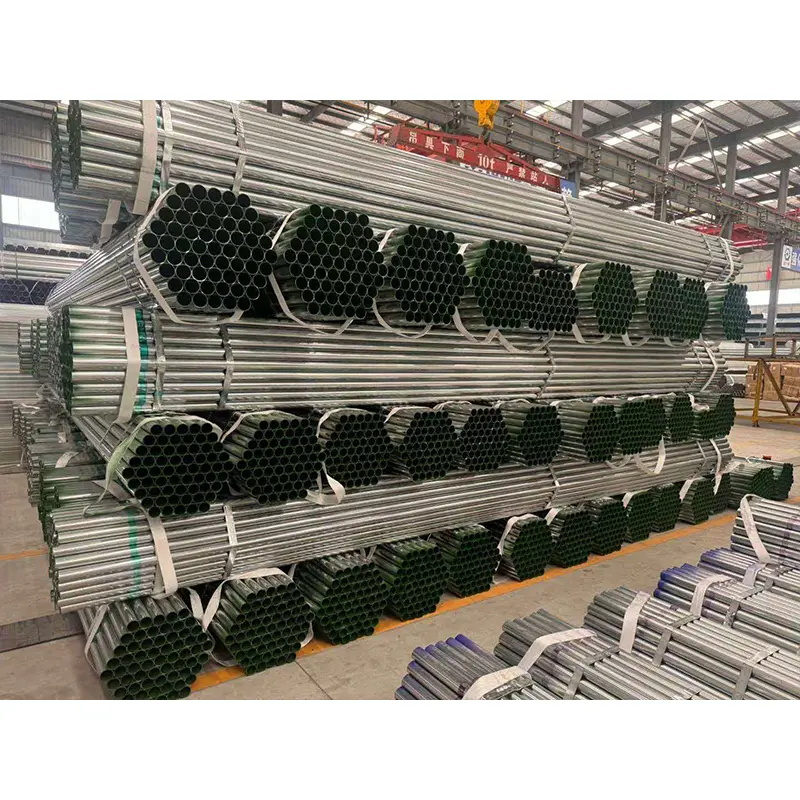

Anti-corrosion & Decoration: Galvanized straight-seam pipe and powder-coated pipe; suitable for road guardrails and steel-structure curtain walls.
