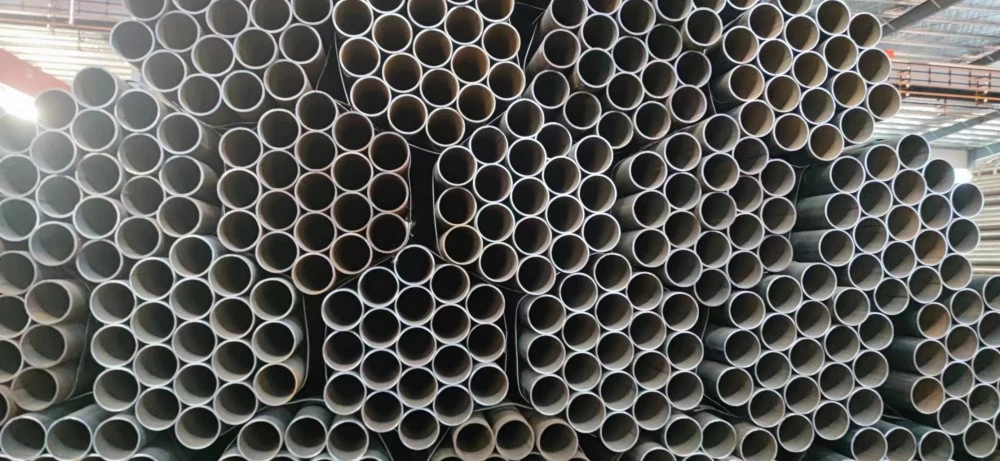

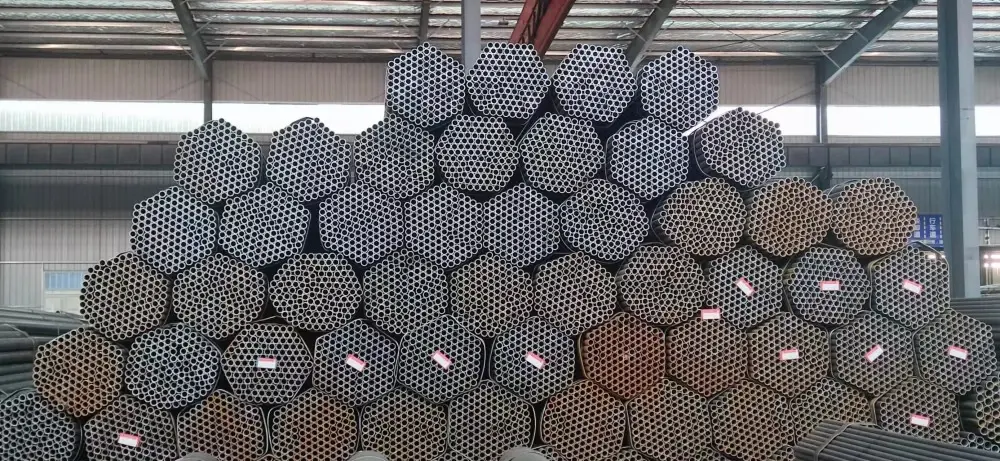

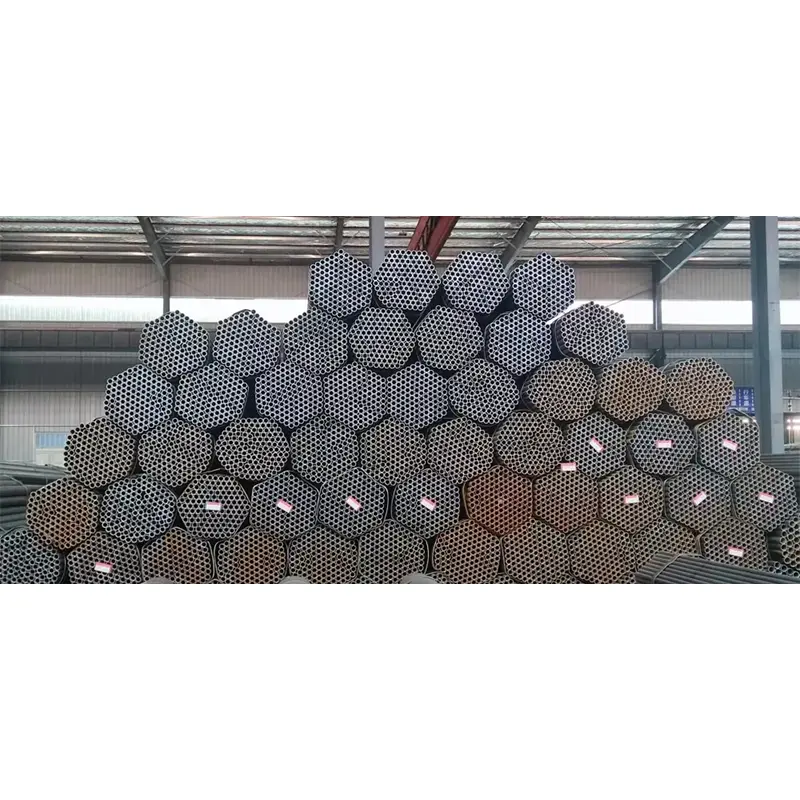

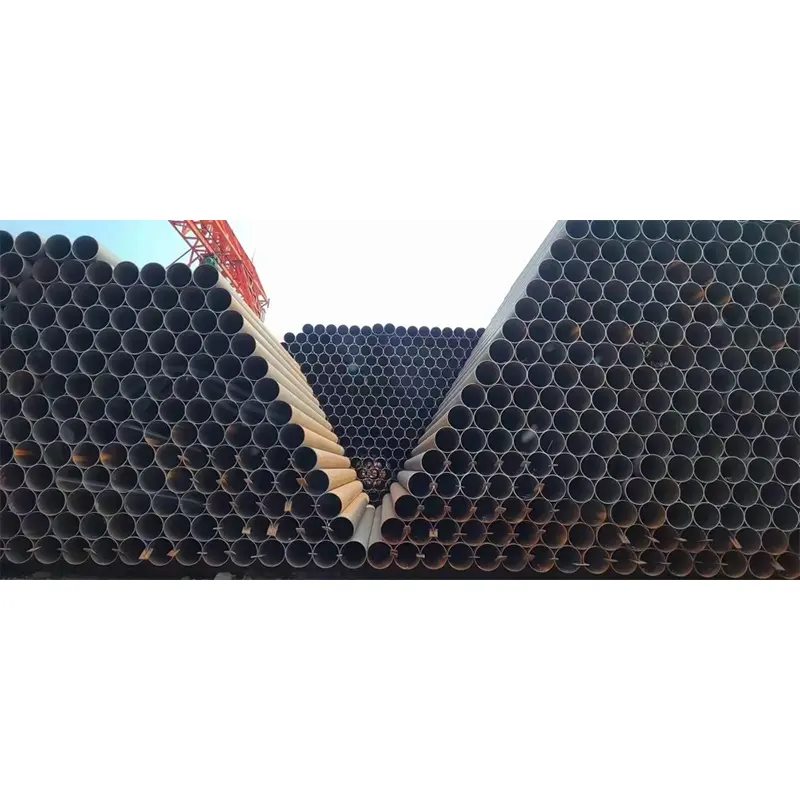

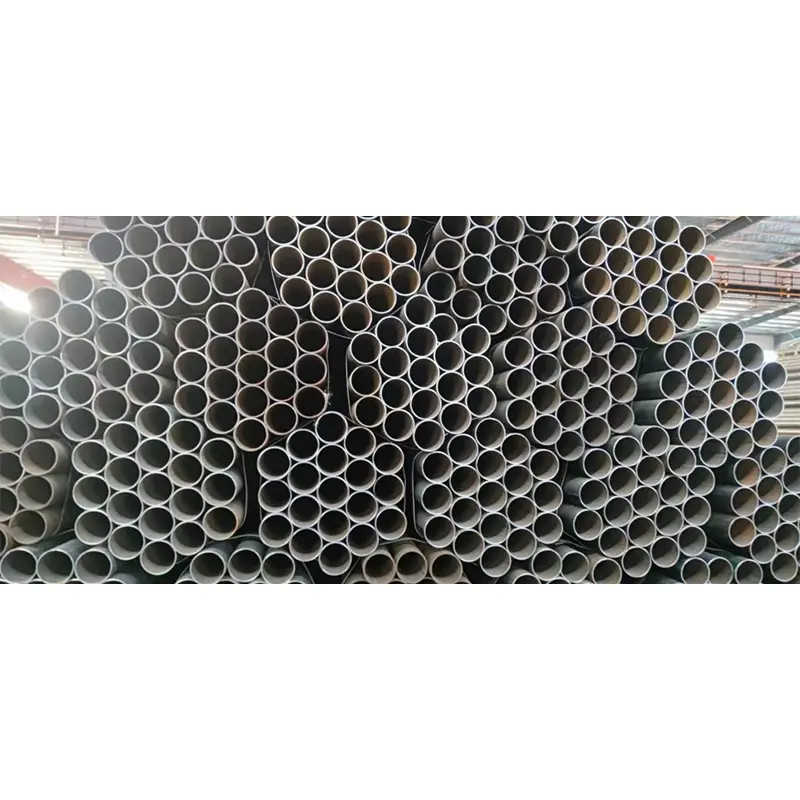

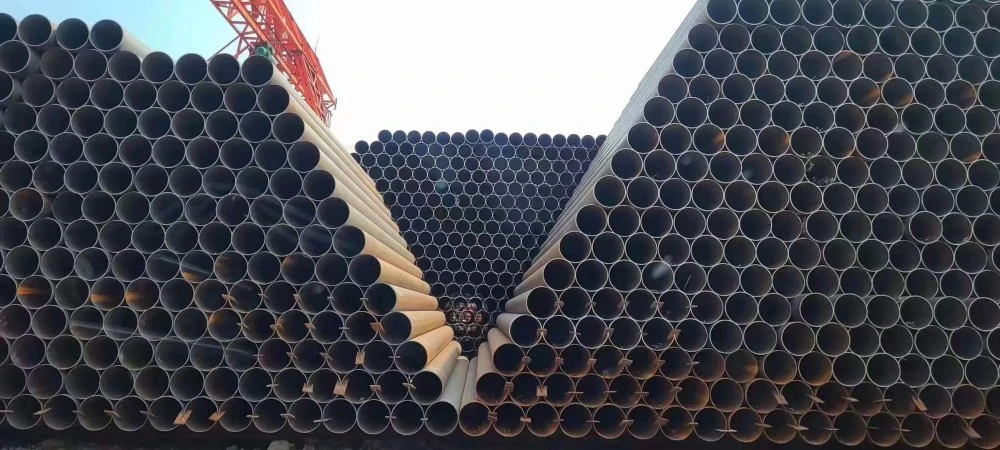

Black ERW Round Steel Pipe

Black ERW Round Steel Pipe is produced using high-quality hot-rolled or cold-rolled steel strips as the raw material. During production, the steel strip is gradually formed into a round tube shape through multiple forming rollers, and the edges are joined by high-frequency electric resistance welding without additional filler metal.

The welded pipe then undergoes sizing, straightening, surface treatment, and inspection processes to achieve accurate dimensions and consistent mechanical properties. The black surface appearance comes from the heat treatment process after welding or protective oil treatment, providing temporary corrosion resistance during storage and transportation.

ZHONGTIAN manufactures these pipes according to strict production procedures, ensuring smooth weld seams, good roundness, and reliable connection performance during installation.

Standards and Material Selection

1. Applicable Standards

ZHONGTIAN Black ERW Round Steel Pipe complies with major international standards including GB/T 3091 for low-pressure fluid transportation pipes, GB/T 9711 for pipeline applications, as well as ASTM A53 and API 5L requirements for overseas markets.

The products can also be supplied according to customer-specific technical requirements, including different dimensional tolerances, inspection standards, and surface treatment conditions.

2. Steel Grade Options

The most commonly used material is Q235B carbon steel, which provides balanced strength, excellent weldability, and economical performance for general construction and pipeline applications.

For projects requiring higher load-bearing capacity, ZHONGTIAN can provide Q345B/Q355B low-alloy steel options with higher yield strength and improved toughness. Other materials such as Q195 and Q215 are also available for applications requiring easier forming and lighter structures.

Product Specifications

1. Dimension Range

ZHONGTIAN Black ERW Round Steel Pipe is available in a wide range of sizes to meet different engineering requirements. Standard outer diameters typically cover Φ21.3mm to Φ219mm, while larger diameter options can reach approximately Φ630mm depending on production requirements.

The available wall thickness range is generally from 1.0mm to 16mm, including standard and heavy wall options. Common lengths include 6 meters, 9 meters, and 12 meters, while customized lengths can be produced according to project requirements.

2. Dimensional Accuracy

The production process ensures excellent dimensional consistency. According to GB/T 3091 requirements, the outer diameter tolerance can be controlled within ±1%, wall thickness tolerance within ±12.5%, and straightness maintained within strict limits.

Accurate dimensions help reduce installation difficulties and improve welding efficiency during construction.

ERW Production Process

1. High Frequency Welding Technology

ZHONGTIAN applies modern ERW manufacturing technology throughout the production process. Steel coils are first uncoiled, leveled, and formed into tubular shapes through precision rollers. High-frequency electrical current is then applied to heat and fuse the edges of the steel strip, creating a strong longitudinal weld.

After welding, the pipe undergoes weld seam treatment, sizing, straightening, cutting, and surface protection. Each production stage is carefully monitored to maintain consistent quality and mechanical performance.

2. Quality Inspection Process

Before shipment, every batch is inspected through multiple quality control procedures, including dimensional measurement, surface inspection, weld evaluation, and non-destructive testing when required.

ZHONGTIAN provides inspection documents and material certificates to help customers verify product quality and ensure compliance with project specifications.

Performance Advantages

1. High Cost Efficiency

One of the major advantages of Black ERW Round Steel Pipe is its excellent cost-performance ratio. Compared with seamless steel pipes, ERW pipes offer significantly lower production costs while maintaining sufficient strength for many structural and low-pressure applications.

This makes them an economical choice for large-scale construction projects and industrial applications.

2. Excellent Processing Performance

The uniform structure and accurate dimensions allow easy cutting, welding, threading, and fabrication. Contractors can process the pipes using common equipment, reducing installation time and overall project costs.

3. Stable Supply Capability

With mature steel production resources and efficient manufacturing systems, ZHONGTIAN can provide stable supply for both standard orders and customized requirements. Multiple specifications and packaging solutions are available for different transportation conditions.

4. Reliable Structural Performance

The welded structure provides good strength and rigidity for general engineering applications. The pipes maintain stable performance under normal working conditions and are suitable for applications requiring dependable mechanical support.

Application Fields

1. Low Pressure Fluid Transportation

Black ERW Round Steel Pipe is widely used for transporting low-pressure fluids such as water, air, and gas. Typical applications include building water supply systems, fire protection pipelines, agricultural irrigation systems, and municipal pipeline networks.

Its economical price and easy installation make it one of the most commonly selected materials for general fluid transportation.

2. Construction and Structural Engineering

In construction projects, these pipes are frequently used for scaffolding systems, steel structures, greenhouse frames, guardrails, support structures, and equipment frames.

The good strength-to-weight ratio allows engineers to achieve stable structures while controlling material costs.

3. Mechanical and Industrial Applications

ZHONGTIAN Black ERW Round Steel Pipe is also applied in machinery manufacturing, furniture production, storage racks, fitness equipment, electrical protection sleeves, and various fabricated steel components.

Surface Treatment and Corrosion Protection

1. Black Surface Condition

The standard black surface is suitable for indoor environments or applications where additional coating will be applied after installation. A thin layer of protective oil can help reduce corrosion during storage and transportation.

2. Additional Anti-Corrosion Options

For outdoor or humid environments, additional protection such as painting, epoxy coating, or galvanizing can significantly improve service life. Customers can select suitable surface treatments according to climate conditions and application requirements.

ZHONGTIAN supports customized surface solutions for different engineering environments.

Product Selection Guide

1. Material Selection

For ordinary construction and general structural applications, Q235B is usually the preferred choice due to its good weldability and economical performance.

For heavier loads, impact resistance requirements, or demanding environments, Q355B low-alloy steel provides higher strength and better overall performance.

2. Application Environment

Indoor applications usually require only basic surface protection, while outdoor, coastal, or chemically aggressive environments require enhanced corrosion-resistant treatment.

Selecting the correct material grade, wall thickness, and surface treatment ensures longer service life and better economic benefits.

Product Specifications

FAQ

Q1: What is the difference between Black ERW Round Steel Pipe and seamless steel pipe?

Black ERW Round Steel Pipe is manufactured by welding formed steel strips through high-frequency resistance welding, while seamless steel pipes are produced without welding seams. ERW pipes provide better cost efficiency and dimensional accuracy, making them suitable for general construction and low-pressure applications.

Q2: What steel grades can ZHONGTIAN provide?

ZHONGTIAN mainly supplies Q235B carbon steel pipes for general engineering applications and also provides Q345B/Q355B low-alloy steel pipes for projects requiring higher strength and improved toughness.

Q3: Can the pipe length and surface treatment be customized?

Yes. ZHONGTIAN supports customized lengths, surface coatings, packaging methods, and inspection requirements according to customer project specifications.

Q4: Are Black ERW Round Steel Pipes suitable for outdoor use?

The standard black surface provides basic protection but is not recommended for long-term outdoor exposure without additional coating. For outdoor applications, painting, galvanizing, or other anti-corrosion treatments are recommended.

Q5: What quality documents can be provided?

ZHONGTIAN can provide material certificates, inspection reports, and other technical documents required for international customers and engineering projects.

ZHONGTIAN is committed to supplying reliable steel pipe solutions with consistent quality, competitive pricing, and professional service. Through advanced manufacturing technology and strict quality management, ZHONGTIAN supports customers worldwide with dependable steel products for construction, infrastructure, and industrial applications.
