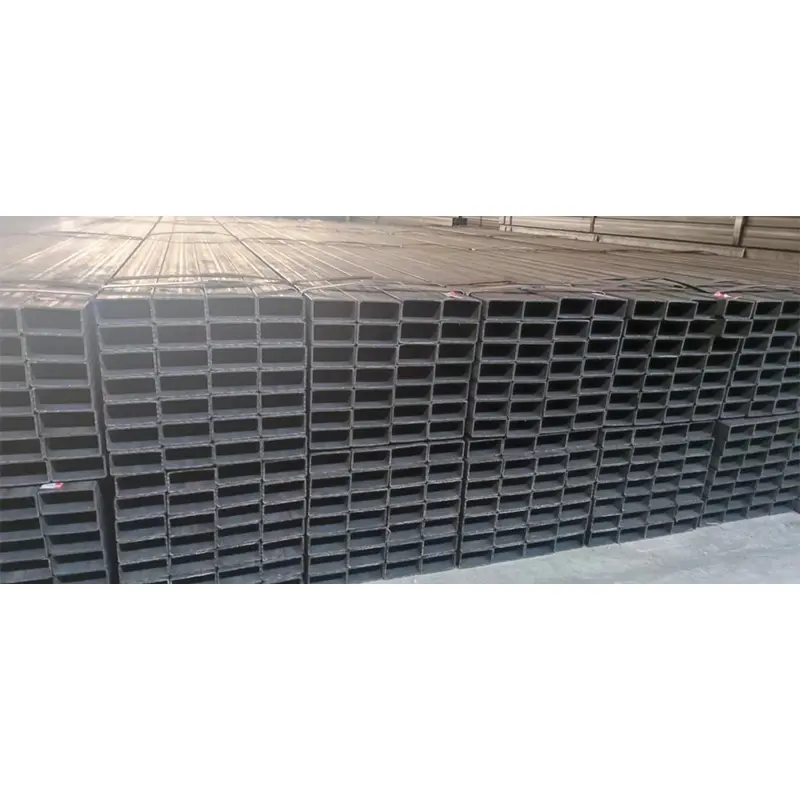

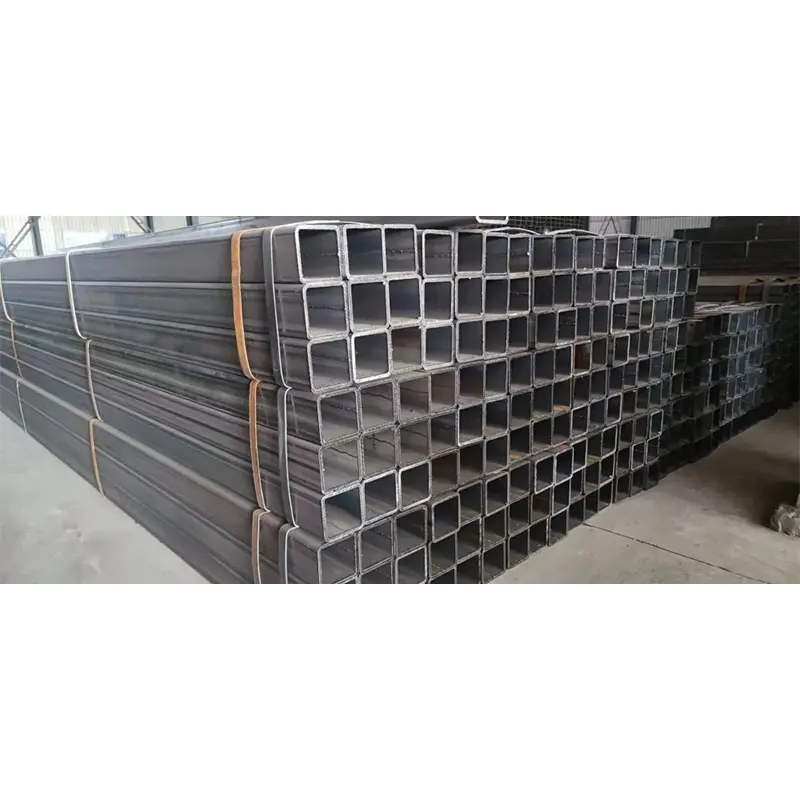

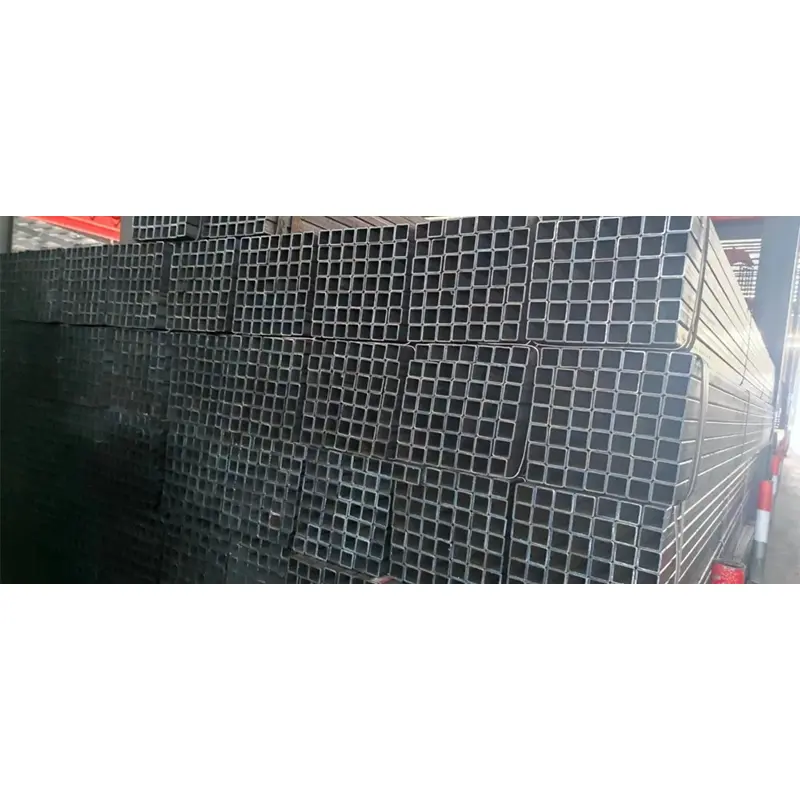

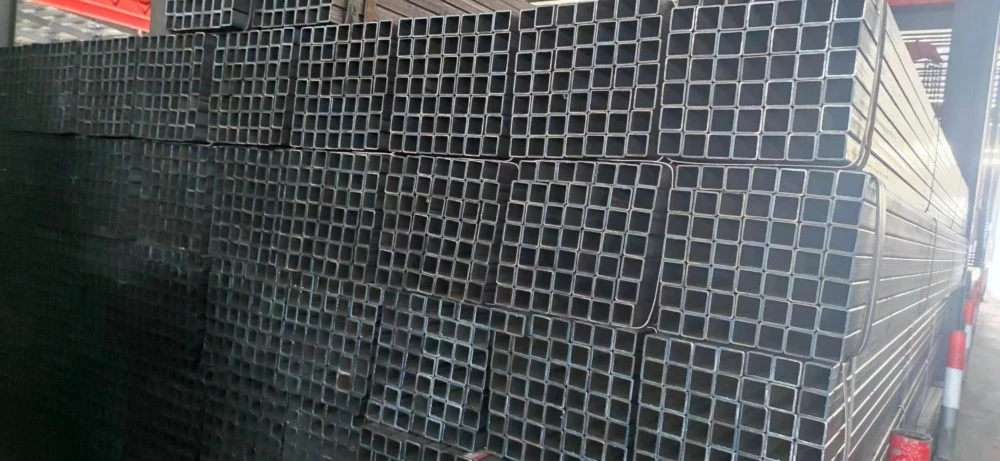

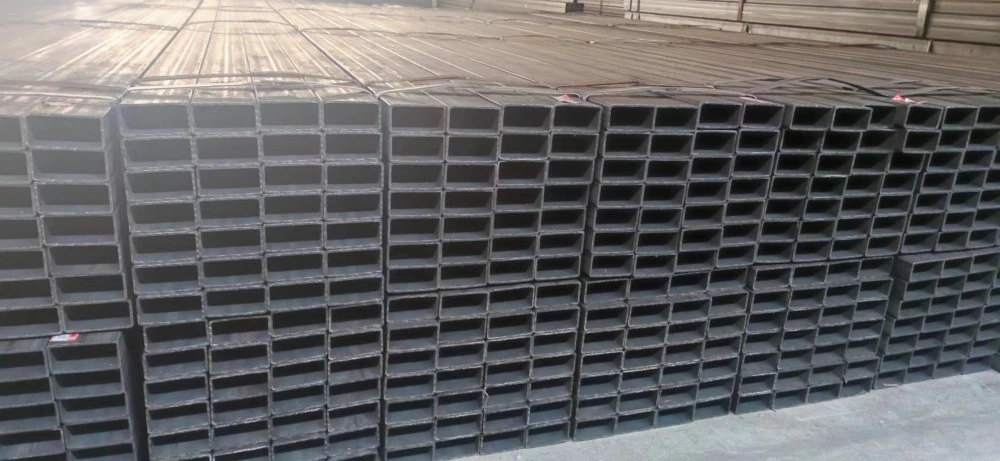

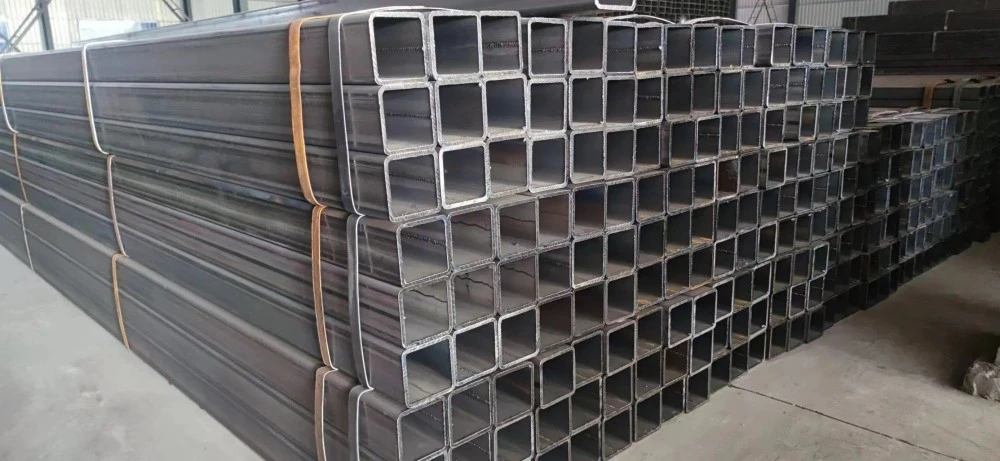

Black Rectangular and Square Steel Tube

1. Structural Framework for Construction Projects

Black Rectangular and Square Steel Tube is widely selected as a structural component due to its closed hollow section design. Compared with open steel profiles such as angle steel and channel steel, the rectangular section provides better torsional resistance and a cleaner appearance.

In construction projects, it is commonly used for steel building frames, equipment platforms, curtain wall supports, roof structures, and temporary construction frameworks. Since the surface has no galvanized coating, welding, cutting, and on-site modification can be completed more easily.

2. Base Material for Industrial Equipment Manufacturing

The stable dimensions and excellent weldability of black rectangular and square steel tube make it a common material for machinery manufacturing.

It is widely used for:

● Automation equipment frames

● Conveyor system supports

● Agricultural machinery structures

● Machine bases

● Heavy equipment frames

Manufacturers can easily cut, drill, weld, and assemble the tubes according to specific equipment designs.

3. Steel Tube for Secondary Surface Treatment

Unlike finished galvanized tubes, black rectangular and square steel tube is supplied without a zinc coating, which makes it suitable for projects requiring customized surface treatment.

Many overseas customers purchase black steel tubes and perform local sandblasting, painting, powder coating, or hot dip galvanizing according to regional corrosion protection requirements.

Product Classification

1. Classification by Manufacturing Process

2. Classification by Wall Thickness

Material and Mechanical Properties

1. Common Steel Grades

2. Typical Mechanical Properties of Q235B

Size Range

Manufacturing Process

The production process includes steel strip preparation, leveling, roll forming, high-frequency welding, weld seam treatment, straightening, cutting, and quality inspection.

Because the tube is manufactured without a galvanized coating, the welding process is more convenient and does not require zinc layer removal before fabrication. This makes black rectangular and square steel tube an efficient choice for welded structures and customized steel assemblies.

Advantages and Limitations

1. Main Advantages

Black Rectangular and Square Steel Tube offers excellent cost efficiency and fabrication flexibility.

Its main advantages include:

● Lower material cost compared with galvanized tubes

● Excellent welding performance

● Easy cutting, drilling, and machining

● High bending and torsional resistance

● Suitable for customized fabrication

For projects requiring large quantities of welded structures, black steel tube can significantly reduce manufacturing costs.

2. Usage Limitations

Since black rectangular and square steel tube has no corrosion-resistant coating, it is not recommended for long-term exposure to moisture, marine environments, or highly corrosive conditions without additional protection.

Recommended protection methods include:

● Anti-rust painting

● Powder coating

● Hot dip galvanizing

● Protective coatings

Main Applications

1. Construction Steel Structures

Used for steel workshops, warehouses, curtain wall frames, platforms, stair structures, and temporary buildings.

2. Industrial Equipment Manufacturing

Used for automation equipment frames, conveyor supports, machine bases, agricultural machinery, and engineering equipment structures.

3. Municipal Infrastructure

Used for road barriers, advertising structures, traffic equipment supports, and public facilities.

4. Furniture and Light Manufacturing

Used for metal furniture, fitness equipment, display racks, storage systems, and decorative structures.

Overseas Application Cases

1. Germany Automated Warehouse Equipment Frame Project (2023)

In 2023, a German warehouse equipment manufacturer purchased Black Rectangular Steel Tube for automated storage system support frames.

Project Requirements

The customer required:

● Stable dimensions for precision assembly

● Good welding performance

● Easy local powder coating after fabrication

Supply Solution

Project Result

The black rectangular steel tube met the structural requirements of the warehouse frame while reducing material costs by approximately 20% compared with pre-galvanized alternatives.

2. Australia Greenhouse Structure Project (2022)

In 2022, an agricultural company in Victoria, Australia, selected Black Square Steel Tube for greenhouse support structures.

Project Requirements

The customer needed:

● Lightweight structural material

● Good welding performance

● Easy installation at the construction site

Supply Solution

Project Result

After installation, the customer applied protective coating locally according to Australian agricultural environmental requirements, improving the service life of the structure.

3. UAE Heavy Equipment Base Frame Project (2024)

In 2024, an engineering equipment manufacturer in the UAE purchased thick wall Black Rectangular Steel Tube for heavy machinery base frames.

Project Requirements

The project required:

● High load-bearing capacity

● Excellent welding performance

● Surface preparation before painting

Supply Solution

Project Result

The product provided sufficient structural strength while helping the customer reduce overall fabrication costs.

Comparison with Hot Dip Galvanized Rectangular Tube

Purchasing Guide

1. Material Selection

Q235B is suitable for general structures and equipment frames. Q355B should be selected for heavy-duty applications requiring higher strength.

2. Wall Thickness Selection

Light structures usually use 2.0–3.0mm wall thickness. Heavy equipment frames and load-bearing structures require thicker walls.

3. Corrosion Protection Planning

For outdoor or coastal projects, customers should consider additional protection such as painting or galvanizing after fabrication.

FAQ

1. What is Black Rectangular and Square Steel Tube?

Black Rectangular and Square Steel Tube is an uncoated carbon steel hollow section manufactured by cold forming and welding steel strips. The black surface is caused by the natural oxide layer formed during steel production.

2. Can black square tube be used outdoors?

Yes, but additional corrosion protection is required. For long-term outdoor applications, painting, powder coating, or hot dip galvanizing is recommended.

3. What is the difference between black tube and galvanized tube?

Black tube provides lower cost and better welding flexibility, while galvanized tube offers stronger corrosion resistance and longer service life in outdoor environments.

4. Which material is commonly used for black rectangular tube?

Q235B is the most commonly used material for general applications. Q355B is recommended for heavy-duty structures requiring higher strength.

5. Can manufacturers provide customized sizes?

Yes. Professional steel tube manufacturers can supply customized dimensions, wall thicknesses, cutting lengths, and additional processing services according to project requirements.
