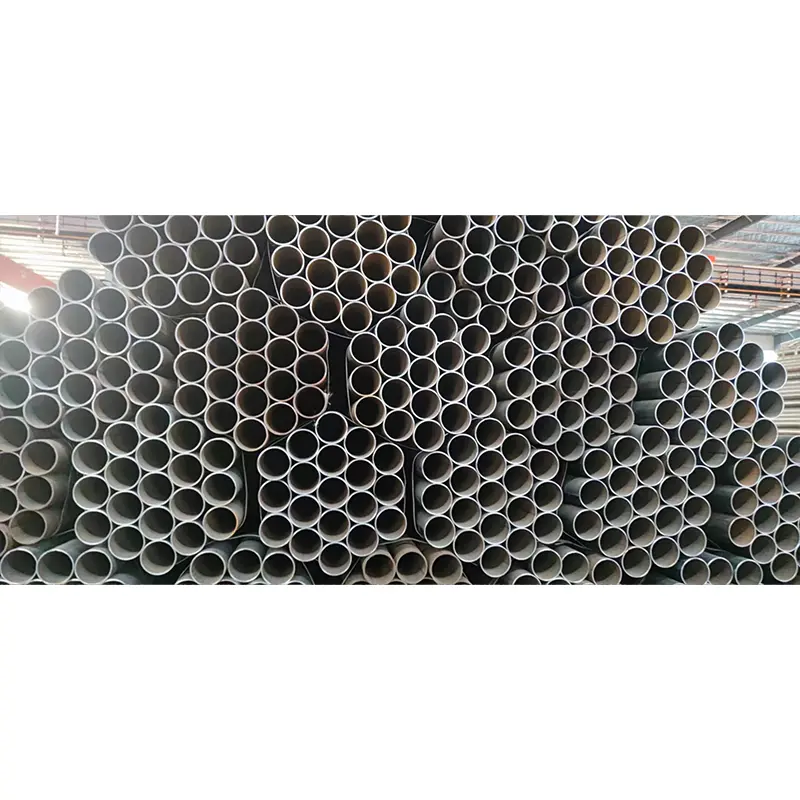

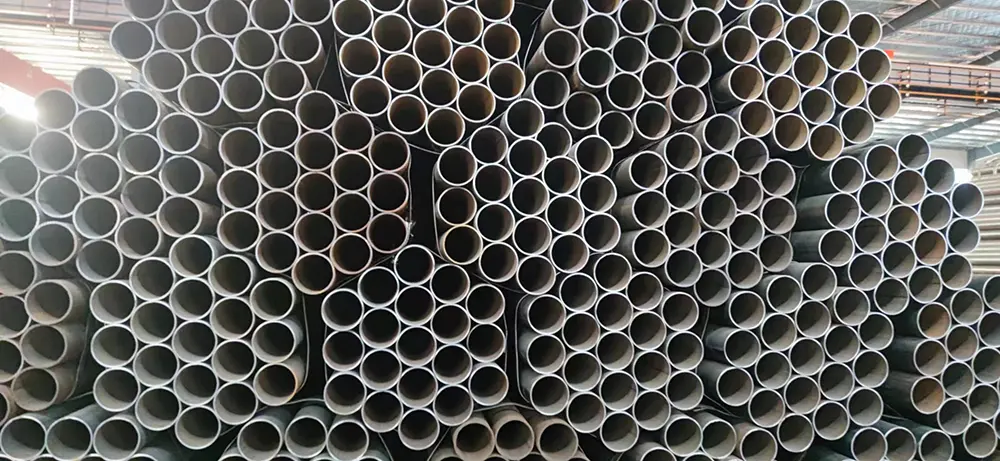

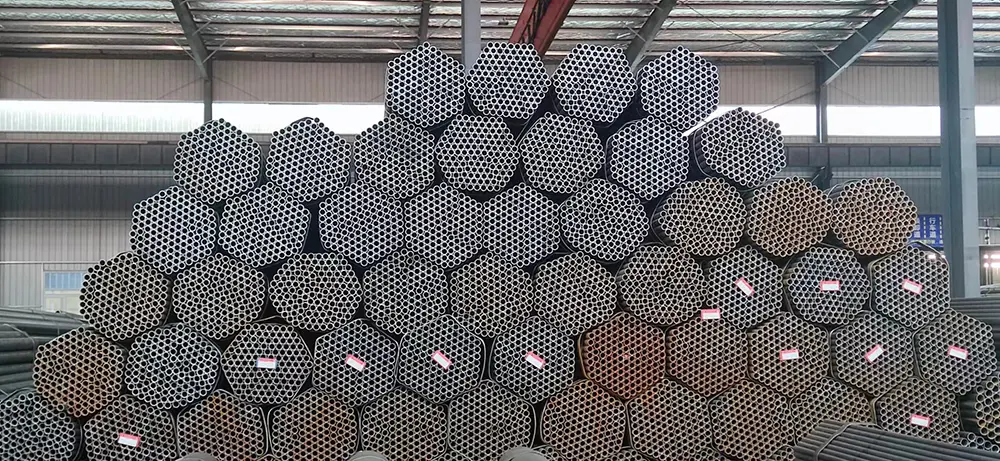

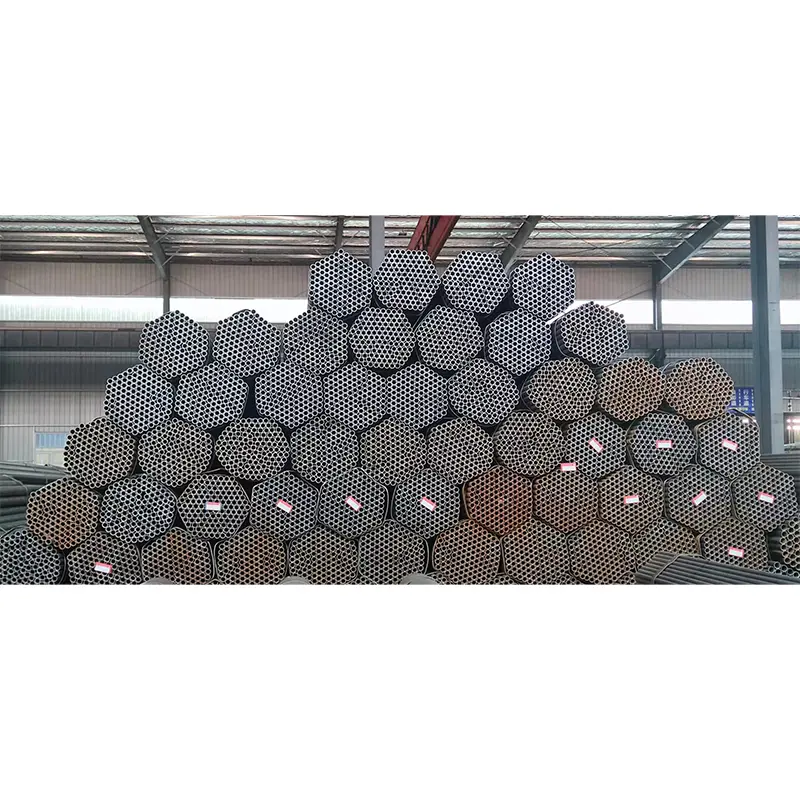

Black Round Steel Pipe

Black Round Steel Pipe refers to carbon steel round pipe that keeps its original black oxide surface after manufacturing without galvanized coating or painting treatment.

Unlike galvanized steel pipe, this product does not include a zinc protective layer. Instead, it provides a simple and economical steel solution where customers can apply painting, coating, or other anti-corrosion treatments according to actual working conditions.

ZHONGTIAN produces black steel pipes mainly through ERW (Electric Resistance Welding) technology. The process forms a longitudinal welded seam with stable strength and accurate dimensions, making the pipes suitable for structural fabrication and general industrial applications.

How Is Black Steel Pipe Manufactured?

The manufacturing process starts with high-quality carbon steel coils, mainly Q235B and Q355B materials. After leveling and forming, the steel strip is gradually shaped into a round tube through multiple roller forming stages.

High-frequency electric resistance welding joins the edges of the formed tube without additional filler metal. The welded pipe then undergoes sizing, straightening, cutting, and inspection before shipment.

This production method provides consistent diameter accuracy, smooth weld appearance, and efficient large-scale production capability.

Material Selection: Q235B or Q355B?

1.Q235B for General Construction Applications

Q235B is the most commonly used grade for black steel pipes because it provides balanced strength, good weldability, and economical pricing.

It is widely used for:

● building supports

● scaffolding systems

● equipment frames

● general steel structures

2.Q355B for Higher Load Requirements

When projects require stronger load-bearing performance, Q355B provides higher yield strength and improved structural reliability.

It is commonly selected for:

● heavy steel structures

● machinery supports

● industrial platforms

● large fabricated components

What Makes Black Steel Pipe Different From Galvanized Pipe?

The biggest difference is surface protection.

Black steel pipe has no zinc coating, which makes it more affordable and easier to weld. However, additional protection is normally required when used in humid or outdoor environments.

Galvanized steel pipe provides better corrosion resistance because of its zinc coating, making it more suitable for outdoor pipelines, agricultural structures, and long-term exposed applications.

For indoor fabrication projects where painting or coating will be performed later, black steel pipe is often the more economical choice.

Common Applications in Construction and Industry

1.Structural Framework and Fabrication

Black steel pipe is widely used in structural applications because of its good strength-to-weight ratio and easy fabrication characteristics.

Typical uses include steel supports, warehouse structures, equipment frames, handrails, and fabricated components.

2.Scaffolding and Temporary Engineering

Due to its cost advantage and welding performance, black steel pipe remains one of the commonly selected materials for scaffolding and temporary construction systems.

3.Machinery Manufacturing

Manufacturers use black steel pipe for machine bases, conveyor frames, agricultural equipment, and industrial support structures where reliable mechanical performance is required.

4.Low-Pressure Transportation Systems

With suitable surface treatment, black steel pipe can be applied in indoor air pipelines, water systems, ventilation systems, and other low-pressure fluid applications.

Available Sizes and Manufacturing Standards

ZHONGTIAN supplies black round steel pipes in various diameters and wall thicknesses according to project requirements.

Common specifications include:

● Diameter: DN15–DN300

● Wall thickness: 2.0mm–10.0mm

● Length: 6m, 9m, 12m or customized

Production can follow commonly used standards including:

● GB/T 3091

● GB/T 8163

● GB/T 13793

Quality Control Before Delivery

Every batch of black steel pipe is inspected before shipment to ensure dimensional accuracy and surface quality.

Inspection items include:

● outside diameter measurement

● wall thickness verification

● weld appearance inspection

● material certificate checking

● mechanical performance confirmation

ZHONGTIAN provides complete product documentation to support customer project requirements.

Choosing the Right Black Steel Pipe

The correct pipe selection depends on application conditions rather than only size and price.

For ordinary structural projects, Q235B is usually sufficient. For heavier loads or demanding structural applications, Q355B is a better choice.

If the pipe will be exposed to moisture, chemicals, or outdoor conditions, customers should consider additional coating protection or choose galvanized alternatives.

FAQ

1.What is black round steel pipe used for?

Black round steel pipe is mainly used for structural supports, scaffolding, machinery frames, construction projects, and low-pressure fluid transportation systems.

2.Is black steel pipe rust resistant?

No. Black steel pipe does not have a protective zinc coating, so it can rust in humid environments. Painting, coating, or other anti-corrosion treatment is recommended for outdoor use.

3.Why choose ERW black steel pipe instead of seamless pipe?

ERW pipe provides better cost efficiency, stable dimensions, and sufficient strength for most construction and industrial applications. Seamless pipe is mainly selected for higher pressure or special working conditions.

4.What is the difference between Q235B and Q355B steel pipe?

Q235B provides good weldability and cost performance for general applications, while Q355B offers higher strength for heavy-load structures.
