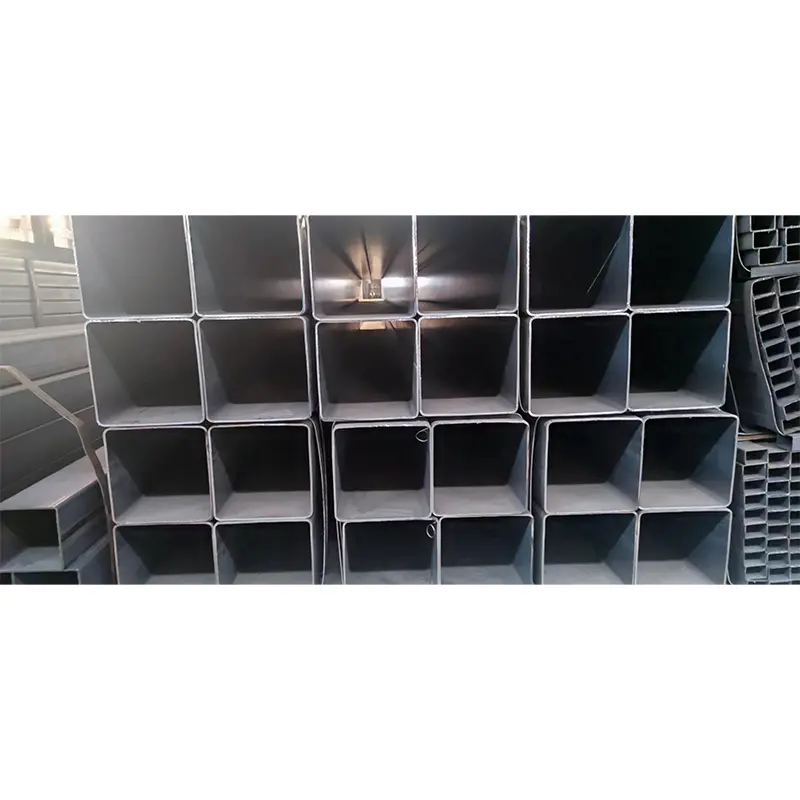

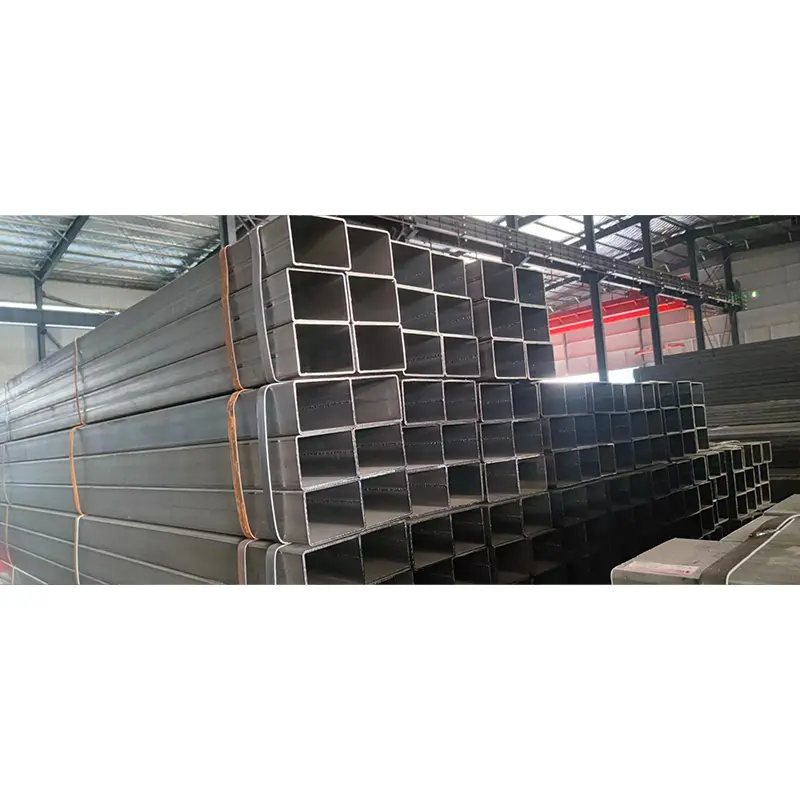

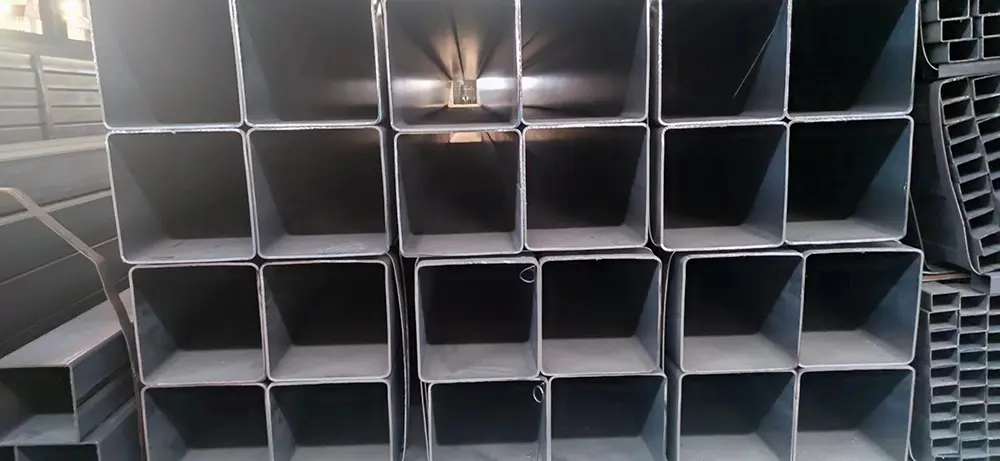

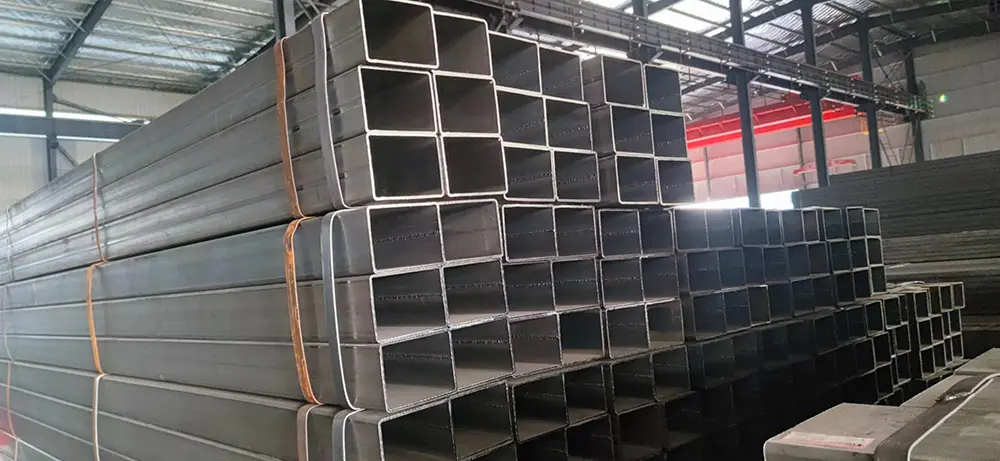

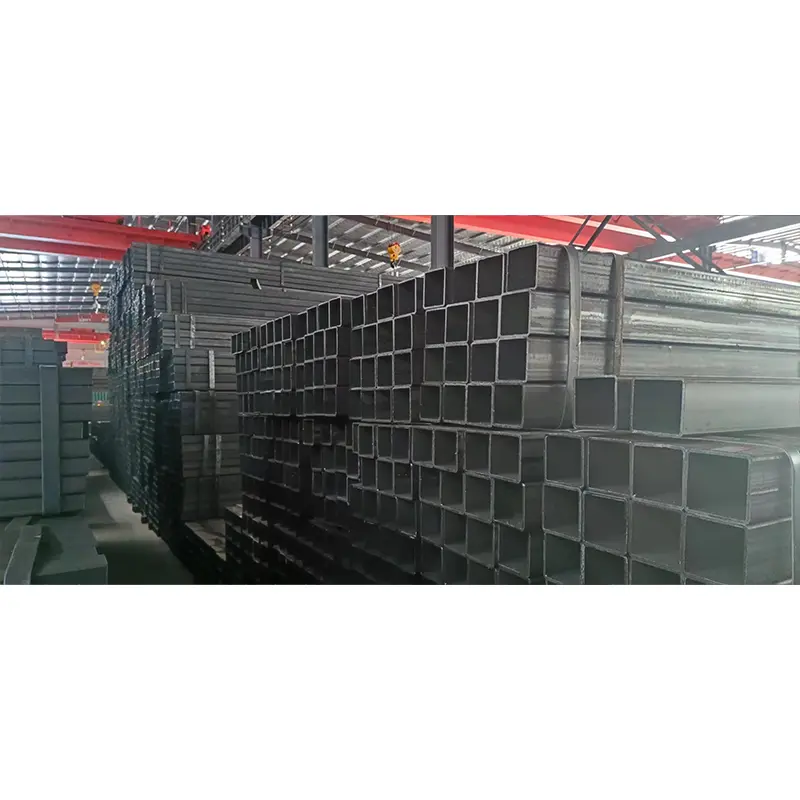

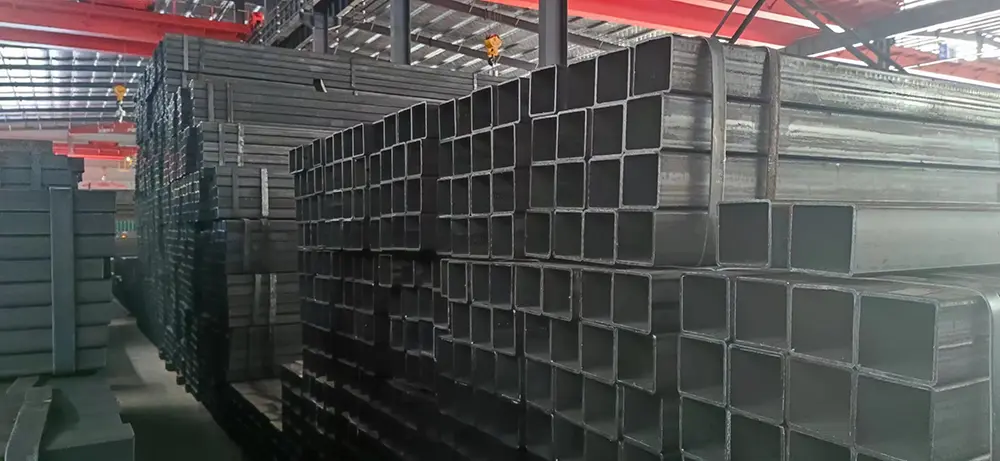

Large Diameter Black Rectangular and Square Steel Tube

ZHONGTIAN Large Diameter Black Rectangular and Square Steel Tube belongs to the heavy-duty structural tube category, characterized by a side length of 100mm or more, with a correspondingly increased wall thickness to match the load-bearing requirements of the large cross-section. This product fills the gap in the applicability of conventional small-diameter pipes in large-scale projects and is an excellent alternative to traditional H-beams, I-beams, and welded composite sections.

Product Characteristics

1. Structural Design

Large diameter black rectangular and square steel tubes use a closed hollow section design, providing higher torsional rigidity and bending resistance compared with open steel profiles of similar weight. The square and rectangular shape also simplifies connection, welding, and assembly during steel structure fabrication.

2. Black Surface Condition

The tube surface retains the black oxide scale generated during steel manufacturing. Since no corrosion coating is applied before delivery, customers can select suitable surface protection methods based on project conditions, including painting, shot blasting, powder coating, or hot dip galvanizing.

3. Heavy Duty Positioning

Compared with small and medium-sized square tubes, large diameter square tubes are mainly designed for structural applications requiring high stability and load capacity. They are commonly selected for columns, support frames, equipment bases, and infrastructure components.

Product Classification

1. Submerged Arc Welded Large Square Tube

Large steel plates are formed into square or rectangular sections and welded using submerged arc welding technology. This method is suitable for ultra-large sizes and thick wall requirements, with excellent welding strength and structural reliability.

2. High Frequency Welded Large Square Tube

Steel strips are continuously formed through rollers and welded using high-frequency resistance welding. This process provides good dimensional accuracy, efficient production, and competitive pricing for commonly used large diameter sizes.

3. Seamless Large Square Tube

Round seamless steel tubes are processed into square or rectangular sections through hot rolling or cold drawing methods. Without welding seams, they provide superior pressure resistance and impact performance for specialized industrial applications.

Technical Specifications

Material Selection

1. Q235B Structural Steel

Q235B is the most commonly selected material for large diameter black rectangular and square tubes. It offers good weldability, balanced strength, and economical cost, making it suitable for industrial buildings, steel frames, and general structural applications.

2. Q355B High Strength Steel

Q355B provides higher yield strength and improved structural performance compared with Q235B. It is commonly used for bridge supports, heavy equipment frames, outdoor structures, and projects requiring higher safety margins.

3. Special Alloy Steel

For high-temperature, high-pressure, or special mechanical applications, materials such as 20#, 16Mn, and 15CrMo can be supplied according to engineering requirements.

Engineering Applications

1.Heavy Steel Building Structures

Large diameter black rectangular and square tubes are widely used as main columns, support beams, roof structures, and framework components in industrial plants, warehouses, and prefabricated buildings. Their high rigidity helps maintain structural stability under long-term loads.

2.Bridge and Infrastructure Projects

The large section size and strong load capacity make these tubes suitable for bridge auxiliary supports, highway facilities, urban structures, and pipeline corridor supports.

3.Heavy Machinery Manufacturing

In heavy equipment manufacturing, these tubes are used for machine bases, construction equipment frames, port machinery structures, and wind power support components where high strength and dimensional stability are required.

International Application Cases

Industrial Warehouse Expansion Project – Saudi Arabia (2022)

A logistics warehouse expansion project in Saudi Arabia selected Q355B large diameter black rectangular steel tubes for the main support framework. The project required steel sections capable of handling high temperatures and heavy roof loads. The tubes were fabricated into structural columns and beams before receiving on-site anti-corrosion coating, improving construction efficiency while maintaining long-term structural stability.

Bridge Support Structure Project – Turkey (2023)

A bridge auxiliary structure project in Turkey used welded large diameter black square tubes as support components. The customer required high bending resistance and accurate dimensional control for field welding. The selected 400×400mm thick wall tubes reduced fabrication complexity compared with traditional steel profiles.

Heavy Equipment Platform – Australia (2021)

An engineering equipment manufacturer in Australia used Q355B large rectangular tubes for heavy machinery platforms. The closed hollow structure provided excellent vibration resistance and helped reduce the weight of the support frame compared with traditional solid steel sections.

Performance Advantages

Application Selection Guide

Choosing the Right Product

1. Select Thickness According to Load

For heavy columns, machinery bases, and infrastructure supports, wall thickness of 8mm or above is commonly recommended. Thin wall large diameter tubes should not be used for major load-bearing structures.

2. Match Material with Environment

Q235B is suitable for normal structural applications. Q355B should be selected for heavy loads, large spans, low-temperature environments, or projects requiring higher structural reliability.

3. Plan Corrosion Protection

Because black rectangular and square tubes are supplied without protective coating, outdoor projects should apply suitable surface treatment after fabrication, such as painting or hot dip galvanizing.

FAQ

1. What is considered a large diameter black rectangular and square steel tube?

Generally, square and rectangular tubes with a side length of 100mm or above are classified as large diameter products. Sizes above 300mm are often considered ultra-large sections.

2. What materials are commonly used?

Q235B is the standard choice for general structures due to its good weldability and cost efficiency. Q355B is preferred for heavy-duty structures requiring higher strength.

3. What wall thicknesses are available?

Common wall thicknesses range from 4mm to 50mm. Heavy structural projects usually select 8mm to 20mm thickness depending on load requirements.

4. What is the black surface on the tube?

The black surface is natural iron oxide scale formed during steel production. It is not a coating and does not provide long-term corrosion protection.

5. Can large diameter black square tubes be used outdoors?

Yes, but additional corrosion protection is required. Outdoor applications normally require surface cleaning followed by painting, powder coating, or hot dip galvanizing.

6. What is the difference between large black square tubes and H beams?

Large rectangular tubes provide better torsional resistance because of their closed section, while H beams are often preferred for long-span bending applications.

7. Can customized sizes be produced?

Yes. Manufacturers can supply customized dimensions, wall thicknesses, lengths, and material grades according to engineering drawings.

8. What quality documents are available?

Qualified suppliers can provide material certificates, dimensional inspection reports, and welding quality inspection records according to project requirements.
