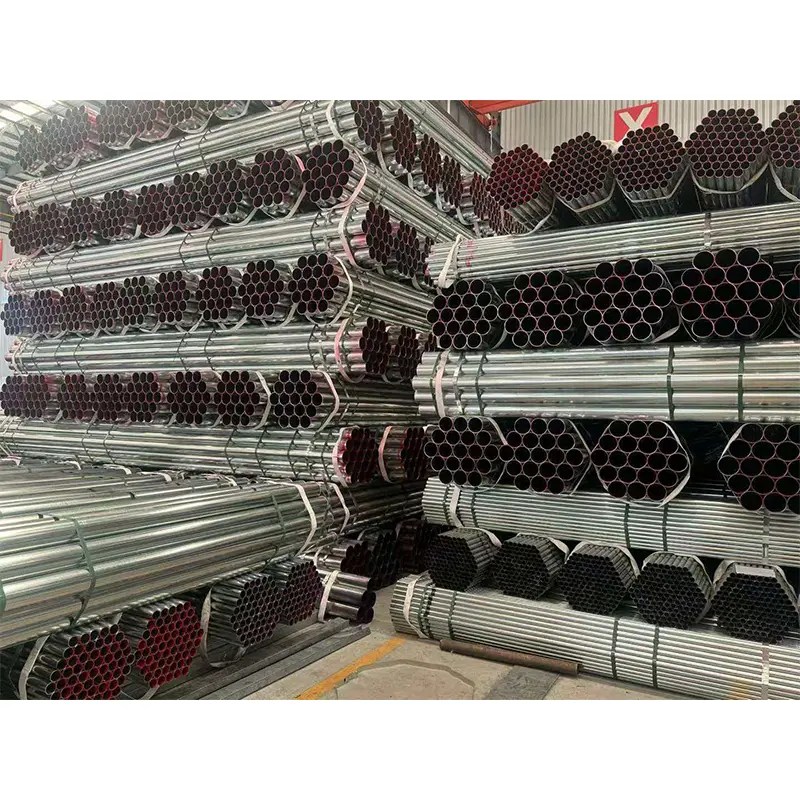

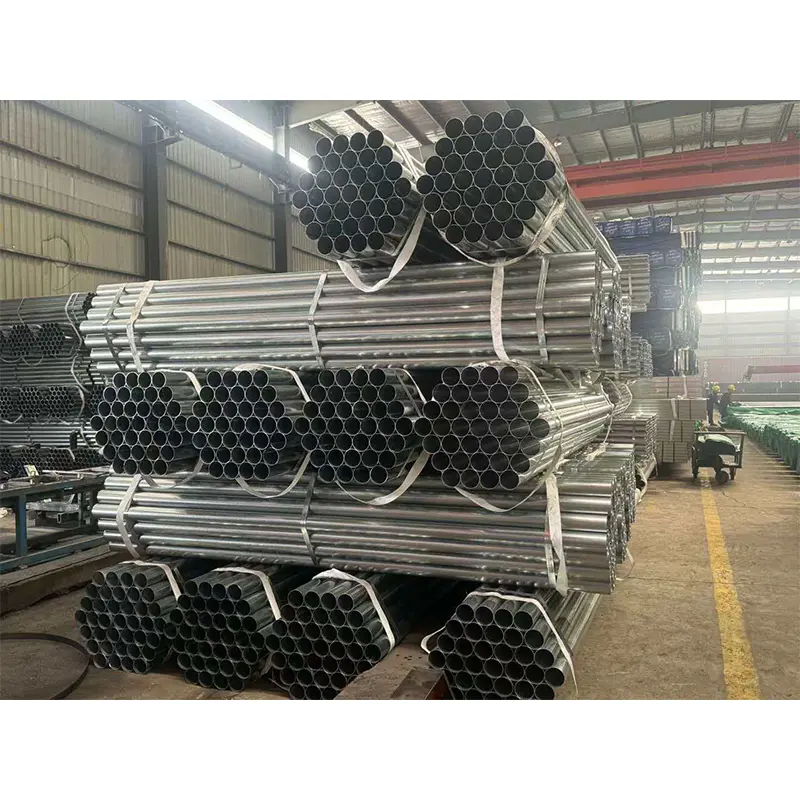

Large Diameter Hot Dip Galvanized Round Steel Pipe

ZHONGTIAN is a professional steel pipe manufacturer and supplier in China, providing customized Large Diameter Hot Dip Galvanized Round Steel Pipe solutions for different engineering requirements. Through strict control of raw materials, production processes, dimensional accuracy, and galvanized coating quality, our products are widely used in infrastructure projects, structural applications, and fluid transportation systems.

Compared with ordinary black steel pipes, galvanized round steel pipes offer significantly improved corrosion resistance and longer service life, making them suitable for outdoor environments, underground applications, and projects requiring reduced maintenance costs.

Product Features and Manufacturing Process

1. Raw Material Selection and Steel Grades

Large Diameter Hot Dip Galvanized Round Steel Pipes are mainly produced from carbon steel pipes with Q235B and Q355B grades. Q235B is widely used for general structural applications and low-pressure fluid transportation because it provides good weldability, stable mechanical performance, and economical cost.

For projects requiring higher load capacity, stronger impact resistance, or improved structural stability, Q355B low-alloy steel is commonly selected. In special pressure-bearing applications, seamless steel pipe materials such as 20# steel can also be used according to project requirements.

2. Pipe Forming and Base Pipe Production

The production process begins with steel coils or steel billets that are processed into round steel pipes through welding or seamless manufacturing methods. Large diameter pipes are commonly produced through longitudinal welding technology because it provides high production efficiency, accurate dimensions, and stable welding quality.

After forming, the pipes undergo welding inspection, straightening, size adjustment, and surface treatment to ensure that the finished products meet engineering requirements.

3. Hot Dip Galvanizing Treatment

The hot dip galvanizing process includes surface cleaning, acid pickling, flux treatment, zinc immersion, cooling, and inspection. During galvanizing, the steel pipe is immersed into molten zinc at approximately 450℃, creating a metallurgical zinc-iron alloy layer and a pure zinc protective layer.

This coating structure provides strong adhesion and long-term corrosion protection. The zinc layer effectively protects the steel substrate from moisture, oxygen, and chemical corrosion, making the pipe suitable for harsh outdoor environments.

Technical Specifications

1. Size Range and Dimensions

ZHONGTIAN Large Diameter Hot Dip Galvanized Round Steel Pipes are available in various sizes to meet different engineering applications. Common diameters include DN100, DN150, DN200, DN250, DN300, DN400, and DN600, with outer diameters generally ranging from 114mm to 610mm.

The standard wall thickness range is approximately 3.0mm to 12.0mm. Pipe lengths are normally supplied in 6m, 9m, or 12m sections, while customized lengths can be manufactured according to project drawings and transportation requirements.

2. Mechanical Performance

The mechanical properties depend on the selected steel grade. Q235B steel provides a yield strength of ≥235MPa and tensile strength of approximately 370–500MPa, offering a good balance between strength, toughness, and processing performance.

Q355B steel provides higher strength with a yield strength of ≥355MPa, making it suitable for heavy-duty structural supports, industrial equipment frames, and projects requiring higher load-bearing capacity.

3. Galvanized Coating Quality

The galvanized coating thickness directly affects corrosion resistance and service life. According to project requirements, different zinc coating thicknesses can be supplied for standard, industrial, and harsh environmental applications.

A high-quality galvanized surface should be uniform and continuous, without defects such as peeling, cracks, exposed steel areas, or uneven coating. Properly galvanized pipes can provide decades of protection under suitable environmental conditions.

Main Applications

1. Municipal Engineering Projects

Large diameter galvanized round steel pipes are widely used in municipal water supply systems, drainage networks, urban infrastructure, and public construction projects. Their large flow capacity and corrosion resistance make them suitable for long-distance pipeline applications.

2. Fire Protection and Industrial Pipelines

In commercial buildings, warehouses, factories, and industrial facilities, these pipes are commonly used for fire sprinkler systems, water supply pipelines, and industrial fluid transportation. Their stable strength and reliable corrosion protection help maintain long-term system operation.

3. Structural Construction Applications

Due to their excellent load-bearing capability, galvanized steel pipes are used in structural columns, outdoor frameworks, equipment supports, bridge components, and other engineering structures exposed to weather conditions.

4. Agricultural and Energy Projects

These pipes are also suitable for agricultural irrigation systems, water transfer projects, solar mounting structures, and other outdoor installations where corrosion resistance and durability are important factors.

Product Advantages

1. Excellent Corrosion Resistance

The hot dip galvanized coating creates a protective barrier between the steel surface and the external environment. Compared with untreated black steel pipes, galvanized pipes provide significantly better resistance against moisture, oxidation, and atmospheric corrosion.

2. Long Service Life and Lower Maintenance

Because of the durable zinc coating, galvanized round steel pipes require less maintenance compared with painted steel pipes. This helps reduce long-term operating costs, especially for outdoor and underground projects.

3. Strong Mechanical Performance

The combination of high-strength steel and galvanized protection allows these pipes to maintain structural stability under different loads, making them suitable for both pipeline systems and supporting structures.

4. Flexible Connection Methods

Depending on project requirements, galvanized steel pipes can be connected through welding, flanges, grooves, or threaded connections. This flexibility allows efficient installation in different engineering environments.

Selection Guide

1. Material Selection

For ordinary water supply, structural supports, and general engineering projects, Q235B is usually sufficient. For heavy structures, industrial equipment supports, or projects requiring higher strength, Q355B is recommended.

2. Wall Thickness Selection

Pipe thickness should be selected according to operating pressure, structural load, and safety requirements. Large engineering projects should confirm actual thickness tolerance and request material certificates before purchase.

3. Galvanizing Quality Inspection

When selecting galvanized pipes, customers should check coating uniformity, zinc thickness, surface condition, and inspection documents. Pipes used in coastal areas, industrial environments, or humid conditions usually require higher coating protection.

Why Choose ZHONGTIAN

ZHONGTIAN provides professional steel pipe manufacturing and supply services for global customers. With experience in steel production, pipe processing, and surface treatment, we offer customized solutions covering pipe dimensions, material grades, coating requirements, and delivery specifications.

Our production process follows strict quality control procedures, including material inspection, dimensional measurement, welding inspection, and galvanized coating testing. By combining manufacturing capability with reliable supply service, ZHONGTIAN supports construction companies, engineering contractors, and industrial customers worldwide.

FAQ

Q1: What is considered a large diameter galvanized round steel pipe?

Large diameter galvanized round steel pipes generally refer to galvanized pipes with diameters of DN100 or above. Common engineering sizes include DN100, DN150, DN200, DN300, and larger specifications depending on project requirements.

Q2: Are large diameter galvanized pipes welded or seamless?

Most large diameter galvanized pipes are produced using welded steel pipes because of their high efficiency and cost advantages. For special applications requiring higher pressure resistance, seamless steel pipes can also be selected.

Q3: What materials are commonly used?

Q235B is the most commonly used material for general applications. Q355B is selected for heavy-load structures and projects requiring higher mechanical strength.

Q4: What standards do galvanized round steel pipes follow?

The pipe body generally follows GB/T 3091 standards, while the hot dip galvanizing process follows GB/T 13912 requirements. Export projects may also follow ASTM or EN standards according to customer specifications.

Q5: What is the difference between galvanized pipe and black steel pipe?

The main difference is corrosion protection. Black steel pipes have no zinc coating and require additional painting or maintenance, while hot dip galvanized pipes provide longer corrosion resistance and lower maintenance requirements.
