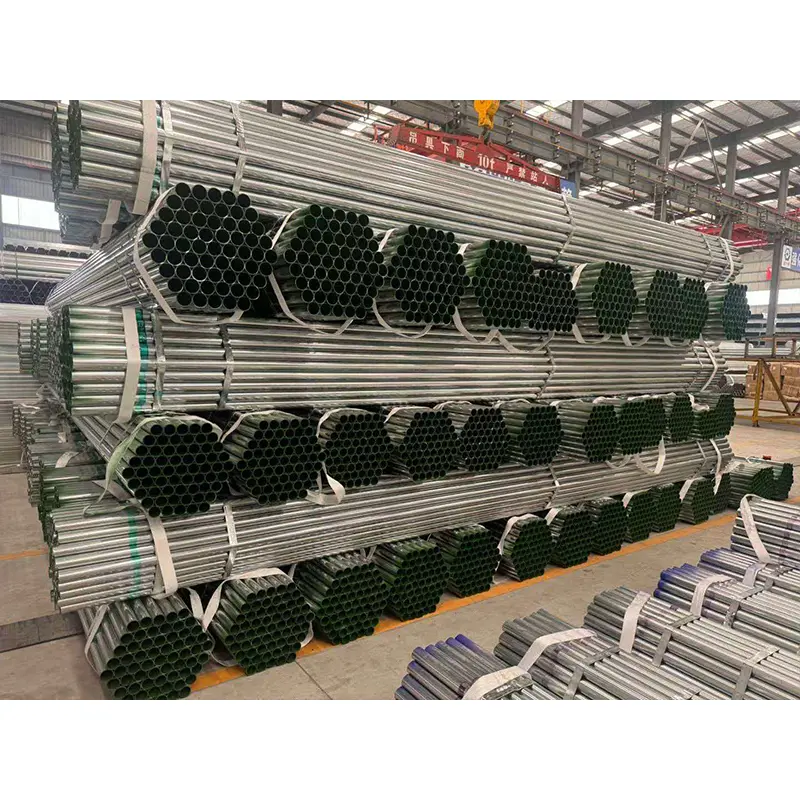

Pre Galvanized Round Steel Pipe

Pre Galvanized Round Steel Pipe is produced by forming and welding galvanized steel strips into round tubes. Unlike hot dip galvanized pipes that are galvanized after pipe production, this product uses pre-coated galvanized steel strips as raw material, meaning the zinc coating is applied before tube forming.

The manufacturing process includes galvanized strip preparation, roll forming, high-frequency ERW welding, weld bead removal, straightening, cutting, inspection, and packaging.

This production method provides excellent dimensional accuracy, smooth surface appearance, and high production efficiency. Because the welding process may affect the zinc coating around the weld area, additional zinc repair treatment is recommended after welding for outdoor applications.

Material and Manufacturing Standards

Pre galvanized round steel pipes are mainly produced from low carbon steel materials with good weldability and forming performance.

Q235B is the most commonly used material because it provides a good balance between strength, ductility, and cost. SPHC galvanized strips are suitable for lightweight applications requiring good forming performance, while Q355B can be selected for applications requiring higher structural strength.

The product is generally manufactured according to welded steel pipe standards and galvanized strip requirements.

Technical Specifications

Compared with traditional black steel pipes, pre galvanized pipes have more stable dimensions and better surface quality, making them suitable for projects where appearance and installation accuracy are important.

Zinc Coating Performance and Corrosion Protection

The zinc coating of pre galvanized round steel pipes is usually thinner than hot dip galvanized pipes. The coating thickness is generally around 20–40μm, providing basic corrosion resistance for indoor and mild outdoor environments.

The smooth zinc surface gives the pipe a clean silver-gray appearance and reduces the need for additional painting in decorative applications.

For welding operations, the damaged zinc area should be repaired with zinc spray or anti-corrosion coating to improve long-term protection.

Mechanical Properties

The typical mechanical properties of Q235B pre galvanized round steel pipe are shown below.

The pipe provides sufficient strength for lightweight structures, supporting frames, and low-pressure applications. However, it is not recommended for high-pressure pipelines or heavy corrosion environments.

Main Advantages

1. Cost-Effective Solution

Because the galvanized strip is continuously produced before pipe forming, the manufacturing process is efficient and suitable for large-volume production. The cost is generally lower than hot dip galvanized pipes of the same size.

2. Accurate Dimensions

The ERW forming process provides good roundness, consistent wall thickness, and stable dimensions, which improves installation efficiency in construction and fabrication projects.

3. Smooth Surface Appearance

The pre galvanized surface has a uniform metallic appearance, making it suitable for visible structures such as decorative frames, furniture structures, and architectural applications.

4. Lightweight and Easy Installation

The relatively thin wall design reduces pipe weight, making transportation, cutting, and installation easier while reducing labor requirements.

Main Applications

1. Construction Decoration and Architectural Structures

Pre galvanized round pipes are widely used for indoor railings, decorative frames, ceiling supports, curtain wall structures, and metal furniture because of their clean appearance and easy processing.

2. Electrical Protection Systems

The pipe is commonly used as cable protection conduit, equipment support tubing, and wiring protection structures in commercial buildings and industrial facilities.

3. Greenhouse and Agricultural Structures

Due to its lightweight design and basic corrosion resistance, pre galvanized pipe is frequently used for greenhouse frames, irrigation supports, and agricultural structures.

4. Light Steel Structures

It is suitable for temporary structures, advertising frames, fitness equipment, storage racks, and other applications where moderate strength and economical material selection are required.

Overseas Application Cases

1. Greenhouse Structure Project – Spain (2023)

Project Location: Almería, Spain Project Time: 2023 Application: Agricultural greenhouse support system

A vegetable greenhouse company in southern Spain required lightweight steel tubes for greenhouse frame reinforcement. The project needed materials that were easy to install while providing basic resistance against humid agricultural environments.

ZHONGTIAN Solution:

The pre galvanized surface reduced the need for additional coating, while the lightweight structure improved installation efficiency.

Project Result:

The greenhouse construction period was shortened, and the galvanized surface provided sufficient protection for long-term agricultural use.

2. Commercial Building Cable Support Project – UAE (2024)

Project Location: Dubai, UAE Project Time: 2024 Application: Electrical conduit and support framework

A commercial building project required economical metal tubes for cable protection and supporting structures in indoor areas.

ZHONGTIAN Solution:

The accurate dimensions allowed fast installation with standard fittings, while the smooth zinc surface matched the building’s clean interior requirements.

Project Result:

The project achieved efficient installation and reduced material costs compared with thicker galvanized pipe solutions.

3. Decorative Metal Frame Project – Germany (2022)

Project Location: Berlin, Germany Project Time: 2022 Application: Indoor architectural metal structures

A German interior design company selected pre galvanized round steel pipes for furniture frames and decorative structures requiring a uniform metallic appearance.

ZHONGTIAN Solution:

The smooth galvanized finish reduced surface treatment requirements and improved production efficiency.

Project Result:

The manufacturer achieved a stable supply of lightweight steel tubing with consistent appearance and processing performance.

Comparison with Hot Dip Galvanized Round Steel Pipe

Selection Guide

When choosing pre galvanized round steel pipe, customers should consider application environment, load requirements, and corrosion conditions.

For indoor structures, decoration, cable protection, and greenhouse projects, pre galvanized pipe provides an economical and practical solution.

For outdoor environments, underground pipelines, fire systems, and chemical applications, hot dip galvanized pipes with thicker zinc coating are usually more suitable.

FAQ

Pre Galvanized Round Steel Pipe FAQ

1. What is pre galvanized round steel pipe?

Pre galvanized round steel pipe is produced from galvanized steel strips that are formed and welded into tubes. The zinc coating is applied before pipe manufacturing.

2. What is the difference between pre galvanized pipe and hot dip galvanized pipe?

Pre galvanized pipe has a thinner zinc coating and lower cost, making it suitable for indoor and lightweight applications. Hot dip galvanized pipe has thicker zinc protection and is designed for outdoor and demanding environments.

3. Can pre galvanized pipe be welded?

Yes. However, welding may damage the zinc coating around the weld area, so zinc repair treatment is recommended after welding.

4. What materials are commonly used?

Q235B and SPHC are the most common materials. Q355B can be selected for higher strength requirements.

5. Is it suitable for outdoor use?

It can be used outdoors in mild environments, but for long-term exposure to rain, humidity, or corrosive conditions, hot dip galvanized steel pipe is recommended.
