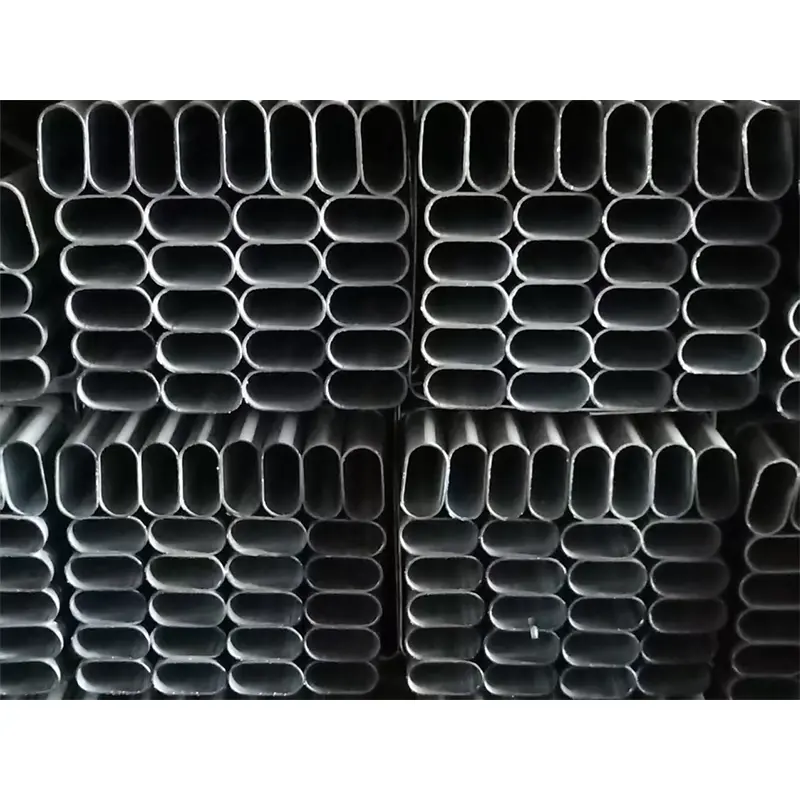

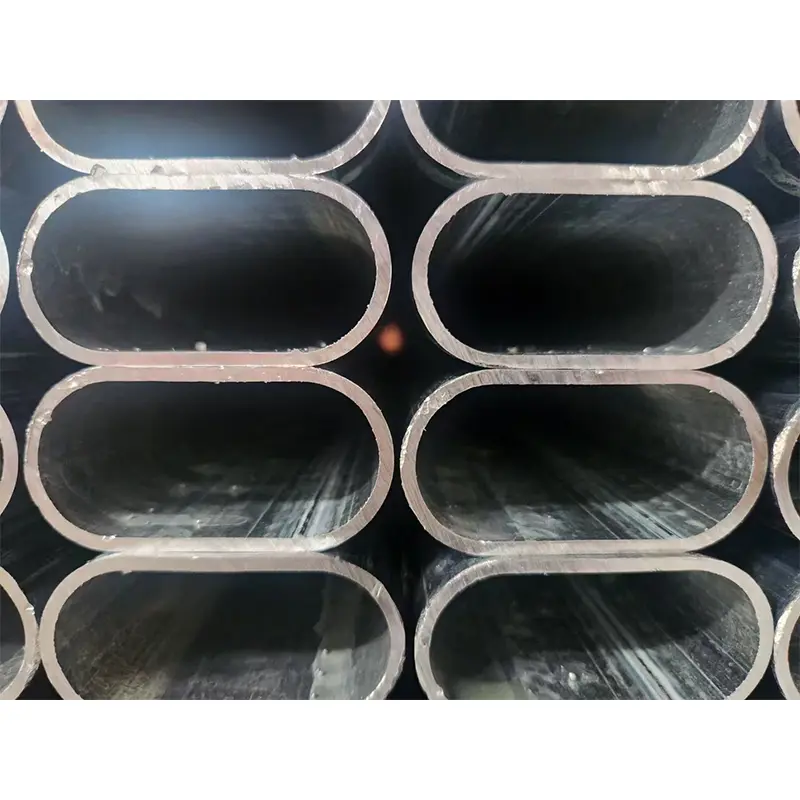

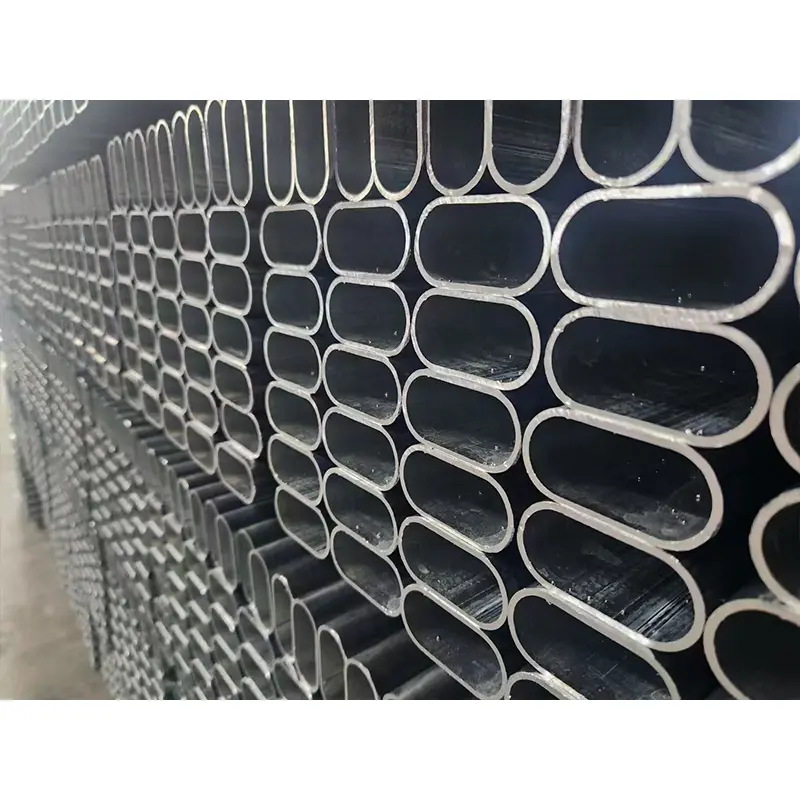

Small Diameter Hot Dip Galvanized Oval Steel Pipe

Small Diameter Hot Dip Galvanized Oval Steel Pipe combines a unique oval profile with high structural strength and efficient material utilization. Compared with traditional round steel pipes, its oval cross-section provides a distinctive appearance and better adaptability for applications requiring directional strength and space-saving designs. With a maximum section size of 80mm × 40mm, it is widely used in greenhouse frameworks, safety railings, furniture structures, mechanical components, and architectural decoration.

As a professional steel pipe manufacturer in China, ZHONGTIAN provides customized galvanized oval steel pipe solutions with different dimensions, wall thicknesses, lengths, and surface treatments to meet diverse requirements from global customers.

Product Specifications

Small diameter hot dip galvanized oval steel pipe is produced using high-quality carbon steel materials, including Q195, Q215, Q235B, and Q345B. The oval tube design provides a combination of lightweight structure and reliable mechanical performance, making it suitable for various fabrication and construction requirements.

The available oval section sizes include 20×10mm, 25×15mm, 30×15mm, 30×20mm, 40×20mm, 40×25mm, 50×25mm, 60×30mm, 70×35mm, and 80×40mm. The wall thickness range is 0.8–3.0mm, with commonly used thicknesses including 1.0mm, 1.2mm, 1.5mm, and 2.0mm.

The standard length is 6 meters, while customized lengths from 1 to 12 meters can be supplied according to project requirements. The surface adopts hot dip galvanizing treatment with a zinc coating thickness of ≥40μm, providing strong resistance against rust and outdoor corrosion.

The product can be manufactured according to Chinese standards including GB/T 6728-2017, GB/T 13912-2020, and GB/T 3094-2000. For international projects, production can also be customized according to customer requirements based on ASTM, EN, or JIS related specifications.

Manufacturing Process

ZHONGTIAN applies a controlled manufacturing process to ensure consistent quality and reliable performance of each galvanized oval steel pipe.

The production starts with carefully selected steel strips, which are processed through precision cold forming equipment to create the required oval shape. The forming process ensures accurate dimensions and stable tube geometry.

After forming, the steel pipe undergoes high-frequency welding to achieve a strong and uniform welded structure. The weld area is then treated to remove surface imperfections and improve the overall appearance.

The formed oval steel pipe is then processed through hot dip galvanizing. During this process, the pipe is immersed in approximately 450℃ molten zinc, allowing a protective zinc layer to cover the entire surface, including the welded area.

After galvanizing, products undergo passivation treatment, dimensional inspection, coating inspection, and final packaging. The production method of forming before galvanizing ensures better coating integrity and longer service life.

Product Features

1.Lightweight Structure and High Strength

The oval cross-section provides excellent bending resistance and structural stability. Compared with traditional round steel pipes, the optimized profile can reduce unnecessary material usage while maintaining sufficient mechanical strength, helping reduce transportation and installation costs.

2.Excellent Corrosion Resistance

The hot dip galvanized coating creates a dense protective barrier on the steel surface, preventing corrosion caused by moisture, rain, and outdoor exposure. This makes the product suitable for long-term outdoor applications with reduced maintenance requirements.

3.Easy Fabrication and Processing

Small diameter galvanized oval steel pipe supports various processing methods, including cutting, drilling, welding, and bending. This flexibility allows customers to achieve customized designs for different applications.

4.Attractive Appearance

The smooth oval profile provides a modern and clean appearance compared with conventional round tubes. The uniform galvanized surface allows the product to be directly used in visible structures where both performance and appearance are important.

Applications

1. Agricultural Applications

Small diameter hot dip galvanized oval steel pipe is widely used in greenhouse frames, agricultural support structures, and livestock facilities. Its lightweight design simplifies installation, while the galvanized surface provides reliable protection against outdoor environmental conditions.

The oval structure also helps reduce wind resistance in greenhouse applications, improving structural adaptability in outdoor farming environments.

2. Construction and Public Facilities

The product is commonly applied in road guardrails, pedestrian barriers, landscape fences, balcony railings, and stair handrails. The combination of corrosion resistance, structural strength, and attractive appearance makes it suitable for both functional and decorative projects.

3. Furniture and Decorative Products

Due to its compact size and smooth surface, galvanized oval steel pipe is widely used for table frames, chair legs, bed structures, display racks, and decorative furniture components.

The oval shape provides a modern design appearance while maintaining sufficient strength for daily use.

4. Industrial Equipment Components

The product can also be used in fitness equipment, agricultural machinery parts, conveyor structures, and other mechanical components requiring lightweight, corrosion-resistant, and easy-to-process steel tubes.

Project Experience

1. Greenhouse Structure Project

ZHONGTIAN galvanized oval steel pipes have been supplied for greenhouse frame projects requiring lightweight structures and long-term outdoor durability.

In these applications, the oval tube design helps reduce wind resistance while maintaining structural strength. The hot dip galvanized surface provides reliable corrosion protection under continuous exposure to sunlight, rain, and humidity, reducing maintenance requirements during long-term operation.

2. Safety Railing and Public Facility Project

For outdoor railing and protection projects, ZHONGTIAN small diameter galvanized oval steel pipes provide a balance between safety performance and visual appearance.

Compared with ordinary round tubes, the oval profile creates a more refined appearance for visible structures. Customized dimensions and lengths allow customers to achieve efficient installation and consistent project design.

3. Furniture and Equipment Manufacturing Project

ZHONGTIAN oval steel pipes are also used in furniture manufacturing and equipment components where lightweight structure and surface quality are required.

Through stable production control and customized manufacturing capability, ZHONGTIAN supports OEM customers with different requirements for dimensions, processing, and delivery.

Oval Steel Pipe Compared with Round Steel Pipe

1. Structural Performance Comparison

Oval steel pipe and round steel pipe have different structural characteristics due to their cross-sectional designs. The oval profile provides directional strength advantages and better adaptability for applications requiring controlled bending performance.

For projects where load direction, appearance, and space utilization are important, oval steel pipe can provide a more suitable solution compared with standard round tubing.

2. Weight and Material Efficiency

Compared with traditional round pipes, oval steel pipes can achieve optimized material distribution in certain applications. This allows customers to reduce unnecessary weight while maintaining required strength.

The lightweight advantage helps reduce transportation costs and simplifies installation, especially in large-volume projects such as greenhouse structures and fabricated products.

3. Appearance and Application Advantages

Round steel pipes are commonly selected for general structural applications, while oval steel pipes provide additional design value because of their unique appearance.

The smooth oval surface is particularly suitable for furniture, railings, decorative structures, and applications where the product remains visible after installation.

International Standards and Quality Assurance

1. Manufacturing Standards

ZHONGTIAN follows strict production management procedures during the manufacturing of galvanized oval steel pipes.

Products can be produced according to Chinese standards including GB/T 6728-2017 and GB/T 13912-2020. For overseas customers, production requirements can be adjusted according to international project specifications, including ASTM, EN, and JIS standards.

This flexible manufacturing capability allows ZHONGTIAN to serve customers from different markets with various technical requirements.

2. Quality Inspection System

Quality control is implemented throughout the entire production process, including raw material inspection, dimensional measurement, welding inspection, galvanizing thickness testing, mechanical performance testing, and final product verification.

Each batch is inspected to ensure stable dimensions, uniform coating quality, and reliable mechanical performance before shipment.

Quality Control

1. Dimension Inspection

ZHONGTIAN controls product dimensions through precision inspection procedures. The oval size tolerance is controlled within ≤±0.5%, wall thickness tolerance is maintained at ±0.1mm, and straightness is controlled within ≤1.5mm/m.

These controls ensure consistent product quality and easier installation for customers.

2. Galvanizing Quality Inspection

The galvanized coating thickness, adhesion, and surface condition are carefully inspected during production. Products are checked to ensure the zinc layer is complete, uniform, and free from defects such as missing coating or peeling.

3. Mechanical Performance Testing

Mechanical properties are verified through professional testing procedures. The typical yield strength reaches ≥235MPa, while tensile strength is controlled between 370–500MPa.

Flattening and bending tests are also performed to ensure the pipes maintain structural integrity during fabrication and application.

Why Choose ZHONGTIAN

1. Professional Steel Pipe Manufacturing Capability

ZHONGTIAN is a professional steel pipe manufacturer specializing in galvanized steel pipes, including round pipes, square tubes, rectangular tubes, and oval steel pipes.

With complete production processes covering forming, welding, galvanizing, inspection, and customized manufacturing, ZHONGTIAN provides reliable steel pipe solutions for construction, agriculture, industrial equipment, and furniture industries.

2. Customized Production Solutions

ZHONGTIAN supports customized oval steel pipe production according to customer drawings and application requirements.

Customization options include section dimensions, wall thickness, length, material grade, surface treatment, and packaging methods.

3. Stable Quality and Reliable Delivery

Through professional production equipment and strict quality management procedures, ZHONGTIAN ensures consistent product performance and reliable delivery schedules for global customers.

FAQ

1. What is considered a small diameter oval steel pipe?

Small diameter oval steel pipe generally refers to oval tubes with a major axis of ≤80mm and a minor axis of ≤40mm. Common specifications include 20×10mm, 30×20mm, 40×20mm, 50×25mm, and 80×40mm.

2. What lengths can be customized?

The standard length is 6 meters, while customized lengths from 1 to 12 meters can be produced according to customer requirements.

3. What wall thickness options are available?

The available wall thickness range is 0.8–3.0mm. Common options include 1.0mm, 1.2mm, 1.5mm, and 2.0mm for different applications.

4. Are galvanized oval steel pipes suitable for outdoor use?

Yes. The hot dip galvanized coating provides excellent corrosion resistance, making them suitable for outdoor applications such as greenhouses, fences, railings, and structural supports.

5. Can ZHONGTIAN provide customized oval steel pipes?

Yes. ZHONGTIAN can customize dimensions, thickness, length, material grade, surface treatment, and packaging according to customer drawings and project requirements.
