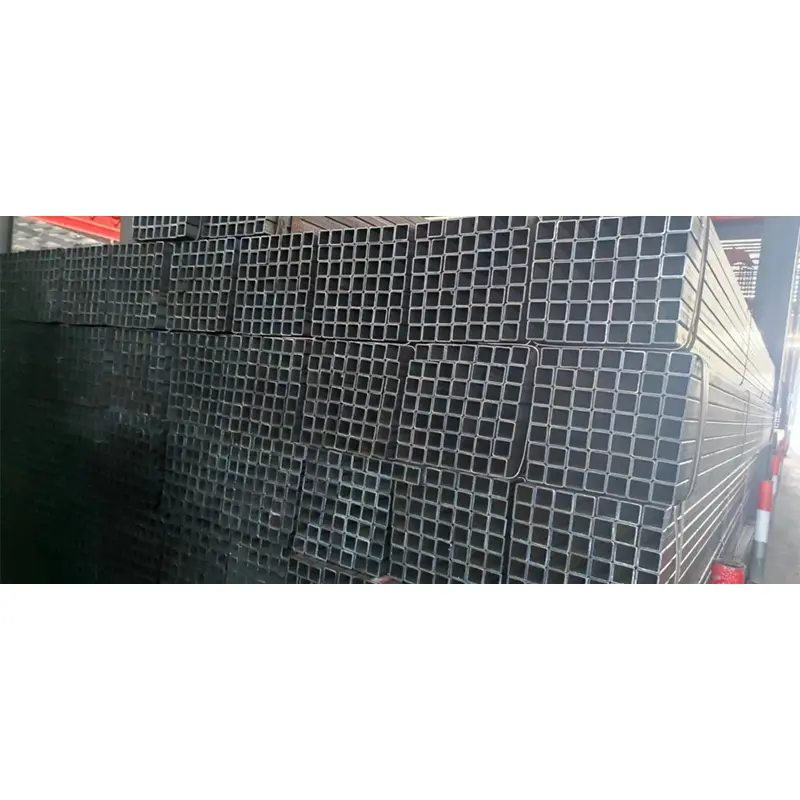

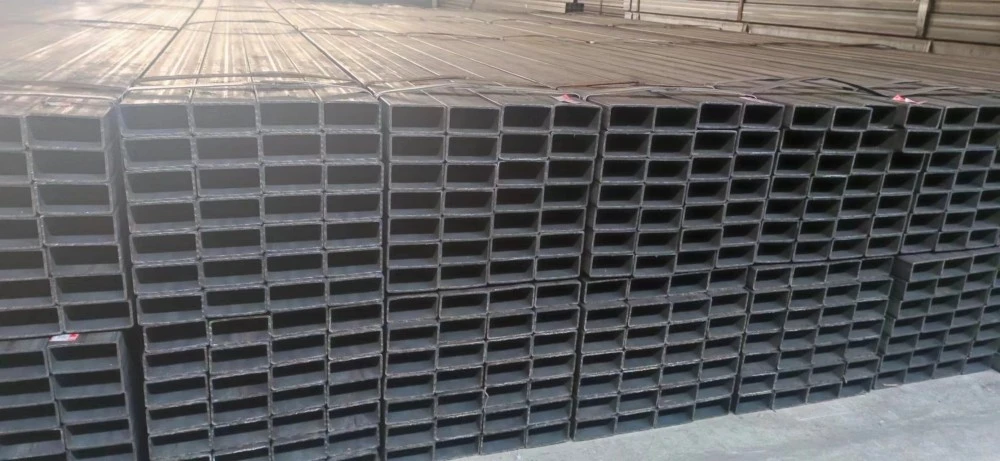

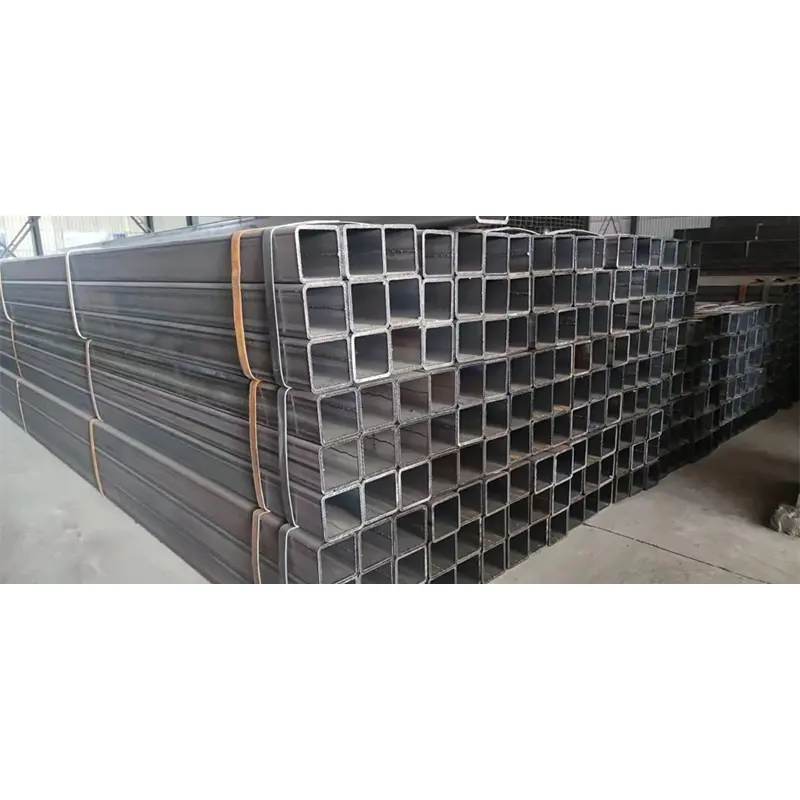

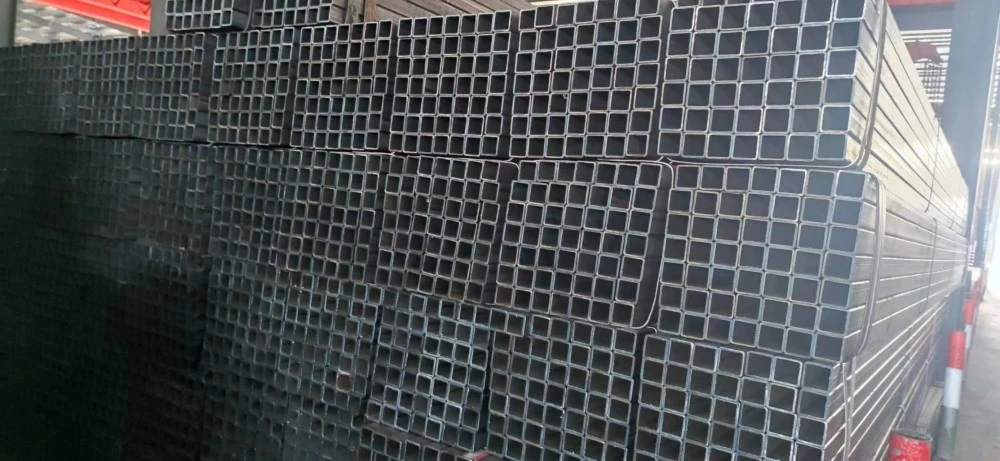

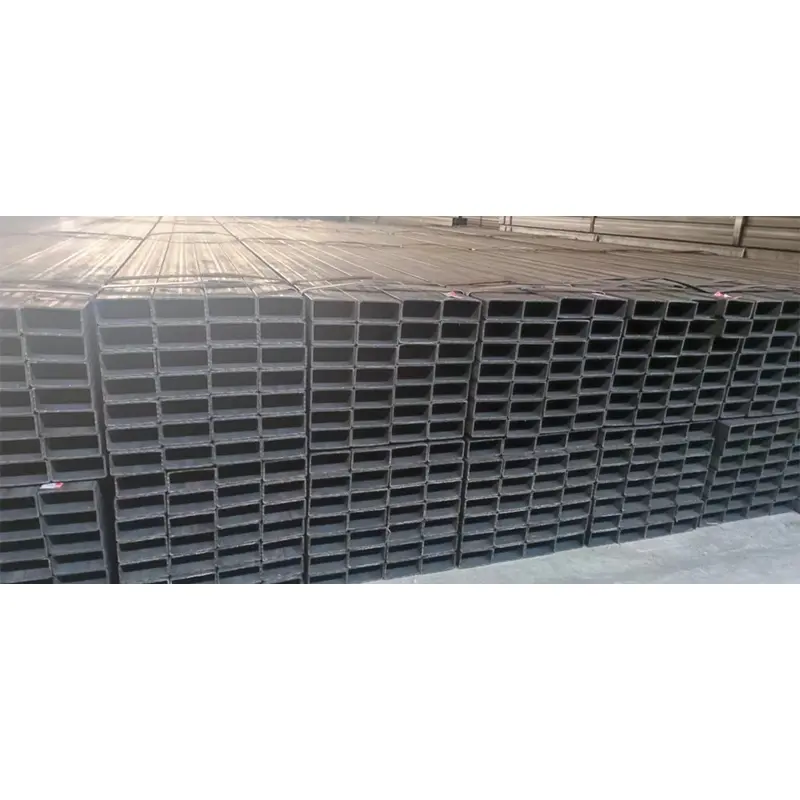

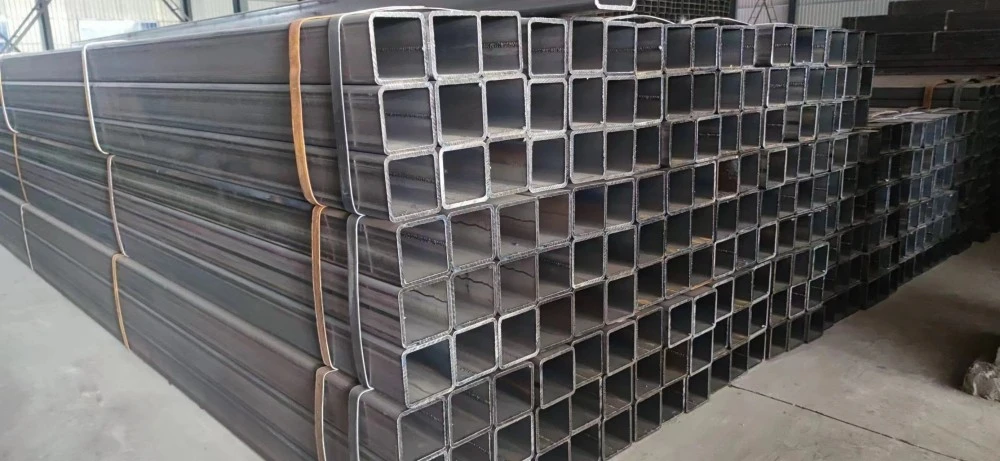

Thick Wall Black Rectangular and Square Steel Tube

ZHONGTIAN Thick Wall Black Rectangular and Square Steel Tube belongs to the heavy-duty carbon steel structural tubing category, its most significant feature being the ultra-high strength resulting from its wall thickness (typically ≥4mm). Utilizing advanced high-frequency welding (HFW) or seamless forming technology, it ensures high dimensional accuracy and uniform, reliable welds, meeting stringent industrial load-bearing requirements.

Product Specifications

1. Cross Section Design

The rectangular and square hollow structure provides a high moment of inertia compared with traditional round steel pipes, allowing better resistance against bending, twisting, and compression. The closed section design also improves structural stability while reducing overall steel consumption.

2. Heavy Wall Construction

The wall thickness of thick wall black rectangular and square steel tubes normally starts from 4mm and can reach more than 40mm for special applications. The increased wall thickness improves load capacity, impact resistance, and deformation resistance, making the product suitable for heavy-duty structures.

3. Surface Condition

The tube surface retains the black iron oxide layer naturally formed during steel production. The untreated surface allows customers to select different finishing methods, including painting, powder coating, or hot dip galvanizing according to environmental requirements.

Technical Data

Material Selection and Engineering Performance

Carbon Steel Options

1. Q235B Structural Steel

Q235B is the most commonly selected material for thick wall black rectangular and square tubes. It provides balanced strength, weldability, and cost efficiency, making it suitable for general steel structures, equipment frames, and industrial supports.

2. Q355B High Strength Steel

Q355B provides higher yield strength than standard carbon steel. It is mainly selected for large-span structures, heavy equipment frames, bridge support components, and applications where reducing structural weight while maintaining strength is important.

3. Special Steel Grades

For demanding applications such as precision machinery, hydraulic equipment, or high-load components, materials including 20#, 45#, and Q460 can be selected based on mechanical requirements.

Manufacturing Process

Production Technology

1. Welded Thick Wall Tube Production

Steel coils are leveled, cut, formed into square or rectangular sections, and welded through high-frequency resistance welding. After welding, the tube undergoes seam treatment, straightening, cutting, and inspection. This process provides stable dimensions and competitive production costs for most construction applications.

2. Seamless Heavy Duty Tube Production

Seamless tubes are produced through hot extrusion or cold drawing processes before being shaped into rectangular or square sections. Without welding seams, they offer superior pressure resistance and impact performance for specialized industrial applications.

Application Solutions

1.Heavy Steel Structure Projects

Thick wall black rectangular and square steel tubes are commonly used as columns, beams, roof supports, and structural frames in industrial buildings. Their high stiffness helps maintain stability under long-term loads.

2.Mechanical Equipment Manufacturing

The product is widely applied in machine bases, construction equipment frames, agricultural machinery structures, and transportation equipment because of its excellent machining and welding performance.

3.Infrastructure and Outdoor Structures

For bridges, roadside barriers, large advertising structures, and public facilities, thick wall square tubes provide reliable structural support and can be further galvanized or painted for outdoor protection.

International Application Cases

Steel Warehouse Structure Project – Poland (2022)

A logistics warehouse expansion project in Poland selected Q355B thick wall black rectangular steel tubes for the main support frames. The customer required high load capacity while controlling structural weight. The tubes were fabricated into columns and support beams, then coated on site with anti-corrosion paint after welding. The solution improved installation efficiency and reduced total structural steel consumption.

Mining Equipment Support Frame – Chile (2023)

A mining equipment manufacturer in Chile used Q355B thick wall square tubes for heavy equipment platforms and machine support structures. The project required strong vibration resistance and long service life under harsh working conditions. The selected thick wall hollow sections provided better rigidity compared with traditional welded angle steel structures.

Agricultural Greenhouse Framework – Australia (2021)

An agricultural company in Australia used thick wall black rectangular tubes for large greenhouse supporting structures. The tubes were processed locally through cutting and welding before being hot dip galvanized. The solution combined high structural strength with flexible secondary corrosion protection.

Advantages Compared with Other Steel Tubes

Purchasing Guide

Key Selection Factors

1. Choose Correct Wall Thickness

For equipment frames and heavy structures, thicker walls provide better deformation resistance. Engineers should select thickness according to actual loading conditions rather than only considering purchase price.

2. Confirm Material Grade

Q235B is suitable for normal structural applications, while Q355B should be selected for heavy loads, large spans, and projects requiring higher safety margins.

3. Check Manufacturing Quality

Before delivery, buyers should confirm dimensional tolerance, weld quality, material certificates, and ultrasonic inspection reports for critical projects.

FAQ

Thick Wall Black Rectangular and Square Steel Tube FAQ

1. What is the difference between thick wall black square tube and galvanized square tube?

Thick wall black square tube is supplied without zinc coating and keeps its original black oxide surface. It offers lower initial cost and allows customers to apply their own painting or galvanizing process. Galvanized square tubes provide better corrosion resistance directly after production and are more suitable for outdoor environments.

2. What wall thickness is considered thick wall square tubing?

In most markets, square and rectangular tubes with wall thickness of 4mm or above are classified as thick wall products. Heavy engineering applications commonly use 5mm to 30mm wall thickness.

3. Should I choose welded or seamless thick wall square tube?

Welded thick wall tubes are preferred for most construction and structural projects because of their cost advantage and stable supply. Seamless tubes are mainly used for special applications requiring higher pressure resistance and impact performance.

4. Can black rectangular steel tubes be used outdoors?

Yes, but additional corrosion protection is required. Outdoor applications usually require painting, powder coating, or hot dip galvanizing after fabrication to improve service life.

5. Why are thick wall square tubes popular in structural engineering?

Because their closed hollow section provides excellent bending and torsional resistance with relatively low material consumption. They offer a good balance between strength, weight, and fabrication efficiency.
