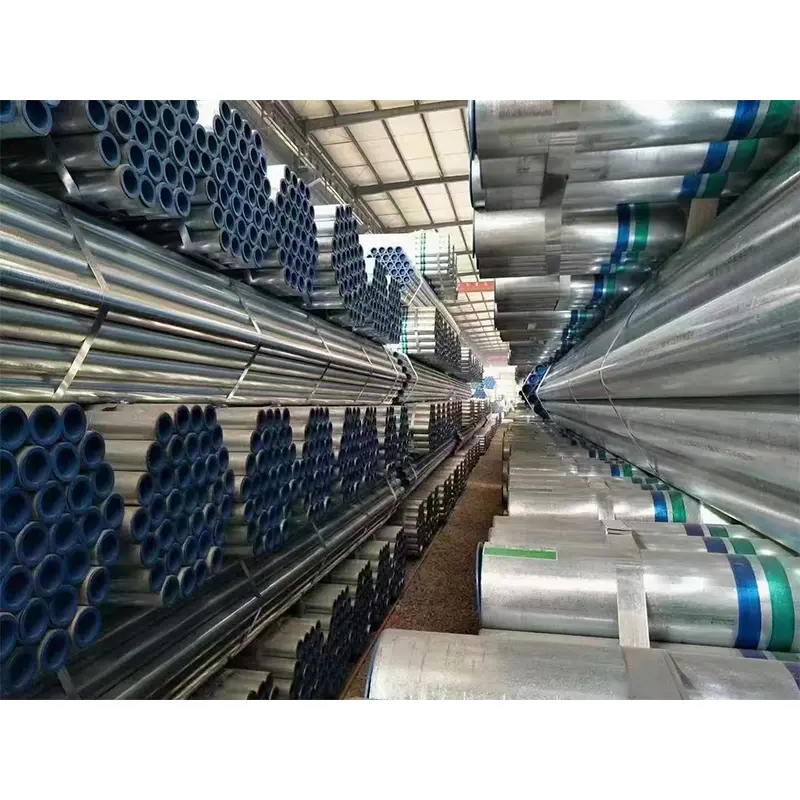

Thick Wall Hot Dip Galvanized Round Steel Pipe

Thick Wall Hot Dip Galvanized Round Steel Pipe is a carbon steel pipe with a wall thickness generally above 3mm. Compared with standard galvanized pipes, it provides higher load-bearing capacity, stronger impact resistance, and better dimensional stability.

The pipe is produced using ERW welded steel pipes or seamless steel pipes as the base material. After surface cleaning, flux treatment, and hot dip galvanizing at approximately 450℃, a zinc-iron alloy layer and pure zinc protective layer are formed on both internal and external surfaces.

This structure improves corrosion resistance in outdoor, humid, and industrial environments while maintaining the mechanical strength required for heavy-duty applications.

ZHONGTIAN manufactures thick wall galvanized steel pipes with customized sizes, steel grades, and surface treatments to meet different engineering requirements worldwide.

Material and Manufacturing Standards

1. Common Steel Grades

Q235B is the most commonly used material for general structural applications, fire protection pipelines, and municipal projects. It provides balanced strength, weldability, and cost efficiency.

Q355B is selected for projects requiring higher load capacity, improved impact resistance, or better performance under harsh environments. It is widely used in heavy structures, industrial equipment supports, and demanding engineering applications.

For special high-pressure or high-temperature applications, seamless steel pipe materials such as 20# steel can also be selected.

2. Production Process

The production process starts with high-quality carbon steel pipes. The pipes undergo surface cleaning, acid pickling, water washing, and flux treatment before entering the hot dip galvanizing bath.

During galvanizing, the pipe is immersed in molten zinc at around 440–460℃. The zinc reacts with the steel surface to create a metallurgical bonding layer, ensuring strong adhesion and long-term corrosion protection.

After cooling and inspection, each pipe is checked for zinc coating thickness, surface quality, dimensional accuracy, and mechanical performance before shipment.

Technical Specifications

Mechanical Performance

The thick wall structure improves bending resistance, compression strength, and impact resistance, making the pipe suitable for projects where safety and durability are critical.

Advantages of Thick Wall Galvanized Steel Pipe

1. High Load-Bearing Capacity

The increased wall thickness provides excellent rigidity and resistance against deformation. Compared with thin wall galvanized pipes, it performs better in heavy structures, pressure pipelines, and outdoor supporting systems.

2. Long-Term Corrosion Protection

The hot dip galvanized coating covers both internal and external surfaces. It provides long service life in humid environments, reducing maintenance requirements compared with untreated black steel pipes.

3. Reliable Connection Performance

The pipe supports multiple installation methods including welding, flange connection, grooved coupling, and threading, allowing flexible integration into different engineering systems.

4. Lower Lifetime Cost

Although the initial cost is higher than black steel pipes, the reduced maintenance requirement and longer service life make it more economical for long-term industrial projects.

Main Applications

1. Fire Protection Systems

Thick wall galvanized steel pipes are widely used for fire sprinkler systems, hydrant pipelines, and industrial fire water networks because of their strength and corrosion resistance.

2. Municipal Infrastructure

They are applied in urban water supply systems, drainage projects, pump stations, and underground pipeline networks where stable performance is required.

3. Industrial Facilities

Factories, power plants, chemical plants, and processing facilities use thick wall galvanized pipes for fluid transportation, equipment supports, and protection systems.

4. Heavy Steel Structures

The pipes are used as structural columns, equipment supports, bridge components, and outdoor frameworks requiring high mechanical strength.

Overseas Application Cases

1. Fire Protection Pipeline Upgrade Project – Australia (2023)

Project Location: Melbourne, Australia Project Time: 2023 Application: Industrial warehouse fire protection system

A logistics warehouse in Melbourne required replacement of aging carbon steel fire pipelines due to corrosion problems caused by high humidity and temperature changes.

Solution:

ZHONGTIAN supplied Thick Wall Hot Dip Galvanized Round Steel Pipe with:

The galvanized coating improved corrosion resistance, while the thick wall design ensured stable pressure performance for the fire sprinkler system.

Result:

The upgraded pipeline system reduced maintenance frequency and improved fire protection reliability for the warehouse operation.

2. Steel Structure Support Project – Germany (2024)

Project Location: Hamburg, Germany Project Time: 2024 Application: Outdoor industrial equipment support structure

A manufacturing facility needed corrosion-resistant structural tubing for outdoor equipment platforms.

Solution:

ZHONGTIAN supplied:

The thick wall pipe provided sufficient structural strength while the galvanized surface protected the steel from coastal humidity.

Result:

The support structure achieved stable operation in an outdoor industrial environment with reduced repainting requirements.

Selection Guide

When selecting Thick Wall Hot Dip Galvanized Round Steel Pipe, customers should consider operating pressure, environmental conditions, and structural requirements.

For general construction and fire protection systems, Q235B is usually sufficient. For heavy structures, outdoor supports, and higher load conditions, Q355B provides better performance.

Projects exposed to moisture, coastal environments, or chemical conditions should prioritize thicker zinc coatings and appropriate wall thickness.

FAQ

1. What is thick wall galvanized steel pipe?

Thick wall galvanized steel pipe refers to galvanized round steel pipe with a wall thickness generally above 3mm. It is designed for applications requiring higher strength, pressure resistance, and corrosion protection.

2. What materials are available?

The most common materials are Q235B and Q355B. Q235B is suitable for general engineering applications, while Q355B is preferred for heavy-duty structures and higher strength requirements.

3. What standards does it follow?

The pipe commonly follows GB/T 3091 for welded steel pipes, GB/T 8163 for seamless steel pipes, and GB/T 13912 for hot dip galvanizing requirements.

4. Can it be used outdoors?

Yes. The hot dip galvanized coating provides long-term corrosion protection, making it suitable for outdoor structures, municipal projects, and industrial environments.

5. What connection methods are available?

It can be connected through welding, flanges, grooved couplings, or threaded connections depending on project requirements.
