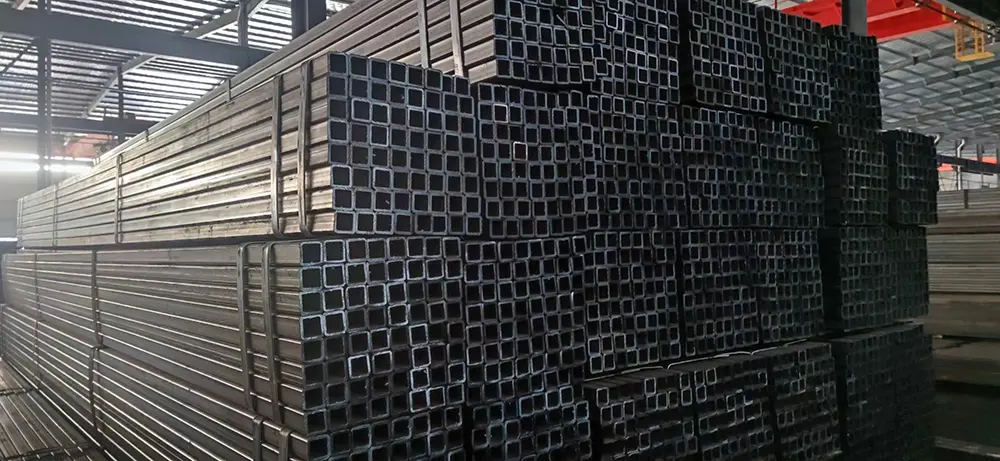

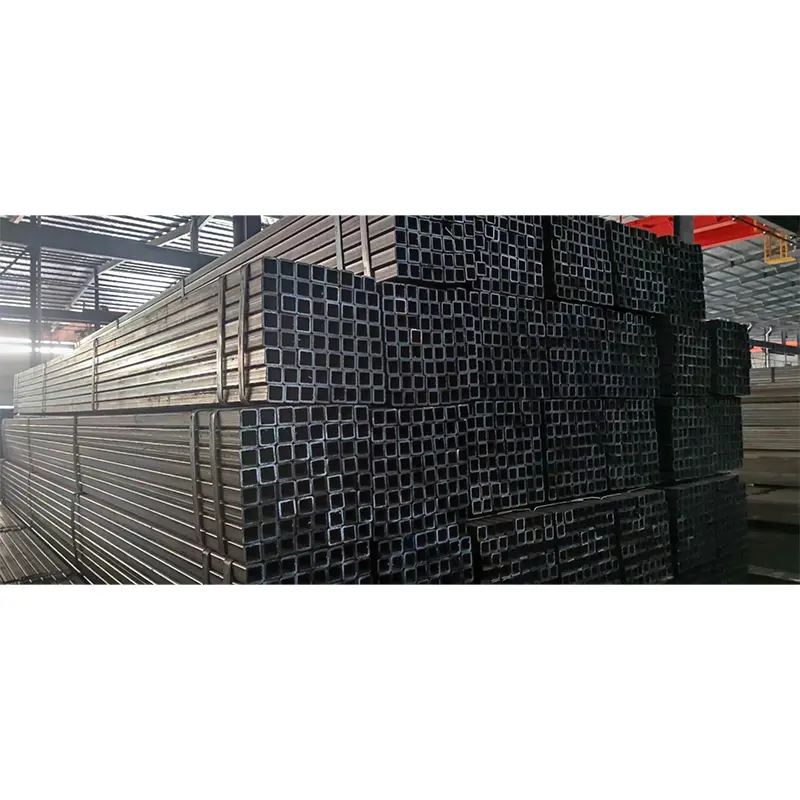

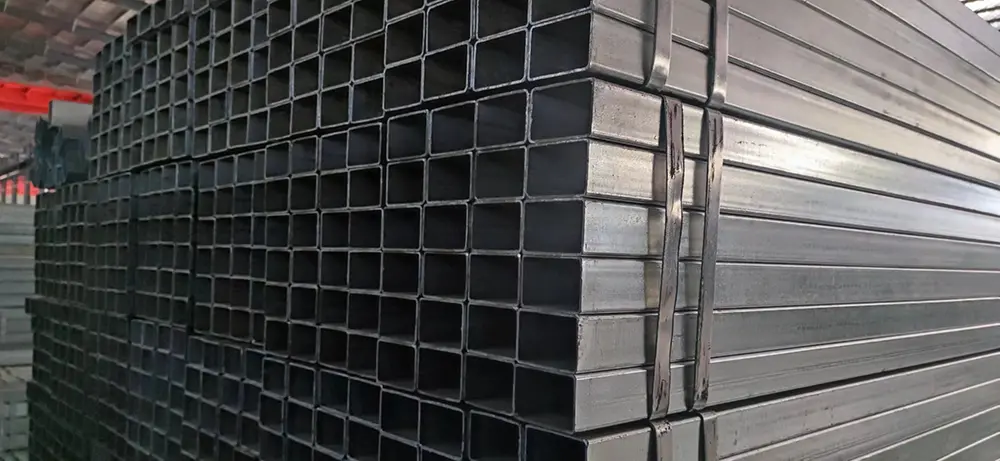

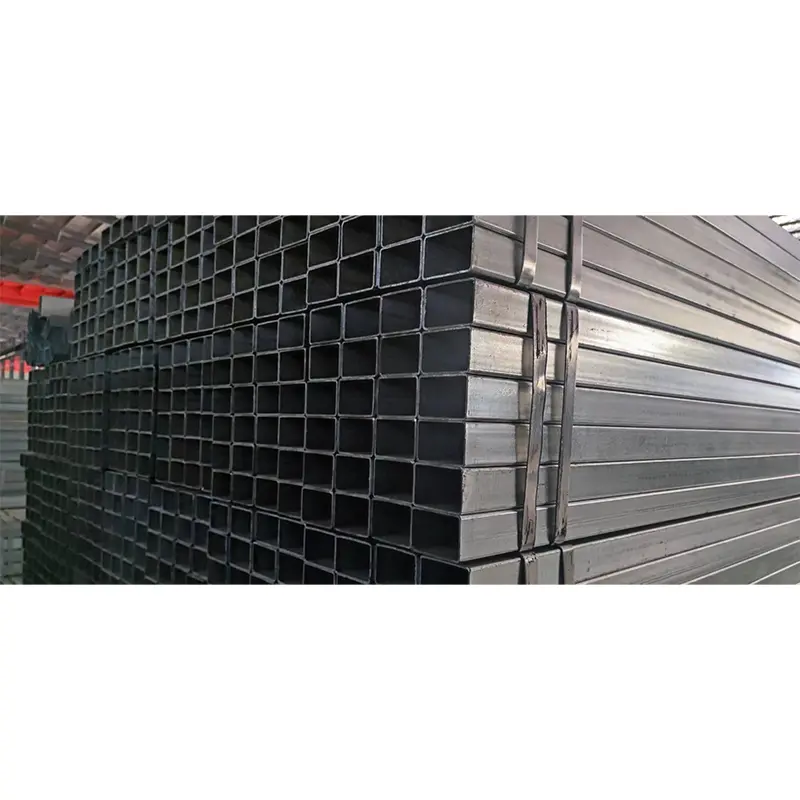

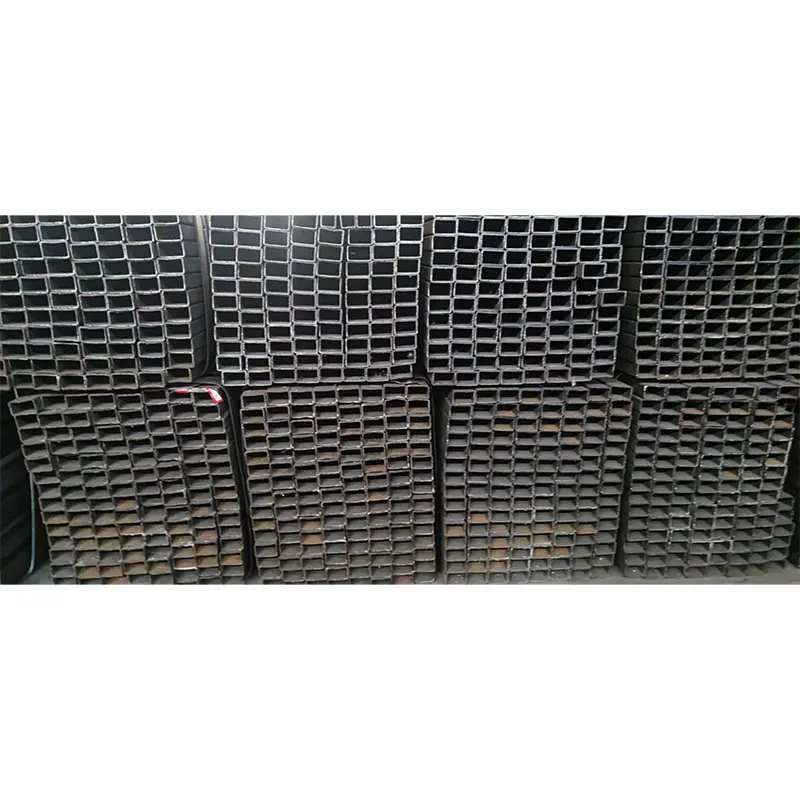

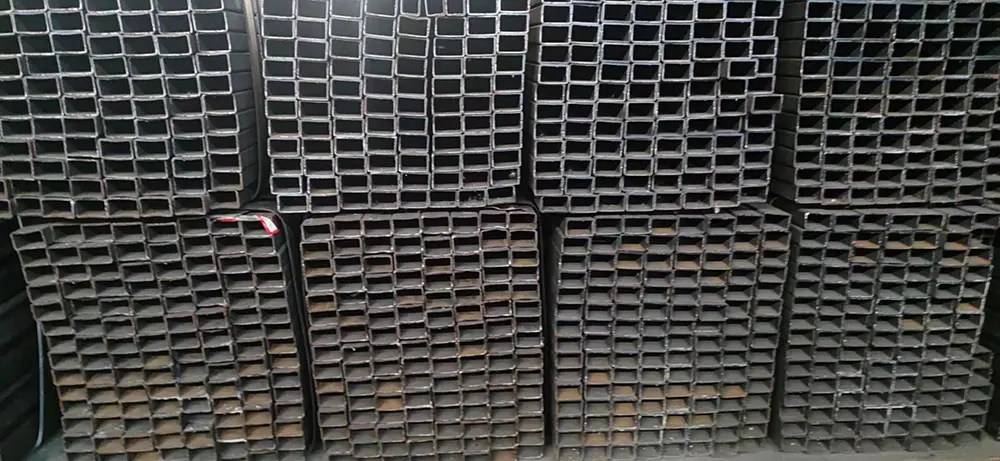

Thin Wall Black Rectangular and Square Steel Tube

ZHONGTIAN Thin Wall Black Rectangular and Square Steel Tube belongs to the category of lightweight structural steel pipes, with a typically thin wall thickness (generally less than 4mm). It is made from high-quality carbon steel strip through continuous high-frequency resistance welding (ERW), resulting in high production efficiency, good dimensional accuracy, and smooth, reliable welds, meeting the needs of large-scale standardized production.

Product Characteristics

1. Thin Wall Design

Thin wall black rectangular and square steel tubes generally refer to hollow sections with wall thickness between 0.6mm and 3.5mm. Compared with standard or thick wall tubes, they reduce material consumption and overall structure weight, making them suitable for projects requiring easy transportation, quick installation, and low fabrication costs.

2. Black Steel Surface Condition

The surface retains the black iron oxide scale naturally formed during hot rolling. Since the tube is supplied without galvanizing or painting, customers can select different finishing methods according to application requirements, such as spray painting, powder coating, or hot dip galvanizing.

3. Hollow Section Design

The square and rectangular cross-section provides better rigidity than flat steel with similar weight. The closed structure improves stability while maintaining lightweight characteristics, making it suitable for frames, supports, and decorative applications.

Manufacturing Process

1. Steel Strip Preparation

Carbon steel coils are leveled and cut into suitable widths before entering the forming line. Q235B steel is mainly selected because of its good weldability and stable mechanical properties.

2. Cold Forming and Welding

The steel strip is gradually shaped into square or rectangular sections through forming rollers, followed by high-frequency resistance welding. The welding process creates a continuous seam with high production efficiency and consistent dimensions.

3. Finishing and Inspection

After welding, the tube undergoes weld seam smoothing, straightening, cutting, and dimensional inspection. The finished products are bundled according to size and length requirements before shipment.

Technical Specifications

Material Selection

Common Steel Grades

1. Q235B Carbon Steel

Q235B is the most widely used material for thin wall black square and rectangular tubes. It offers balanced strength, good plasticity, and excellent welding performance, making it suitable for greenhouse structures, shelves, decorative frames, and general fabrication.

2. Q355B High Strength Steel

Q355B provides higher yield strength than Q235B and is selected for lightweight structures requiring improved load performance, such as outdoor frames, agricultural equipment supports, and reinforced fabrication projects.

Application Solutions

1.Agricultural Greenhouse Structures

Thin wall black rectangular and square tubes are commonly used in greenhouse skeleton systems, including arches, side supports, and auxiliary frames. Their lightweight design reduces installation workload while providing sufficient structural support for small and medium greenhouse projects.

2.Commercial Display and Storage Equipment

For warehouse racks, display shelves, and shop fixtures, thin wall square tubes offer good dimensional accuracy and easy processing. Fabricators can quickly cut, weld, and assemble customized structures according to space requirements.

3.Interior and Decorative Fabrication

Because of their smooth square geometry and easy surface treatment, these tubes are frequently used for handrails, partitions, furniture frames, advertising structures, and decorative metal products.

International Application Cases

Greenhouse Frame Project – Canada (2022)

A greenhouse manufacturer in Ontario, Canada selected Q235B thin wall black rectangular tubes for small-scale agricultural greenhouse structures. The tubes were cut and welded locally into greenhouse frames before applying protective coating. The lightweight material helped reduce transportation costs during winter construction while maintaining sufficient structural stability for seasonal farming use.

Retail Display Rack Production – Germany (2023)

A German retail fixture company used thin wall black square tubes for customized store display racks. The customer required precise dimensions, easy welding, and a surface suitable for powder coating. The selected tubes improved production efficiency and reduced fabrication costs compared with heavier structural sections.

Farm Equipment Support Frame – Australia (2021)

An agricultural equipment supplier in Australia used Q355B thin wall rectangular tubes for lightweight equipment support frames. The higher-strength material allowed the manufacturer to maintain structural performance while reducing overall frame weight.

Advantages and Limitations

Selection Guide

1. Confirm Load Requirements

Thin wall black rectangular and square tubes are designed for light-duty applications. They should not be used as main load-bearing columns, heavy equipment foundations, or high-load structural components.

2. Select Proper Wall Thickness

For decorative frames and furniture structures, 0.8–1.5mm thickness is commonly used. Greenhouse structures and lightweight supports usually require 1.5–3.0mm thickness depending on span and load conditions.

3. Consider Corrosion Protection

Because black steel tubes have no factory-applied corrosion coating, outdoor applications should include additional protection such as painting, powder coating, or hot dip galvanizing.

FAQ

Thin Wall Black Rectangular and Square Steel Tube FAQ

1. What is a thin wall black rectangular and square steel tube?

It is a welded hollow steel section with a black oxide surface and wall thickness generally between 0.6mm and 3.5mm. It is mainly used for lightweight structures and fabrication applications.

2. What is the difference between thin wall and thick wall square tubes?

Thin wall tubes usually have a thickness of 0.6–3.5mm and focus on lightweight applications. Thick wall tubes normally start from 4mm and are designed for heavy structural loads.

3. What materials are commonly used?

Q235B is the standard material for most applications because of its good weldability and cost advantage. Q355B is available when higher strength is required.

4. Can thin wall black square tubes be used outdoors?

Yes, but additional corrosion protection is necessary. The untreated black surface can rust when exposed to rain or humidity for a long time.

5. Can these tubes be welded and bent?

Yes. They are easy to weld, cut, drill, and bend. For ultra-thin walls below 1.2mm, lower welding heat input is recommended to avoid burning through the tube wall.

6. What industries use thin wall black square tubes?

They are widely used in greenhouse construction, storage racks, furniture manufacturing, decorative structures, advertising frames, and lightweight equipment supports.

7. Are they suitable for building columns or heavy machinery?

No. For heavy load-bearing structures, thick wall rectangular and square steel tubes with larger wall thickness should be selected.

8. What standard does this product follow?

The commonly referenced standard is GB/T6728-2017 for cold-formed hollow sections.

9. Can customized sizes be supplied?

Yes. Manufacturers can provide customized dimensions, wall thicknesses, and cutting lengths according to project requirements.

10. What documents can suppliers provide?

Qualified suppliers can provide material certificates, inspection reports, and product quality documentation according to customer requirements.
