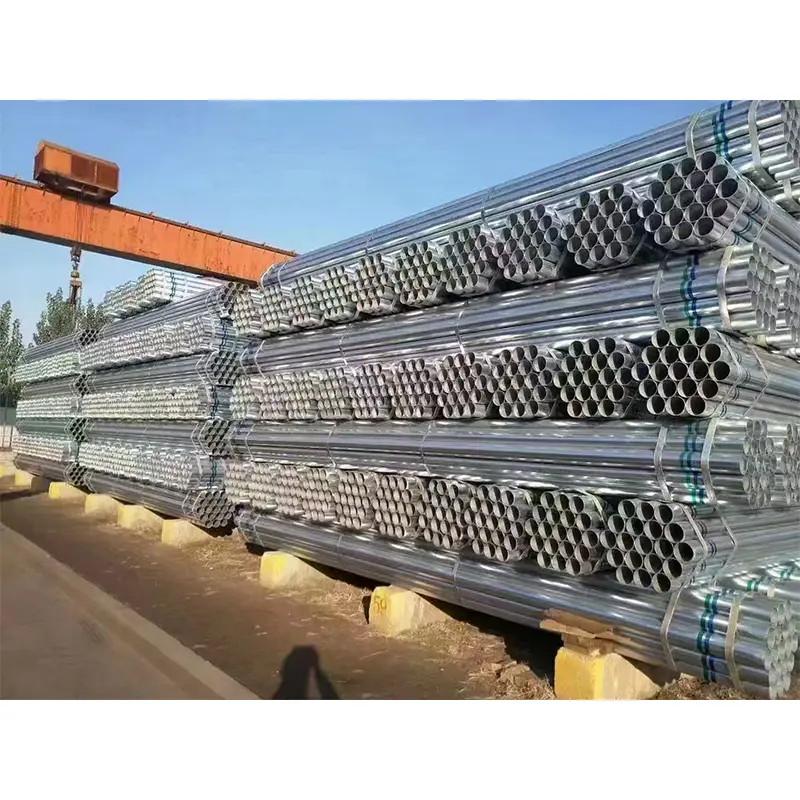

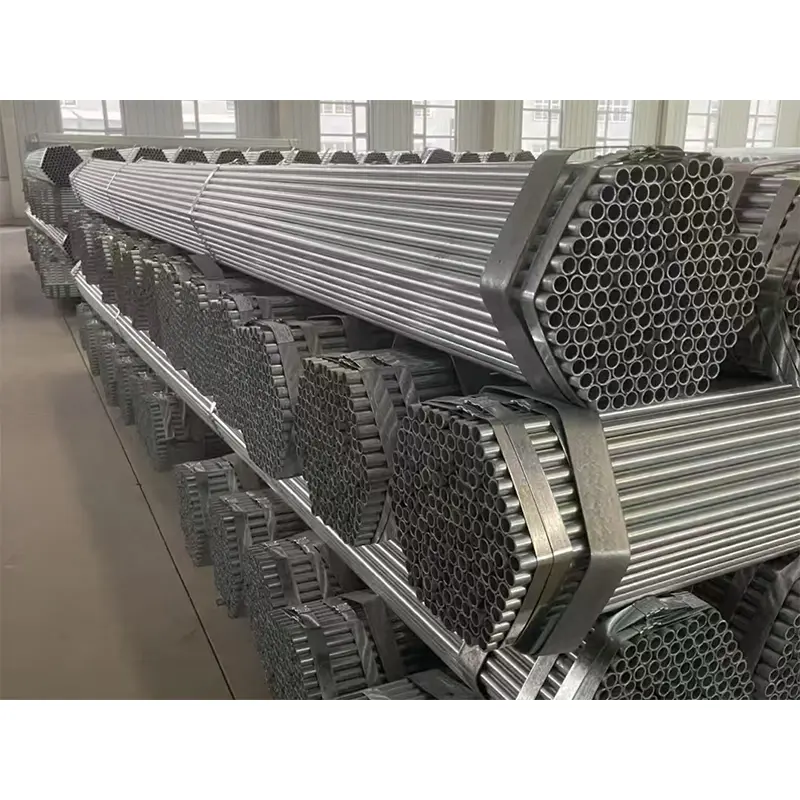

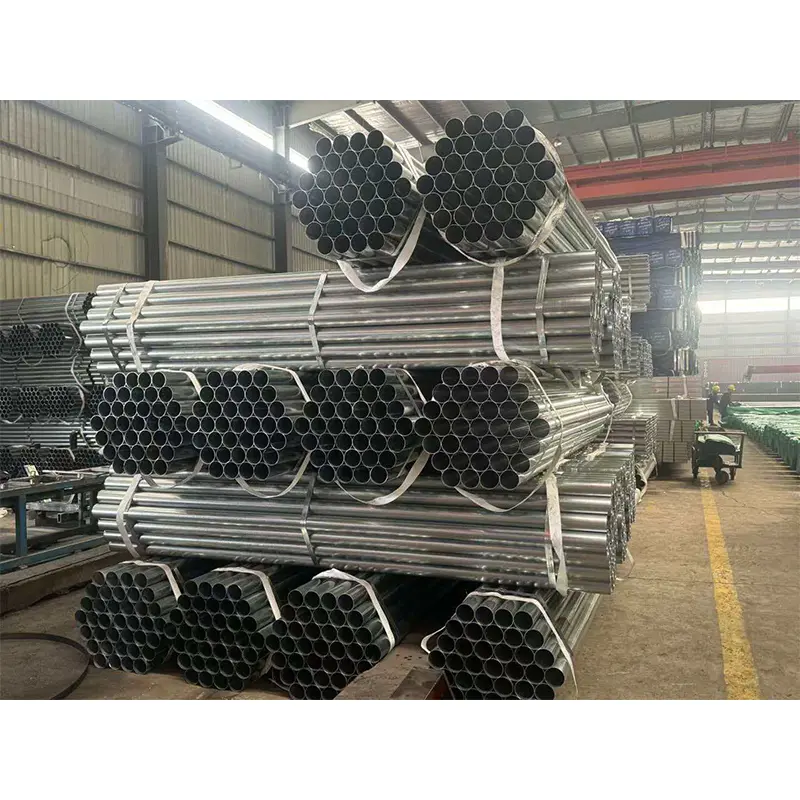

Thin Wall Hot Dip Galvanized Round Steel Pipe

Thin Wall Hot Dip Galvanized Round Steel Pipe refers to lightweight circular steel tubes with relatively small wall thickness, generally ranging from 1.0mm to 2.5mm. The pipe body is mainly produced from low-carbon steel strips through high-frequency welding technology and then treated with hot-dip galvanizing.

During production, the steel strip is first formed into a round tube shape through precision rollers. The edges are then welded by ERW (Electric Resistance Welding) technology to create a stable tube structure. After welding inspection and surface cleaning, the pipes are immersed into molten zinc at approximately 450°C, forming a protective zinc coating on both internal and external surfaces.

This manufacturing process allows the pipe to achieve a balance between lightweight design, corrosion protection, and manufacturing efficiency.

Material Selection and Performance Characteristics

1. Common Steel Grades

Q195 steel is mainly selected for applications requiring good flexibility and easy forming, such as greenhouse structures, fences, and decorative frames.

Q235B is the most widely used material because it offers balanced strength, weldability, and cost efficiency. It is commonly applied in light structural supports, cable protection systems, and low-pressure pipelines.

For projects requiring higher mechanical performance, Q355B can be supplied to improve load-bearing capability.

2. Mechanical Performance

Typical Q235B performance includes:

Yield strength: ≥235 MPa

Tensile strength: 370–500 MPa

Elongation: ≥26%

The material provides sufficient strength for lightweight structures while maintaining excellent processing performance during cutting, welding, and bending operations.

3. Size Range and Surface Specification

Thin Wall Hot Dip Galvanized Round Steel Pipe is commonly supplied in:

Outer diameter:20mm–114mm

Wall thickness:1.0mm–2.5mm

Standard length:6 meters

Customized lengths:Available according to project requirements

Common sizes include: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 and DN100.

The galvanized coating normally reaches 55μm or above according to project requirements, providing effective protection against moisture and atmospheric corrosion.

Advantages for Engineering Applications

1. Lightweight Structure Reduces Installation Cost

The thin-wall design reduces overall pipe weight while maintaining sufficient rigidity. This makes transportation easier and lowers labor costs during installation.

For greenhouse construction, exhibition structures, and temporary facilities, lightweight pipes allow workers to complete assembly faster without requiring heavy lifting equipment.

2. Good Corrosion Resistance for Outdoor Conditions

Unlike black steel pipes that require additional painting, hot-dip galvanized pipes already have a protective zinc coating. The zinc layer provides long-term protection against rain, humidity, and environmental exposure.

This makes them suitable for agricultural facilities, outdoor fences, and electrical protection systems.

3. Easy Fabrication and Connection

The pipe can be processed through cutting, drilling, welding, threading, and bending. Contractors can quickly adjust pipe dimensions according to actual installation requirements.

4. Cost-effective Alternative Material

Compared with stainless steel pipes, galvanized thin-wall pipes offer a much lower material cost while maintaining sufficient corrosion resistance for many engineering environments.

Main Application Areas

1. Agricultural Greenhouse Structures

Thin Wall Hot Dip Galvanized Round Steel Pipe is widely used in greenhouse construction because of its lightweight design and corrosion resistance.

Typical applications include:

● Greenhouse arches

● Support columns

● Irrigation pipe supports

● Ventilation frame structures

The galvanized surface helps prevent corrosion caused by outdoor humidity and agricultural environments.

2. Electrical Cable Protection Systems

In many commercial and industrial buildings, these pipes are used as protective conduits for electrical wiring.

Applications include:

● Cable protection sleeves

● Equipment wiring systems

● Factory electrical installation

The steel structure provides stronger mechanical protection compared with plastic conduit, especially in areas requiring impact resistance.

3. Decorative and Lightweight Structures

Due to its clean surface appearance and easy processing characteristics, the product is also suitable for:

● Metal fences

● Handrails

● Display structures

● Furniture frames

● Advertising frames

The galvanized finish reduces maintenance requirements after installation.

4. Low Pressure Fluid Applications

For non-critical low-pressure systems, these pipes can be used in:

● Garden irrigation systems

● HVAC auxiliary pipelines

● Small water circulation systems

Selection should be based on pressure requirements and local regulations.

International Project Applications

1. Greenhouse Support Project in Australia (2023)

Country: Australia Project Date: March 2023 Application: Commercial vegetable greenhouse expansion

Project Background

An agricultural company in Queensland planned to expand its greenhouse production area. The existing structure used ordinary carbon steel pipes, but frequent exposure to high humidity and irrigation water caused corrosion problems.

Customer Requirement

The customer required:

● Lightweight structural materials

● Better corrosion resistance

● Easy installation without heavy equipment

● Long outdoor service life

ZHONGTIAN Solution

ZHONGTIAN supplied Thin Wall Hot Dip Galvanized Round Steel Pipe with Q235B material and customized lengths for greenhouse frames.

The galvanized coating improved corrosion resistance, while the lightweight design reduced installation time during greenhouse assembly.

Project Result

The customer successfully completed the greenhouse expansion within the planned construction period and reduced future maintenance work compared with painted steel structures.

2. Residential Fence Construction Project in Chile (2022)

Country: Chile Project Date: September 2022 Application: Residential community fencing system

Project Background

A property developer in Santiago needed economical metal fencing materials for a new residential community.

The main challenge was balancing budget requirements with outdoor durability because the fence structures would be exposed to sunlight and seasonal rainfall.

Customer Requirement

The project required:

● Affordable steel tubes

● Outdoor corrosion resistance

● Easy welding and installation

ZHONGTIAN Solution

ZHONGTIAN provided galvanized round steel pipes with Q195/Q235B material options.

The pipes were used as fence posts and supporting frames. The galvanized coating reduced rust risks and eliminated frequent repainting requirements.

Project Result

The fencing system achieved stable outdoor performance while helping the developer control construction costs.

Product Selection Guide

1. Choose Material According to Application

Q195 is recommended for lightweight applications such as greenhouse frames and decorative structures.

Q235B is suitable for general engineering applications requiring balanced strength and cost.

Q355B should be considered when higher structural performance is required.

2. Select Wall Thickness According to Load

For decorative structures and cable protection, 1.2–1.8mm wall thickness is commonly selected.

For support structures and outdoor frames, 2.0–2.5mm thickness provides better stability.

3. Confirm Surface Quality Before Purchase

Qualified galvanized pipes should have:

● Uniform zinc coating

● No exposed steel surface

● No serious peeling

● No large corrosion marks

Frequently Asked Questions

Q1: What is Thin Wall Hot Dip Galvanized Round Steel Pipe?

It is a lightweight steel tube with a thin wall structure and hot-dip galvanized surface coating. It is mainly used for light-duty structures, greenhouse frames, electrical protection, and decorative applications.

Q2: What materials are available?

The common materials are Q195 and Q235B. Q195 provides better flexibility, while Q235B offers higher overall strength and wider application.

Q3: Can it be used outdoors?

Yes. The hot-dip galvanized coating provides corrosion resistance for outdoor environments. However, application conditions such as humidity, chemicals, and service life requirements should be considered.

Q4: Can the pipe be customized?

Yes. ZHONGTIAN can provide customized diameter, wall thickness, length, packaging, and surface requirements according to project needs.

Q5: What industries usually use this product?

Common industries include agriculture, construction, electrical installation, infrastructure maintenance, fencing, and light manufacturing.
