Black Channel Steel

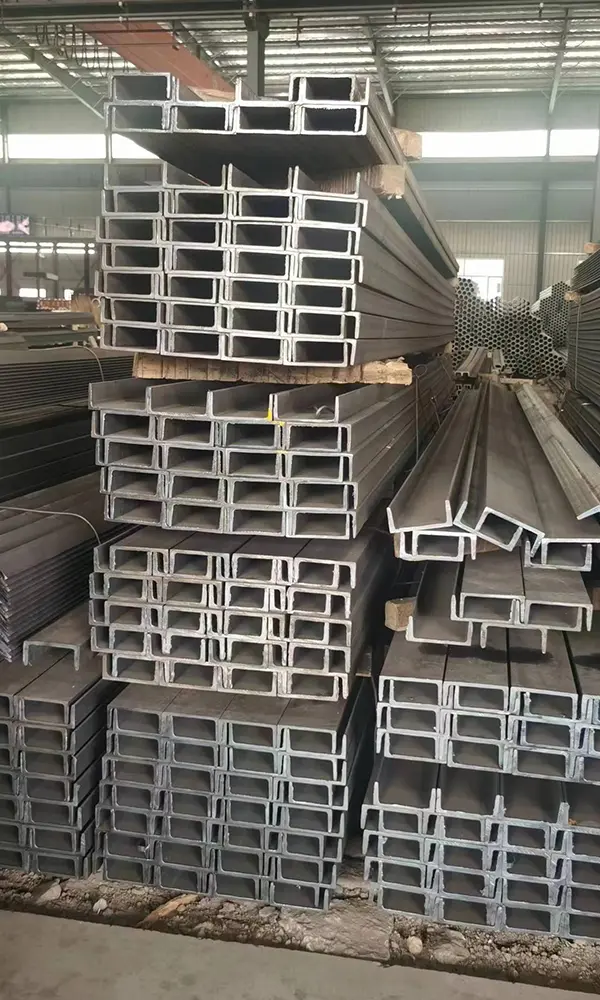

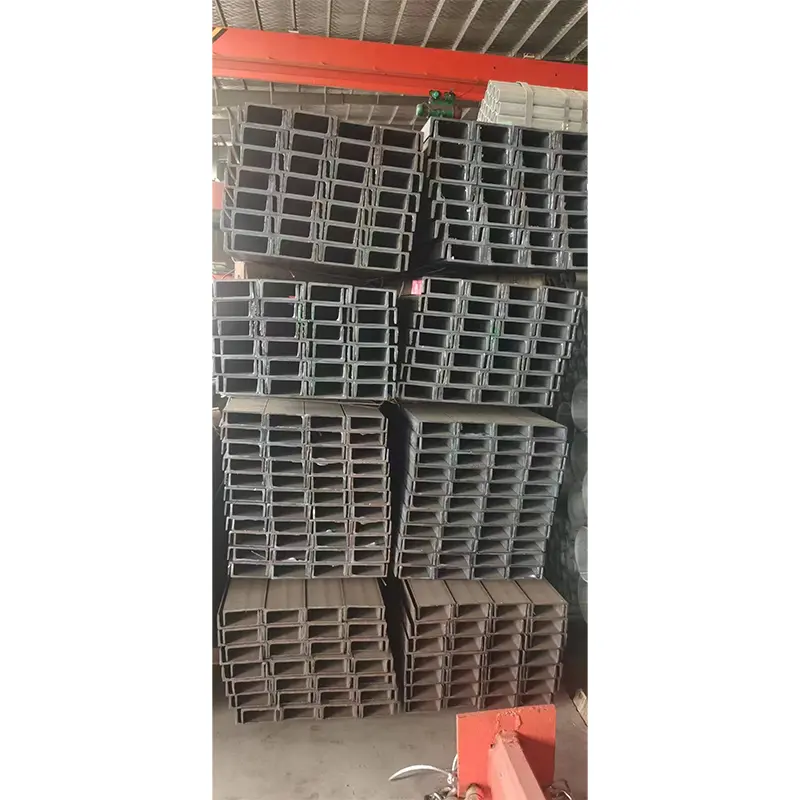

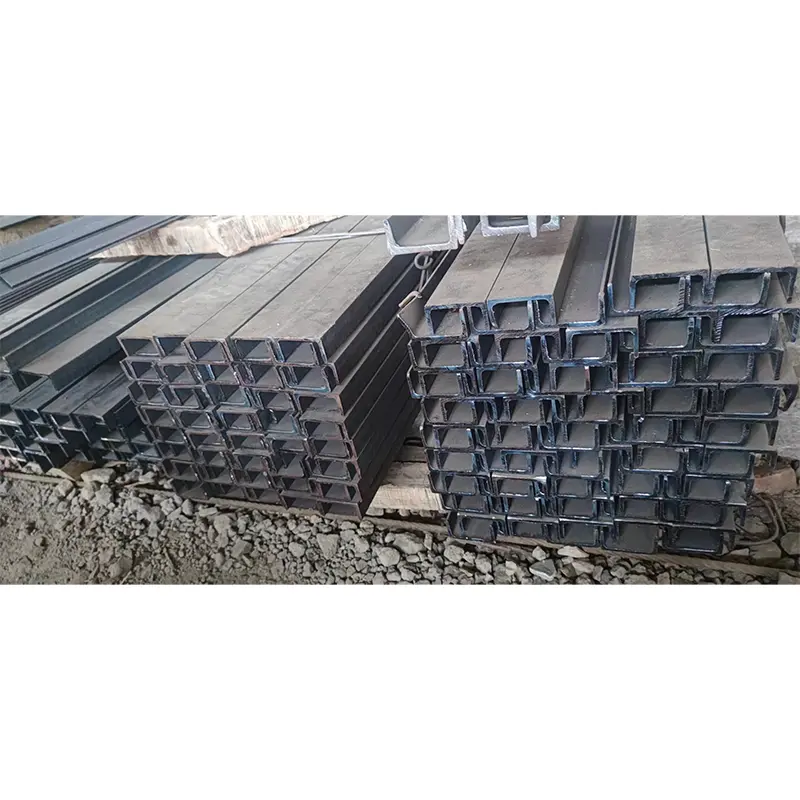

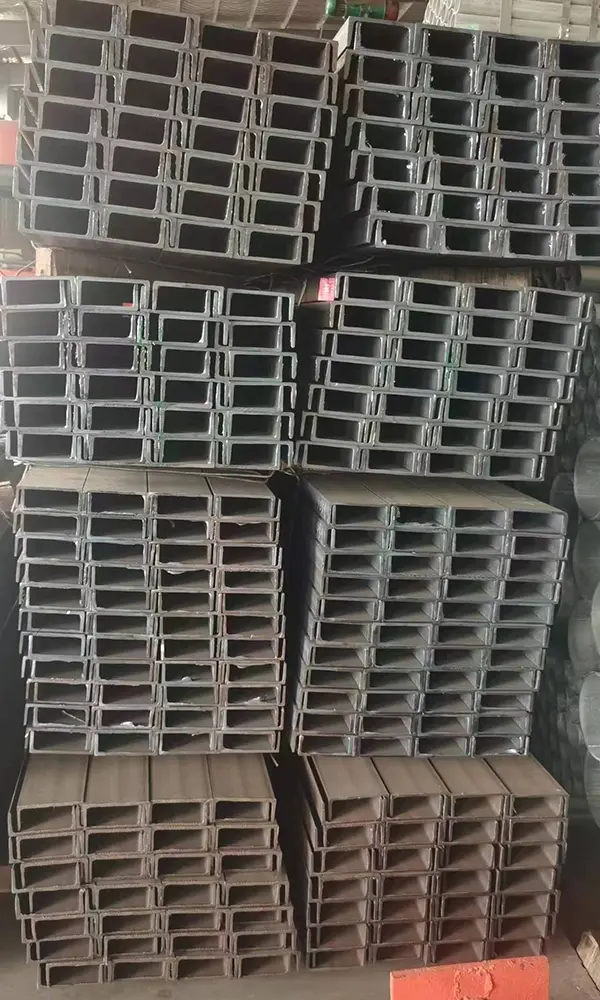

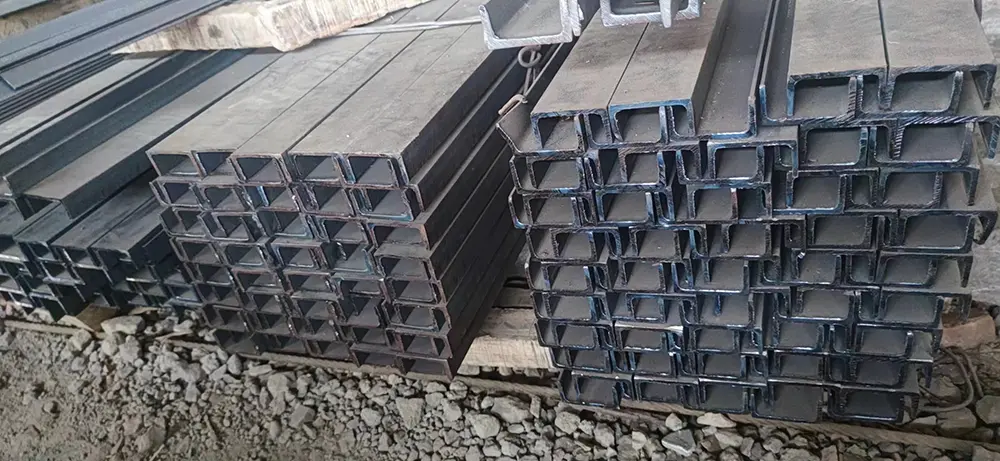

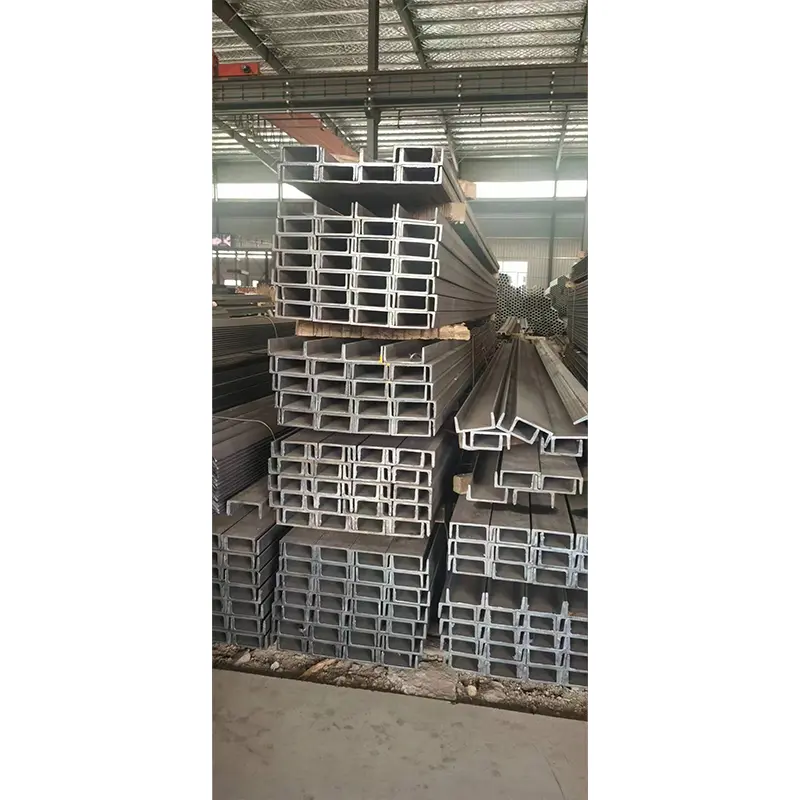

ZHONGTIAN Black Channel Steel is a C-shaped structural steel profile manufactured from carbon steel through hot rolling. It consists of a web and two flanges and retains its original black-gray surface formed by natural iron oxide scale during high-temperature rolling. Without additional coating or anti-corrosion treatment, it offers cost efficiency while maintaining the original strength, load-bearing capacity, bending resistance, and structural rigidity of hot rolled steel.

The manufacturing process starts with heating qualified steel billets above the recrystallization temperature, followed by multiple rolling stages to form the channel profile. After straightening, cutting, and cooling, a dense oxide layer develops on the surface. Compared with galvanized channel steel, Black Channel Steel requires no pickling, zinc coating, or additional surface treatment, resulting in simpler production and lower overall cost.

Material and Technical Information

1. Steel Grade Options

Black Channel Steel is mainly manufactured from Q235B carbon structural steel, which offers a good balance of strength, weldability, and processing performance. Q235B is widely used in general construction structures, equipment supports, and industrial frameworks.

For applications requiring higher strength and greater load capacity, Q345B low-alloy high-strength steel can be selected. Compared with Q235B, Q345B provides higher yield strength and is suitable for heavier structural requirements.

The commonly supplied mechanical properties include Q235B with a yield strength of ≥235MPa and tensile strength of approximately 370–500MPa, while Q345B provides a yield strength of ≥345MPa.

2. Available Sizes and Dimensions

Black Channel Steel is available in a wide range of specifications, generally from 5# to 40#. Different models are classified according to channel height, flange width, and web thickness to meet different structural load requirements.

Standard supply lengths include 6m, 9m, and 12m. ZHONGTIAN also provides customized cutting lengths, machining services, and fabrication according to customer drawings and project requirements.

Performance Advantages

1. Strong Load-Bearing Capability

The channel-shaped structure of Black Channel Steel provides excellent resistance against bending, compression, and shear forces. The optimized cross-section improves structural stability while maintaining reasonable material usage.

It is widely used in supporting structures, beams, frames, and industrial components where reliable mechanical performance is required.

2. Excellent Fabrication Performance

Hot rolled carbon steel has good processing characteristics, allowing Black Channel Steel to be easily cut, drilled, welded, and fabricated.

Q235B channel steel has particularly good welding performance and is commonly welded with E43 series electrodes such as J422. For Q345B materials, E50 series electrodes such as J507 are generally selected.

Before welding or fabrication, removing loose surface oxide scale and contaminants can help improve processing quality.

3. Cost-Effective Structural Material

Since Black Channel Steel does not require additional galvanizing or coating procedures, it has a lower production cost compared with corrosion-protected steel products.

For large-scale indoor projects, temporary structures, and applications where customers plan to apply their own surface treatment, it provides an economical structural steel solution while maintaining sufficient strength.

4.Flexible Surface Treatment Options

One of the advantages of untreated hot rolled channel steel is its flexibility for further processing. After fabrication, the surface can be treated through sandblasting, painting, powder coating, or other anti-corrosion methods according to application requirements.

For projects requiring long-term outdoor exposure, additional protection should be applied to improve corrosion resistance.

Typical Applications

1.Building and Structural Framework

Black Channel Steel is widely used in indoor steel structures, factory frameworks, building supports, curtain wall support systems, stair structures, temporary scaffolding, and construction support frames.

Its high strength and easy fabrication make it suitable for structural components that require reliable performance and convenient installation.

2. Machinery and Equipment Base

In machinery manufacturing and industrial equipment projects, Black Channel Steel is commonly used for machine bases, equipment frames, forklift structures, crane components, and vehicle chassis frameworks.

Its strong load capacity and welding performance allow manufacturers to create stable and durable equipment structures.

3. Industrial Support Structures

Black Channel Steel is also applied in pipeline supports, cable trench brackets, warehouse racks, internal ship structures, and various industrial auxiliary frameworks.

For applications involving humidity, chemicals, or outdoor exposure, additional anti-corrosion treatment is recommended to extend service life.

International Project Experience

Indoor Factory Steel Structure Project in Southeast Asia

A manufacturing facility expansion project in Southeast Asia selected ZHONGTIAN Black Channel Steel for its indoor steel support system.

The project required structural materials with reliable strength and good fabrication performance for equipment support frames, working platforms, and internal steel structures. Since the installation area was mainly inside the factory with controlled environmental conditions, the customer selected Q235B hot rolled channel steel instead of galvanized products to achieve better cost efficiency.

ZHONGTIAN supplied channel steel according to the project drawings, including customized cutting lengths and dimensional requirements. After installation and surface painting treatment, the steel components successfully supported the factory structure and equipment system, providing stable performance while reducing overall material costs.

Selection Guide

1. When to Choose Black Channel Steel

Black Channel Steel is suitable for projects where structural strength and cost efficiency are the primary considerations. Typical applications include indoor structures, temporary frameworks, machinery supports, and projects where additional surface treatment will be performed after fabrication.

It is especially suitable when customers require flexible welding, machining, and customized fabrication before final installation.

2. When Additional Protection Is Required

Because Black Channel Steel does not include a factory-applied corrosion protection layer, additional treatment is necessary for humid, outdoor, coastal, or chemically corrosive environments.

Common protection methods include rust removal, anti-rust primer, protective painting, powder coating, or hot dip galvanizing after fabrication.

Black Channel Steel vs Galvanized Channel Steel

1. Surface Condition Difference

Black Channel Steel retains the natural black-gray oxide scale formed during hot rolling, while galvanized channel steel has a silver-gray zinc coating created through the hot dip galvanizing process.

2. Corrosion Resistance Difference

Untreated Black Channel Steel has limited corrosion resistance and may rust when exposed to moisture or outdoor environments. Galvanized channel steel provides stronger corrosion protection due to its zinc coating.

3. Cost and Application Difference

Black Channel Steel has a lower purchase cost because it does not require additional galvanizing treatment. It is commonly selected for indoor, temporary, or post-treated applications.

Galvanized channel steel has a higher initial cost but provides better long-term protection for outdoor and corrosive environments.

FAQ

1. What is Black Channel Steel?

Black Channel Steel is a hot rolled carbon steel channel without galvanizing or painting treatment. Its black surface appearance comes from the natural oxide scale formed during high-temperature rolling.

2. Is Black Channel Steel manufactured according to standards?

Yes. Qualified Black Channel Steel is generally produced according to GB/T 706-2016 standards. Products can be supplied with material certificates containing chemical composition, mechanical properties, and heat number information.

3. What materials are available for Black Channel Steel?

The most common materials are Q235B and Q345B. Q235B is suitable for general structural applications, while Q345B is used for projects requiring higher strength and load capacity.

4. Can Black Channel Steel be welded and processed?

Yes. Black Channel Steel has excellent weldability and can be processed through cutting, drilling, welding, and fabrication. Proper surface cleaning before welding is recommended to improve connection quality.

5. How can Black Channel Steel prevent rust?

Since Black Channel Steel has no protective coating, rust prevention requires additional treatment. Common methods include sandblasting, anti-rust primer application, painting, or other protective coatings.

6. Can Black Channel Steel replace galvanized channel steel?

It depends on the application environment. Black Channel Steel can replace galvanized channel steel in dry indoor environments or projects with additional corrosion protection. For outdoor, coastal, or corrosive environments, galvanized channel steel is recommended.

7. What lengths are available?

Common stock lengths include 6m, 9m, and 12m. ZHONGTIAN can provide customized cutting lengths, drilling, welding, and fabrication services according to customer requirements.

8. Why choose ZHONGTIAN as a Black Channel Steel supplier?

ZHONGTIAN provides professional hot rolled steel solutions with reliable material sourcing, strict quality control, customized processing capability, and international supply experience. The company supports customers with stable products and flexible solutions for construction, industrial, and structural applications.
