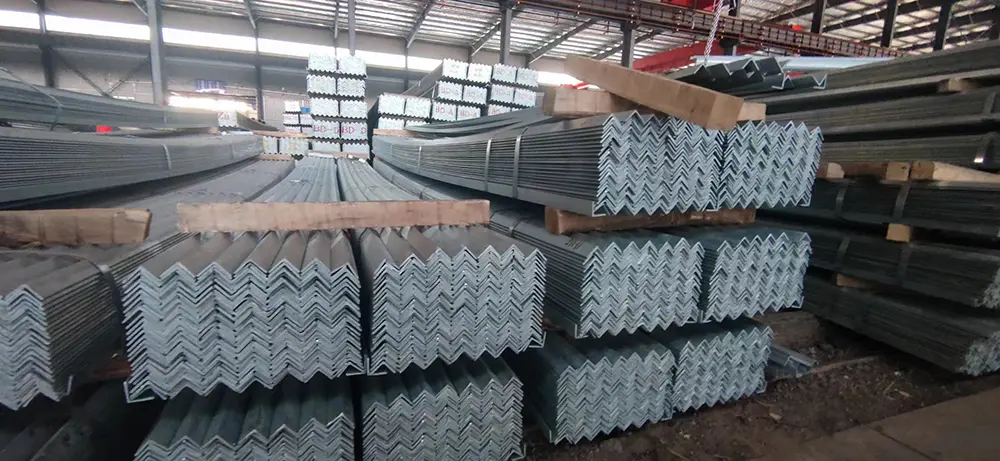

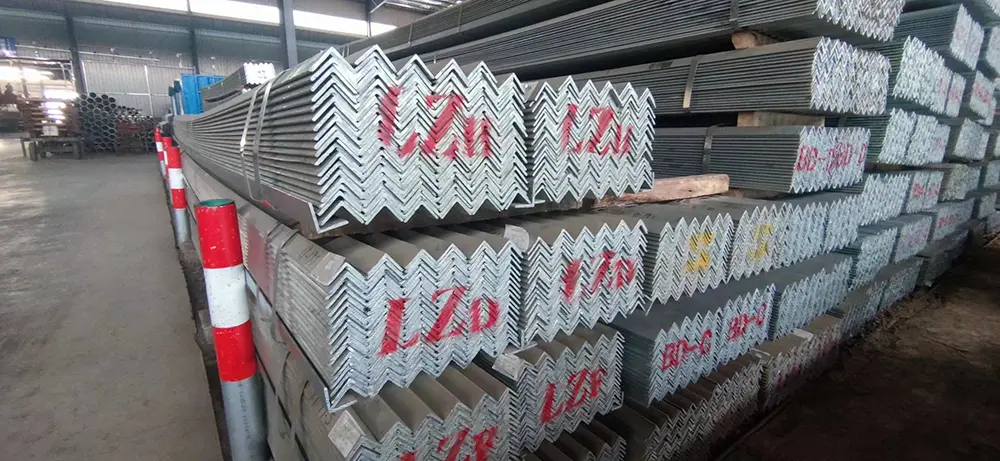

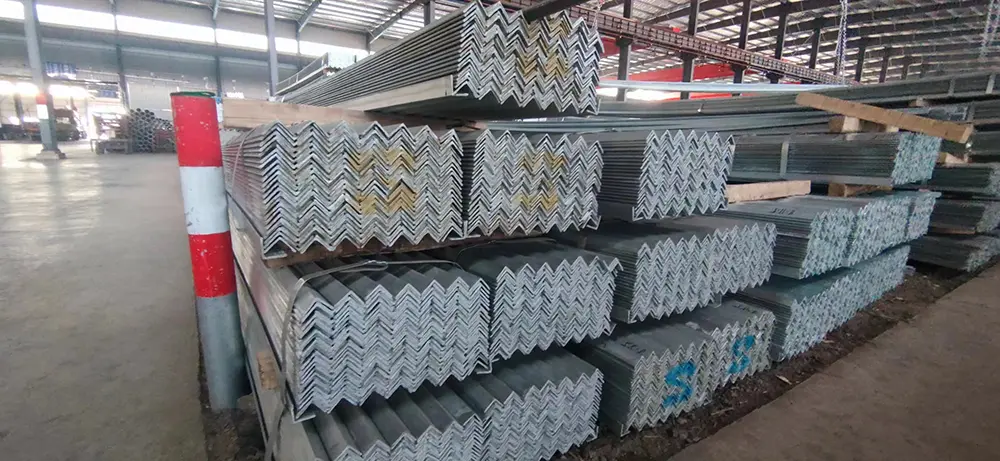

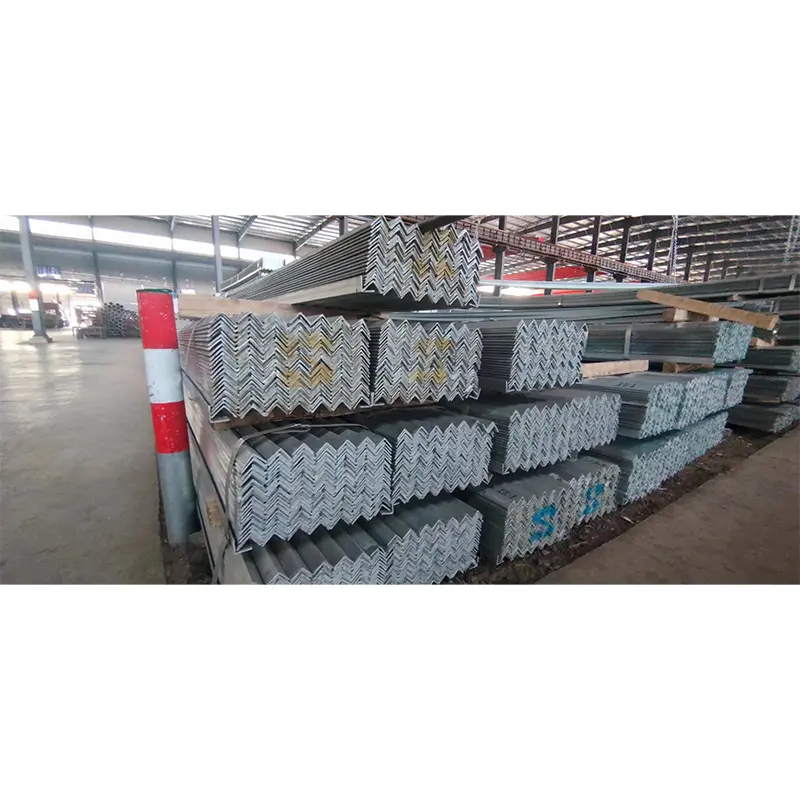

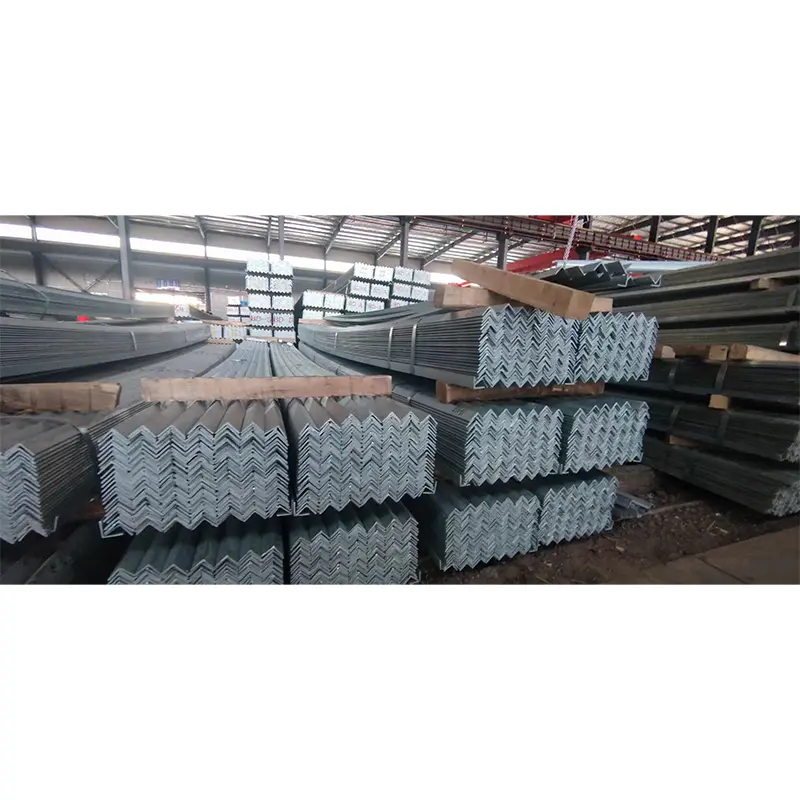

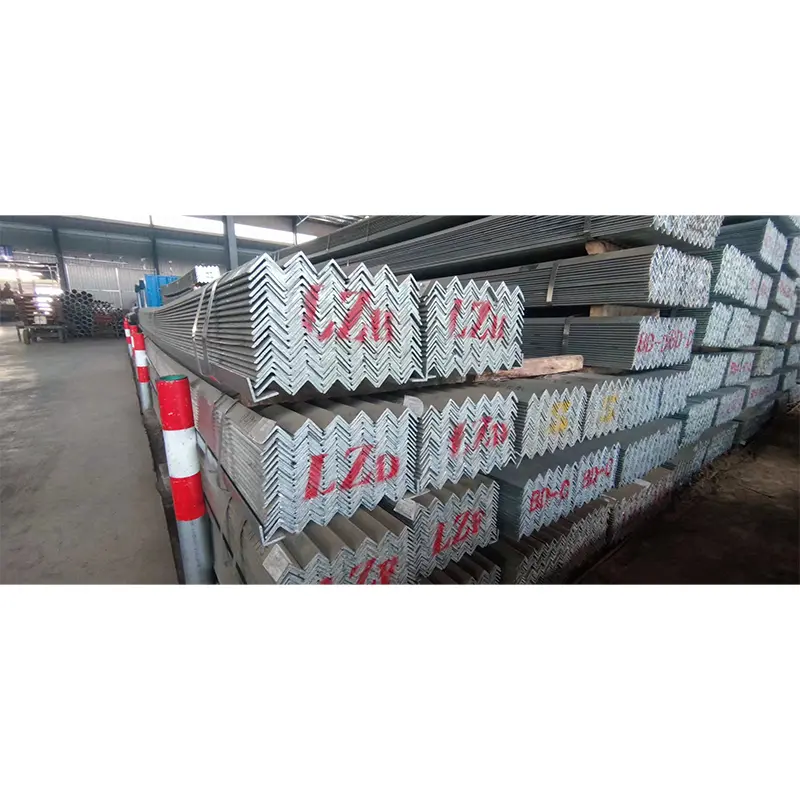

Galvanized Angle Steel Bar

ZHONGTIAN Galvanized Angle Steel Bar is a structural steel component produced by applying a hot dip zinc coating to carbon steel angle profiles through a professional galvanizing process. The base steel is treated through surface cleaning procedures and immersed in molten zinc to form a metallurgically bonded coating consisting of zinc-iron alloy layers and a protective zinc outer layer. This advanced coating technology significantly improves resistance against rust, moisture, and atmospheric corrosion compared with untreated black angle steel, helping extend service life and reduce maintenance costs.

Available in equal angle and unequal angle configurations, Galvanized Angle Steel Bar offers high strength, stable performance, convenient fabrication, and excellent outdoor durability. It is widely applied in industrial construction, steel frameworks, transmission towers, machinery supports, and infrastructure projects where both structural reliability and long-term corrosion resistance are required.

Product Features and Manufacturing Characteristics

Galvanized Angle Steel Bar is produced by upgrading conventional hot rolled angle steel with a professional hot dip galvanizing treatment. The base steel maintains the original mechanical properties of angle profiles, including high strength, rigidity, and structural stability, while the zinc coating provides additional protection against corrosion.

Unlike cold galvanized angle steel, which relies on a surface coating process, hot dip galvanizing creates a metallurgical bond between zinc and steel. This allows the coating to withstand mechanical impact, transportation friction, drilling, cutting, and outdoor exposure without easily peeling or cracking.

The product is especially suitable for applications where steel structures are difficult to maintain after installation, including outdoor frameworks, coastal facilities, infrastructure projects, and industrial equipment supports.

Production Process

1. Steel Angle Preparation and Surface Treatment

High-quality angle steel is inspected, straightened, and cleaned before galvanizing. The surface undergoes degreasing to remove oil contamination, followed by acid pickling to eliminate rust and oxide layers. Multiple water rinsing processes ensure a clean steel surface for effective zinc bonding.

2. Hot Dip Galvanizing Process

The treated angle steel is immersed into molten zinc at approximately 490–510℃. During this process, zinc reacts with iron in the steel surface to create several alloy layers, followed by a pure zinc outer layer. This structure provides strong adhesion and long-term corrosion resistance.

3. Inspection and Finishing

After galvanizing, the products are cooled, surface-adjusted, and inspected for coating thickness, appearance quality, dimensions, and mechanical performance. Qualified products are then packaged according to customer requirements.

Technical Specifications

Performance Advantages

1. Long-Term Corrosion Protection

The hot dip galvanized coating creates a durable barrier between steel and the surrounding environment. The zinc layer protects the steel from atmospheric corrosion, humidity, rain exposure, soil corrosion, and salt spray conditions. Under normal outdoor conditions, the service life can reach more than 15 years depending on the environment.

2. Strong Structural Performance

Galvanized Angle Steel Bar maintains the excellent mechanical properties of hot rolled angle steel. It provides high bending resistance, compression strength, and structural stability, making it suitable for load-bearing frames, brackets, and support systems.

3. Strong Zinc Layer Adhesion

The zinc coating is metallurgically bonded with the steel substrate rather than simply attached to the surface. This prevents coating peeling during transportation, installation, welding, drilling, and long-term outdoor exposure.

4. Reduced Maintenance Requirements

Unlike black angle steel that requires additional painting and regular anti-corrosion maintenance, galvanized angle steel can be directly installed in many outdoor applications, reducing labor costs and maintenance frequency.

5. Flexible Fabrication Capability

The product supports cutting, drilling, welding, bending, and bolt connection. It can easily integrate with different construction methods and customized structural designs.

Common Applications

1. Building Steel Structures

Galvanized Angle Steel Bar is widely used for factory frames, roof supports, wall reinforcement structures, steel connections, and construction support systems where reliable structural strength and corrosion resistance are required.

2. Power Transmission and Communication Facilities

It is commonly applied in electrical towers, cable support systems, communication equipment frames, and outdoor infrastructure because of its excellent weather resistance.

3. Industrial Equipment Supports

Factories use galvanized angle steel for machinery bases, equipment platforms, pipeline supports, ventilation frames, and automation equipment structures requiring stable long-term performance.

4. Curtain Wall and Architectural Decoration

The clean galvanized surface makes it suitable for curtain wall brackets, exterior decorative structures, landscape frames, and architectural steel components exposed to outdoor environments.

5. Municipal Infrastructure Projects

The product is widely applied in road barriers, lighting pole supports, drainage structures, public facilities, and other municipal projects requiring corrosion-resistant steel materials.

Equal Angle Steel and Unequal Angle Steel Comparison

1. Equal Angle Steel

Equal Angle Steel has two sides with the same width, providing balanced load distribution and universal application. It is commonly used for structural frames, brackets, supports, and general construction projects.

2. Unequal Angle Steel

Unequal Angle Steel has different side widths, allowing engineers to optimize structural design in limited installation spaces or special load conditions. It is often used in customized structures requiring directional strength.

Galvanized Angle Steel Bar Compared with Other Products

1. Galvanized Angle Steel Bar vs Black Angle Steel

Galvanized Angle Steel Bar provides built-in corrosion protection and requires less maintenance, making it suitable for outdoor and humid environments. Black angle steel has no protective coating and requires additional painting or surface treatment to prevent rust.

2. Hot Dip Galvanized Angle Steel vs Cold Galvanized Angle Steel

Hot dip galvanized angle steel forms a thick metallurgical zinc layer with strong adhesion and long service life. Cold galvanized angle steel only has a surface zinc coating, which is thinner and more likely to peel under outdoor conditions.

3. Galvanized Equal Angle Steel vs Unequal Angle Steel

Equal angle steel provides balanced structural support, while unequal angle steel offers more flexible load distribution for special engineering designs and restricted installation conditions.

International Application Case Study

Coastal Solar Power Plant Steel Support Project in Australia

A renewable energy company in Australia selected hot dip galvanized angle steel for solar panel support structures installed in a coastal region with high humidity and salt spray exposure.

The project required steel components capable of long-term outdoor operation with minimal maintenance. Compared with painted carbon steel, galvanized angle steel provided better resistance against marine corrosion and reduced the need for periodic coating repairs.

The galvanized angle profiles were used for mounting brackets, support frames, and connection structures, helping improve installation efficiency and extending the service life of the solar mounting system.

Selection Guide

1. Material Selection

Q235B is suitable for general construction supports and standard structural applications. Q355B is recommended for heavy-load structures, equipment frames, and projects requiring higher strength.

2. Size Selection

Light structures normally use smaller angle profiles, while heavy-duty frameworks require larger side widths and thicker sections to improve load capacity.

3. Environment Consideration

Outdoor, coastal, humid, and industrial environments should prioritize hot dip galvanized angle steel. Indoor dry environments may select untreated angle steel depending on project requirements.

4. Quality Inspection

Important inspection items include steel grade certification, dimensional tolerance, zinc coating thickness, surface quality, and compliance with GB/T 13912 or ISO 1461 standards.

FAQ

1. What is Galvanized Angle Steel Bar?

Galvanized Angle Steel Bar is a structural steel profile produced by hot dip galvanizing carbon steel or low alloy angle steel. The zinc coating forms a protective layer that improves corrosion resistance while maintaining the original strength and rigidity of the steel profile.

2. What is the difference between hot dip galvanized angle steel and black angle steel?

The main difference is corrosion protection. Hot dip galvanized angle steel has a bonded zinc coating that protects against rust and weather exposure, while black angle steel requires additional painting or coating treatment before outdoor use.

3. Is galvanized angle steel suitable for outdoor applications?

Yes. Due to its thick zinc coating and strong corrosion resistance, galvanized angle steel is widely used for outdoor structures, coastal facilities, power equipment supports, and municipal engineering projects.

4. How long can galvanized angle steel last?

The service life depends on environmental conditions. In normal outdoor environments, hot dip galvanized angle steel can commonly provide more than 15 years of corrosion protection, with longer durability in less aggressive conditions.
