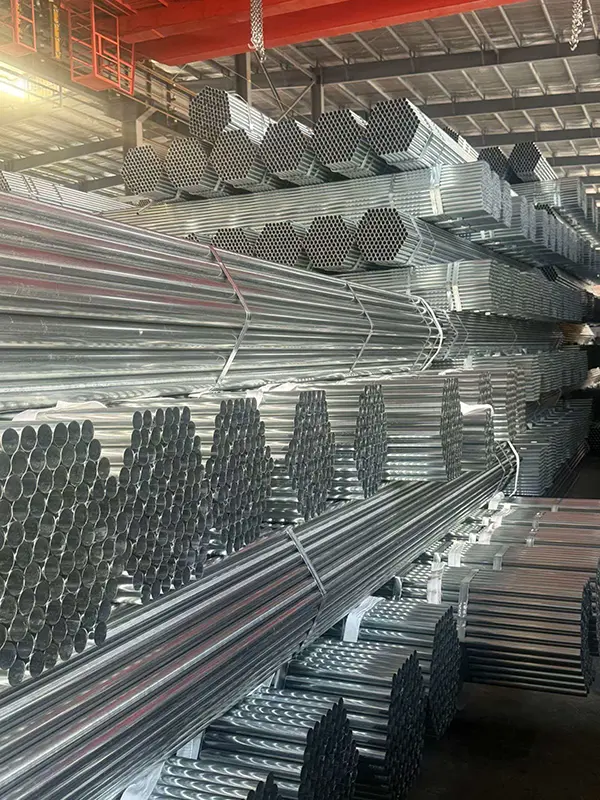

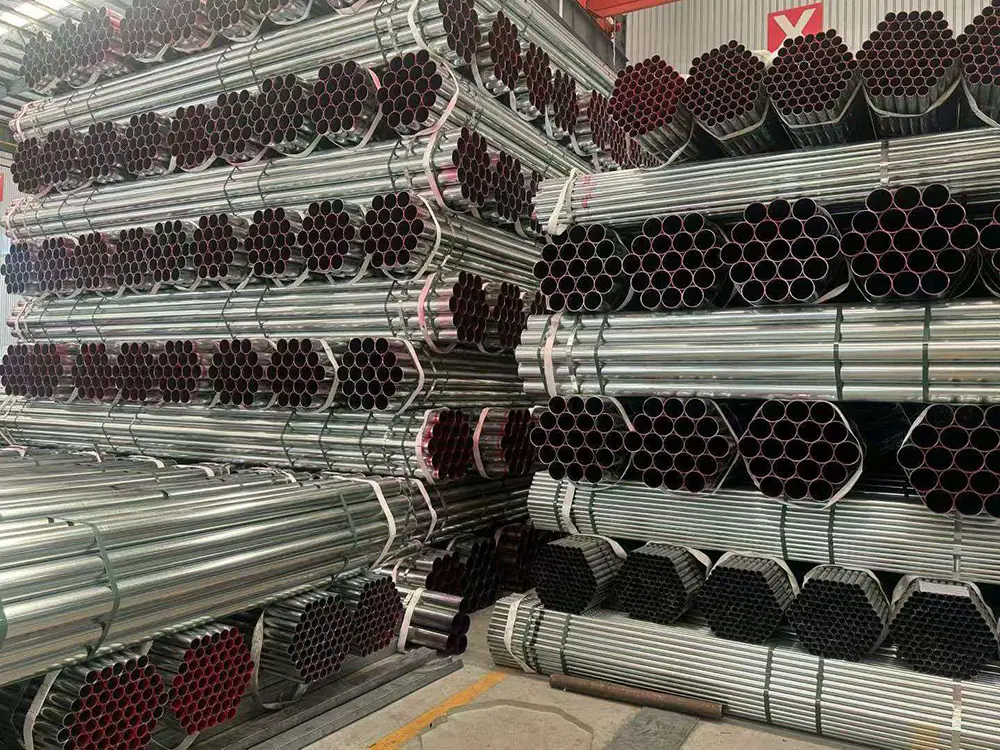

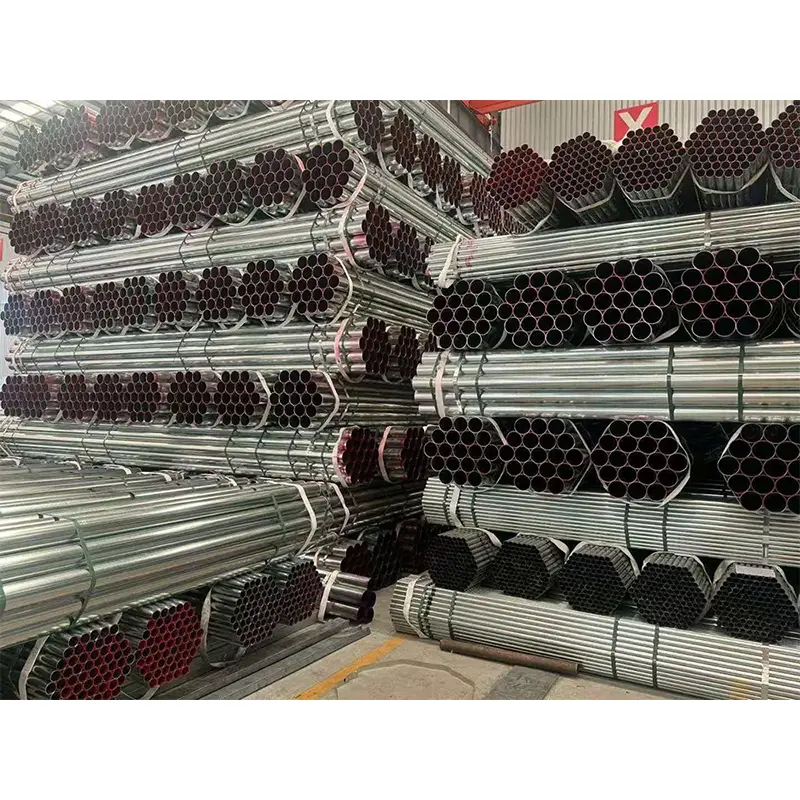

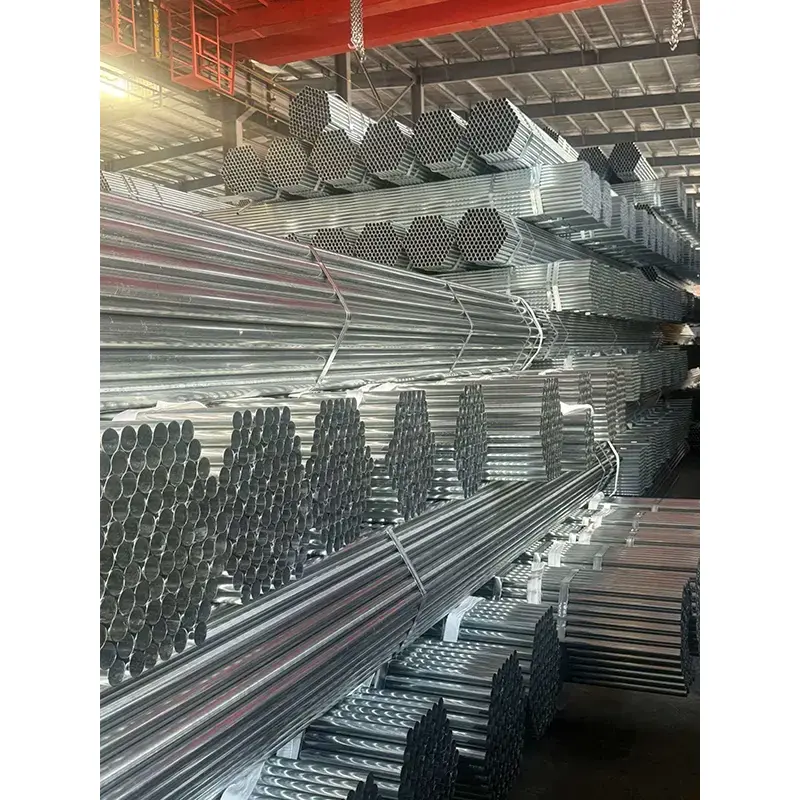

Hot Dip Galvanized Round Steel Pipe

ZHONGTIAN Hot Dip Galvanized Round Steel Pipe is manufactured by applying a protective zinc coating to carbon steel pipes through a high-temperature galvanizing process. The base pipe can be produced from welded ERW steel pipe or seamless steel pipe, depending on application requirements.

During production, the steel pipe undergoes surface preparation, acid cleaning, flux treatment, and immersion into molten zinc at approximately 450℃. This process creates a metallurgical bond between the steel surface and zinc coating, forming both a zinc-iron alloy layer and an outer pure zinc protective layer.

Compared with untreated black steel pipes, galvanized pipes provide significantly improved corrosion resistance and longer service life, making them especially suitable for outdoor environments, underground applications, and projects requiring reduced maintenance.

ZHONGTIAN controls raw materials, galvanizing quality, dimensional accuracy, and final inspection to ensure stable performance for international customers.

Manufacturing Process and Galvanizing Technology

1. Hot Dip Galvanizing Process

The production process begins with high-quality carbon steel pipes made from Q235B or Q355B materials. Before galvanizing, the pipe surface is cleaned through acid pickling and washing processes to remove rust, oxide scale, and surface impurities.

After surface preparation, the pipes are immersed into molten zinc at approximately 440–460℃. The reaction between steel and zinc forms a strong alloy layer, while the external zinc layer provides additional protection against corrosion.

After cooling and inspection, the finished pipes receive quality verification, marking, and packaging before shipment.

2. Advantages of Hot Dip Coating

The hot dip galvanizing process provides complete internal and external surface protection. Unlike painting or temporary coating methods, the zinc layer is firmly bonded to the steel substrate, offering long-term corrosion resistance and better protection against moisture, rain, and atmospheric exposure.

Standards and Material Selection

1. Applicable Production Standards

ZHONGTIAN manufactures galvanized round steel pipes according to widely recognized standards, including GB/T 3091 for welded steel pipes used in low-pressure fluid transportation and GB/T 13912 for hot dip galvanized coating requirements.

For international markets, products can also be supplied according to ASTM A53 and EN 10255 standards to meet different regional engineering requirements.

2. Steel Grade Options

Q235B is the most commonly selected material due to its balanced strength, good weldability, and cost efficiency. It is widely used in water pipelines, fire protection systems, and general structures.

For applications requiring higher load capacity, such as solar mounting systems, heavy steel structures, and outdoor support frameworks, Q355B provides higher strength and improved mechanical performance.

Product Specifications

1. Size Range

ZHONGTIAN Hot Dip Galvanized Round Steel Pipe is available in various diameters and wall thicknesses to meet different engineering needs. Standard sizes generally cover DN15 to DN300, with outer diameters ranging approximately from 21.3mm to 323.9mm.

Wall thickness options typically range from 2.0mm to 10.0mm, while customized dimensions can be supplied according to project drawings and technical requirements.

2. Length and Surface Condition

Standard pipe lengths include 6 meters and 12 meters, with customized cutting services available for special project requirements.

The finished surface presents a uniform silver-gray appearance with strong zinc adhesion. Proper galvanizing quality ensures resistance against peeling, cracking, and premature corrosion.

Corrosion Resistance Performance

1. Long-Term Outdoor Protection

The biggest advantage of galvanized steel pipe is its excellent corrosion resistance. The zinc coating acts as a protective barrier that prevents direct contact between steel and environmental moisture, significantly extending service life in outdoor conditions.

Depending on the application environment, galvanized pipes can provide decades of service with reduced maintenance requirements.

2. Suitable for Harsh Environments

Because of its protective zinc layer, the product performs well in humid areas, outdoor construction sites, agricultural facilities, and municipal projects where ordinary carbon steel pipes require frequent maintenance.

Core Product Advantages

1. Superior Corrosion Protection

The zinc coating provides comprehensive protection against rust and oxidation. Compared with untreated steel pipes, galvanized pipes require less additional maintenance and are more suitable for long-term outdoor use.

2. Strong Mechanical Performance

The steel substrate maintains excellent strength and toughness, allowing the pipe to withstand structural loads, pressure requirements, and installation stresses.

3. Flexible Connection Methods

ZHONGTIAN galvanized round steel pipes can be connected through threading, welding, grooved coupling, and flange systems, providing flexible installation options for different engineering projects.

4. Lower Maintenance Cost

Although the initial cost is higher than black steel pipes, the extended service life and reduced maintenance requirements make galvanized pipes more economical for long-term projects.

Application Fields

1. Water Supply and Fire Protection Systems

Hot dip galvanized round steel pipes are widely used in water transportation systems, fire sprinkler networks, building water supply, and municipal pipelines. Their corrosion resistance makes them suitable for both indoor and outdoor installations.

2. Steel Structures and Support Systems

These pipes are commonly applied in building supports, curtain wall structures, equipment frames, solar mounting systems, and outdoor steel frameworks where long-term weather resistance is required.

3. Municipal and Infrastructure Projects

In urban construction, galvanized pipes are used for guardrails, lighting poles, traffic structures, cable protection systems, and other public facilities requiring durable steel components.

4. Agricultural Applications

Greenhouse structures, irrigation systems, agricultural fences, and farm facilities often use galvanized pipes because they can withstand outdoor exposure and humid conditions.

Comparison with Other Steel Pipes

1. Hot Dip Galvanized Pipe vs Cold Galvanized Pipe

Hot dip galvanized pipes feature a thicker zinc coating and stronger bonding performance compared with electro-galvanized pipes. They are more suitable for outdoor and long-term applications.

Cold galvanized pipes generally have a thinner zinc layer and are mainly used for decorative or indoor applications where corrosion requirements are lower.

2. Hot Dip Galvanized Pipe vs Black Steel Pipe

Black steel pipes have lower initial costs but require additional painting or coating for corrosion protection. Galvanized pipes provide built-in protection and longer service life, making them more suitable for exposed environments.

Selection Guide

1. Material Selection

For general water supply, fire protection, and structural applications, Q235B provides an economical and reliable solution. For heavy-duty structures or high-load environments, Q355B is recommended.

2. Coating Quality Inspection

When selecting galvanized pipes, customers should check zinc coating thickness, surface uniformity, adhesion quality, and inspection reports to ensure long-term performance.

3. Application Environment Consideration

Indoor applications may require standard galvanizing, while coastal areas, humid regions, and underground projects should consider higher corrosion protection requirements.

Product Specifications

FAQ

1. What is Hot Dip Galvanized Round Steel Pipe?

Hot dip galvanized round steel pipe is a carbon steel pipe coated with a protective zinc layer through a high-temperature galvanizing process. The zinc coating improves corrosion resistance and extends service life compared with untreated steel pipes.

2. What is the difference between hot dip galvanizing and cold galvanizing?

Hot dip galvanizing forms a thicker zinc layer with stronger adhesion, making it suitable for outdoor and long-term applications. Cold galvanizing provides a thinner protective layer and is mainly used for light corrosion environments.

3. What material grades are commonly used?

Q235B is the most common choice for general applications, while Q355B is selected for projects requiring higher strength, such as structural supports and solar mounting systems.

4. Can ZHONGTIAN provide customized galvanized pipes?

Yes. ZHONGTIAN can provide customized diameters, wall thicknesses, lengths, surface requirements, and inspection documents according to customer project specifications.

5. How long can galvanized steel pipes last?

Service life depends on the installation environment and coating quality. Under suitable conditions, hot dip galvanized pipes can provide decades of corrosion protection with limited maintenance.
