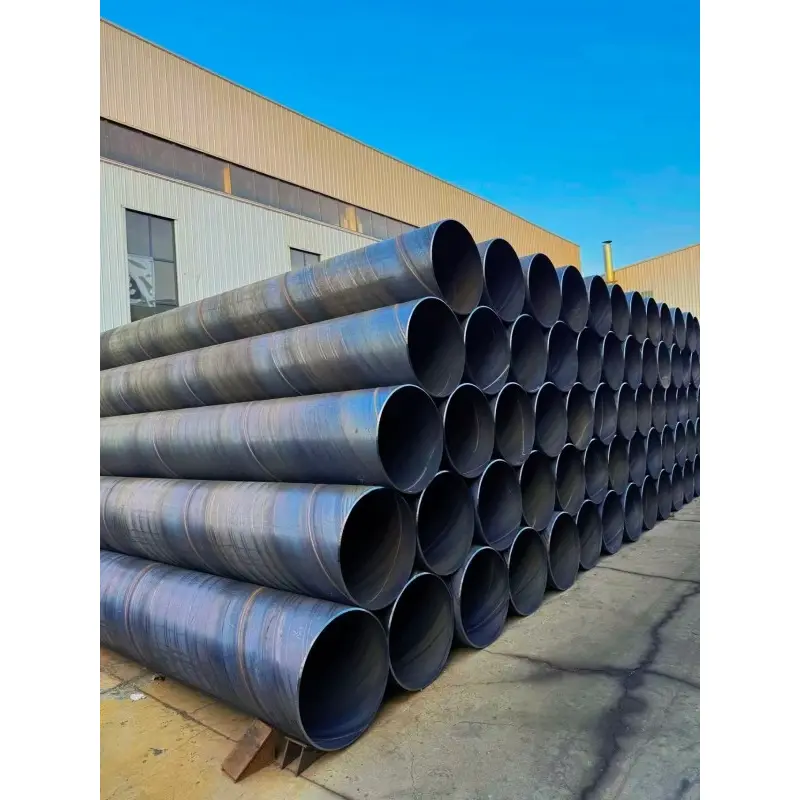

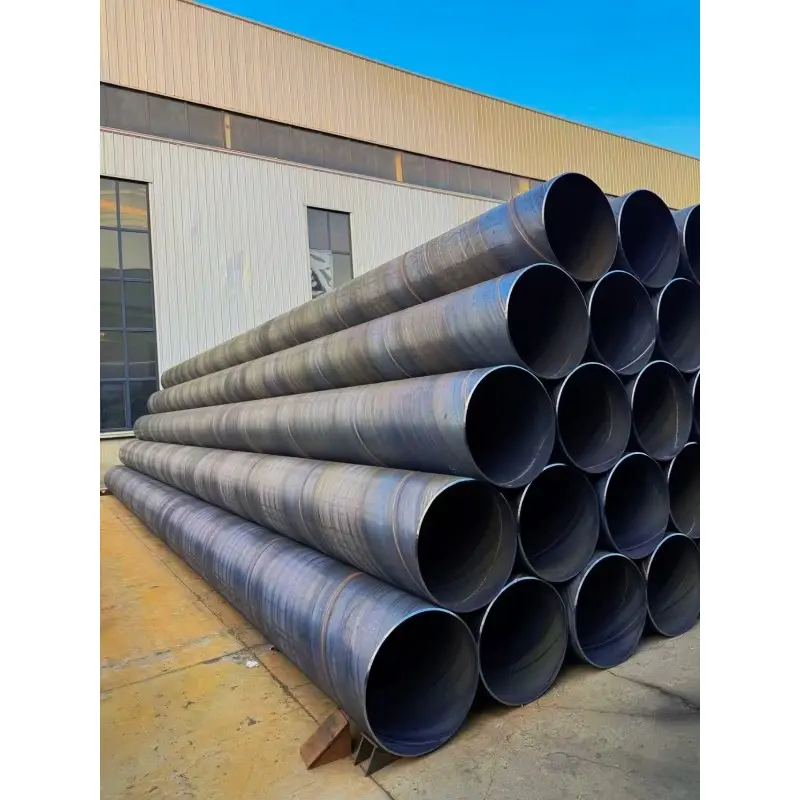

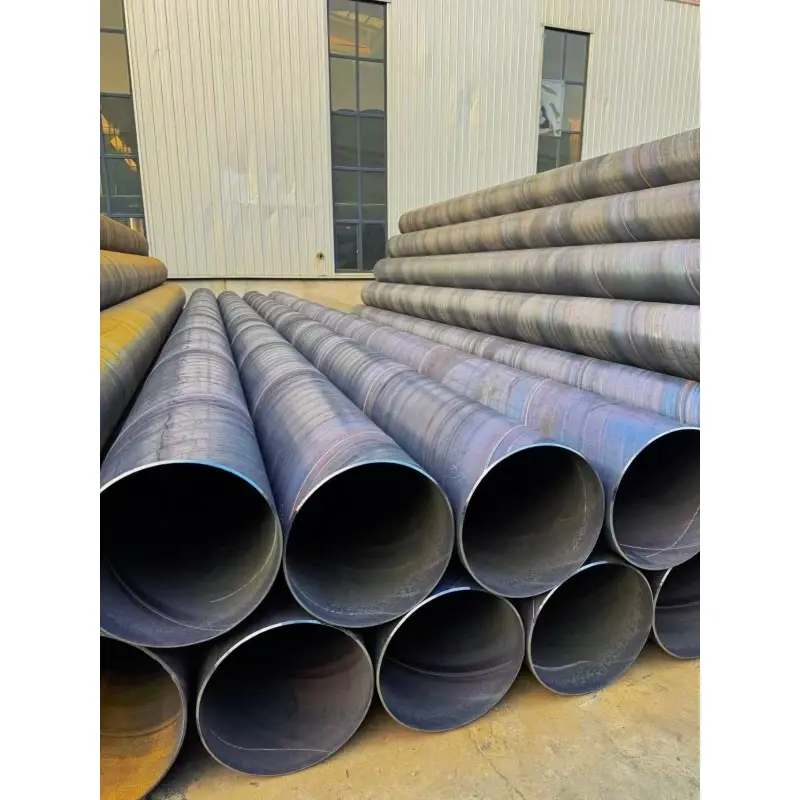

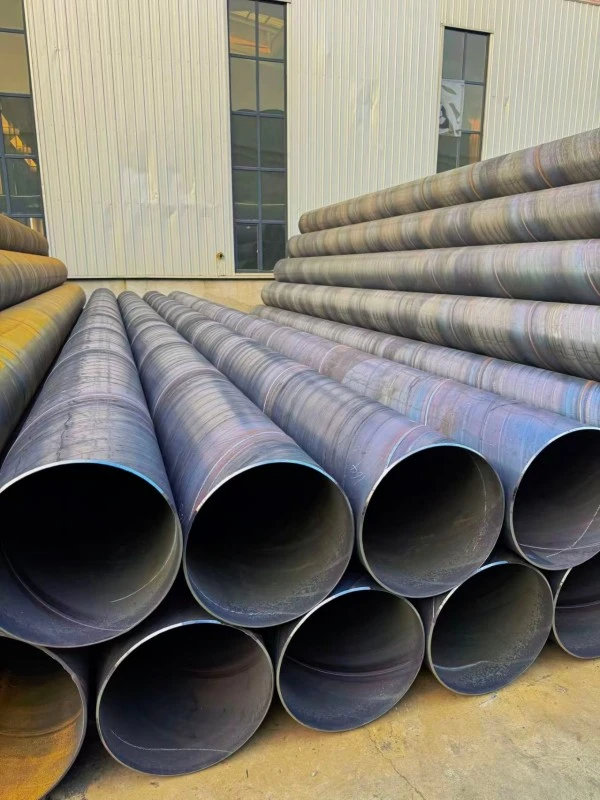

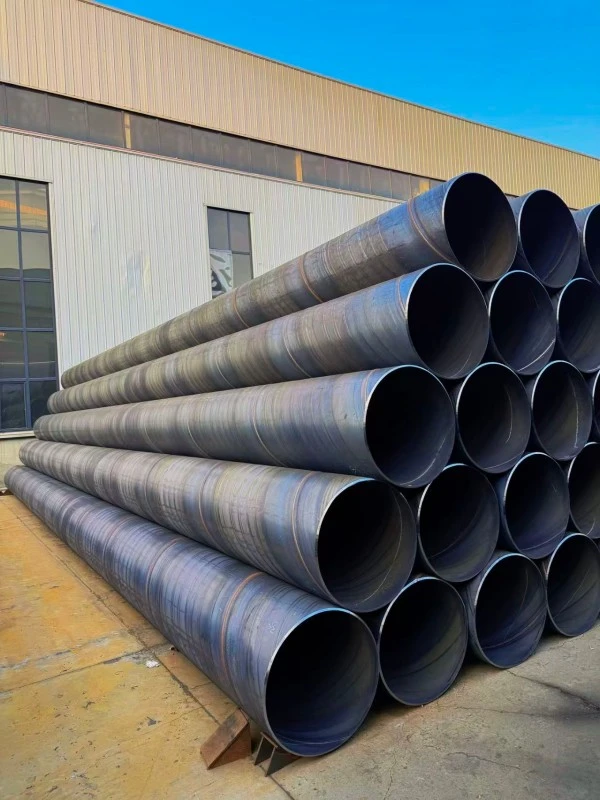

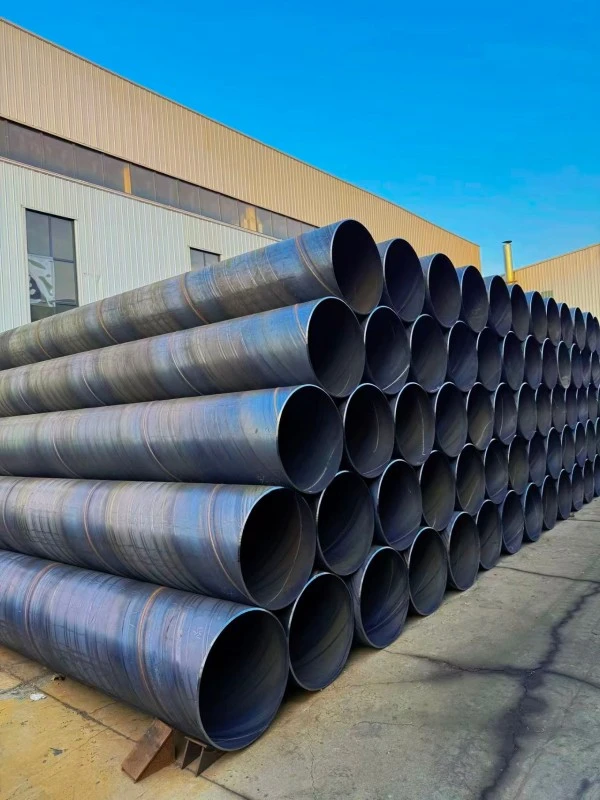

Black Spiral Welded Steel Pipe

Black Spiral Welded Steel Pipe refers to spiral welded steel pipe that leaves the factory without additional surface protection layers.

The pipe is manufactured through spiral forming and double-sided submerged arc welding technology. After welding inspection and quality testing, the pipe surface is maintained in its original steel condition, which usually appears dark gray or black due to the steel surface oxide layer.

Unlike 3PE coated or painted spiral pipes, black spiral pipes are mainly selected when customers need further processing, temporary usage, or cost-effective steel pipe solutions.

Product Specifications

Main Features of Black Spiral Welded Pipe

1. Lower Initial Cost Without Factory Coating

Since black spiral welded steel pipes do not include additional anti-corrosion processing before delivery, the purchasing cost is lower than coated spiral welded pipes.

For temporary construction projects or customers who perform their own coating operations, black pipes can significantly reduce initial investment.

2. Suitable for Customized Surface Treatment

The uncoated surface provides flexibility for later processing.

After surface preparation, customers can apply different protection systems according to environmental conditions, including painting, epoxy coating, IPN8710 coating, or 3PE anti-corrosion systems.

3. Maintains Original SSAW Mechanical Performance

Removing the coating process does not affect the basic mechanical properties of the steel pipe.

Black Spiral Welded Steel Pipe still provides the advantages of SSAW technology, including stable weld quality, good ring stiffness, and resistance against external mechanical loads.

4. Wide Range of Sizes and Applications

Black SSAW Steel Pipe can be produced in various diameters and wall thicknesses.

From medium diameter construction applications to large diameter engineering projects, different specifications can be selected according to project requirements.

Typical Applications

1. Pile Foundation and Construction Support

Black spiral welded steel pipes are widely used as pile casing, foundation sleeves, and temporary support structures.

These applications usually focus on structural strength rather than long-term corrosion resistance, making uncoated pipes a practical choice.

2. Industrial Indoor Pipeline Systems

For dry indoor environments, black spiral welded pipes can be used in factory circulation systems, ventilation pipelines, and equipment supporting pipelines.

The absence of coating helps simplify installation and reduces unnecessary processing costs.

3. Secondary Anti-Corrosion Pipeline Projects

Many engineering contractors prefer black pipes because they can apply their own anti-corrosion systems after installation preparation.

This is common in water projects, industrial pipelines, and infrastructure projects requiring specific coating standards.

4. Temporary Engineering Projects

For temporary water supply, construction pipelines, temporary supports, and short-term structures, black spiral welded steel pipe provides an economical solution.

After project completion, the pipe can be reused or processed according to future requirements.

Black Pipe vs Anti-Corrosion Spiral Pipe

Manufacturing and Quality Control

1. Spiral Forming Process

Steel coils are prepared, leveled, and formed into spiral pipe shapes according to required specifications. The forming process ensures accurate diameter and stable pipe geometry.

2. Double-Sided Submerged Arc Welding

The internal and external spiral seams are welded using submerged arc welding technology. This process provides reliable weld strength and stable mechanical performance.

3. Inspection Before Delivery

Finished pipes undergo weld inspection, dimensional inspection, and hydraulic testing according to project requirements. After quality confirmation, pipes are supplied without external coating treatment.

Anti-Corrosion Recommendation and Service Life

1. Surface Treatment Selection According to Working Environment

Black Spiral Welded Steel Pipe is supplied without factory anti-corrosion coating, so the protection method should be selected according to the actual operating environment.

For dry indoor applications or short-term engineering use, the original steel surface may meet basic requirements. For outdoor exposure, underground installation, or corrosive environments, additional coating treatment is required before use.

2. Common Anti-Corrosion Methods

For underground water pipelines and industrial applications, epoxy coal tar coating, IPN8710 coating, or 3PE anti-corrosion systems can be applied after surface preparation.

For above-ground pipelines, steel structures, and factory applications, anti-rust primer combined with surface paint is commonly used to improve corrosion resistance.

3. Service Life Reference

The service life of Black Spiral Welded Steel Pipe depends mainly on whether additional protection is applied and the surrounding environment.

Without coating protection, exposed outdoor pipes may develop visible rust within several months. After proper anti-corrosion treatment, the service life can be comparable to coated spiral welded steel pipes and may reach 15–30 years depending on conditions.

Selection Guide

1. Determine Whether Secondary Coating Is Required

The first consideration when selecting Black Spiral Welded Steel Pipe is the installation environment.

For temporary structures, indoor dry pipelines, or projects with planned coating processes, black pipe provides good cost efficiency. For permanent outdoor or underground pipelines, additional anti-corrosion treatment should be arranged before installation.

2. Choose According to Project Duration

Black spiral welded pipes are commonly selected for temporary construction projects because they avoid unnecessary coating costs.

For permanent infrastructure projects requiring long-term operation, customers should consider complete anti-corrosion solutions based on service conditions.

3. Match Pipe Strength With Application Requirements

The absence of surface coating does not change the basic mechanical properties of spiral welded steel pipe.

Diameter, wall thickness, and steel grade should still be selected according to pressure, external load, installation method, and structural requirements.

Application Case

Temporary Foundation Support Project

ZHONGTIAN supplied Black Spiral Welded Steel Pipe for a construction foundation support project. Since the pipes were mainly used as temporary casing components, the customer selected uncoated spiral welded pipes to reduce project costs.

The supplied pipes were manufactured with required diameter and wall thickness, inspected through standard quality procedures, and later processed according to the customer's construction requirements.

This application shows the cost advantage and flexibility of Black SSAW Steel Pipe in temporary engineering and construction support projects.

FAQ

1. Can Black Spiral Welded Steel Pipe Be Used Directly Underground?

Generally, it is not recommended for permanent underground applications without protection.

Because the surface has no anti-corrosion coating, direct burial may cause accelerated corrosion, wall thickness reduction, and shortened service life. Proper coating treatment should be applied according to soil conditions and project requirements.

2. What Is the Difference Between Black Spiral Welded Pipe and Anti-Corrosion Spiral Pipe?

The main difference is the surface protection condition.

Black Spiral Welded Steel Pipe is supplied with a bare steel surface and allows customers to perform customized coating. Anti-corrosion spiral pipe has already received protective treatment before delivery and can be used directly in applications requiring corrosion resistance.

3. Can Black Spiral Welded Steel Pipe Be Used for Greenhouse Structures?

It is generally not recommended for ordinary greenhouse structures.

The pipe diameter and weight are usually higher than common greenhouse galvanized tubes, and the uncoated surface is more vulnerable to corrosion. Galvanized round pipes or oval tubes are normally more suitable for greenhouse applications.

4. Is the Surface Suitable for Painting After Delivery?

Yes. Black spiral welded steel pipe is commonly used for secondary coating processes.

After proper surface cleaning and rust removal, coatings such as epoxy paint, anti-rust paint, and other protection systems can achieve good adhesion performance.

5. Why Do Some Projects Choose Black SSAW Steel Pipe Instead of Coated Pipe?

The main reason is flexibility and cost control.

When customers have their own coating process or when the project is temporary, purchasing black spiral welded pipe avoids paying for unnecessary factory coating while keeping the structural advantages of SSAW steel pipe.

Why Choose ZHONGTIAN Black Spiral Welded Steel Pipe?

1. Flexible Supply Without Unnecessary Processing

ZHONGTIAN provides Black Spiral Welded Steel Pipe without factory coating treatment, allowing customers to select their own surface protection methods according to project requirements.

2. Complete SSAW Manufacturing Capability

With spiral forming, double-sided submerged arc welding, and inspection procedures, ZHONGTIAN supplies steel pipes with stable dimensions, reliable weld quality, and consistent performance.

3. Suitable for Customized Engineering Applications

From temporary construction projects to industrial pipelines and secondary anti-corrosion projects, ZHONGTIAN provides customized solutions based on diameter, wall thickness, material grade, and application conditions.
