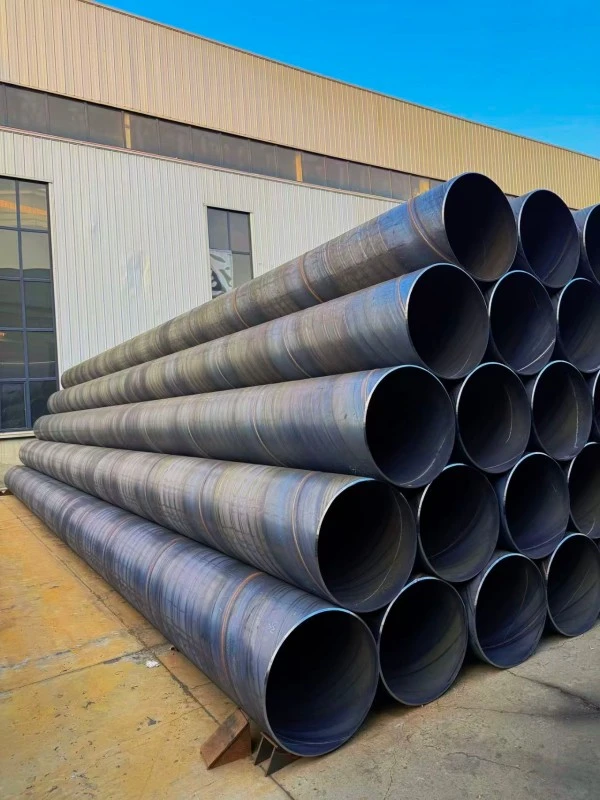

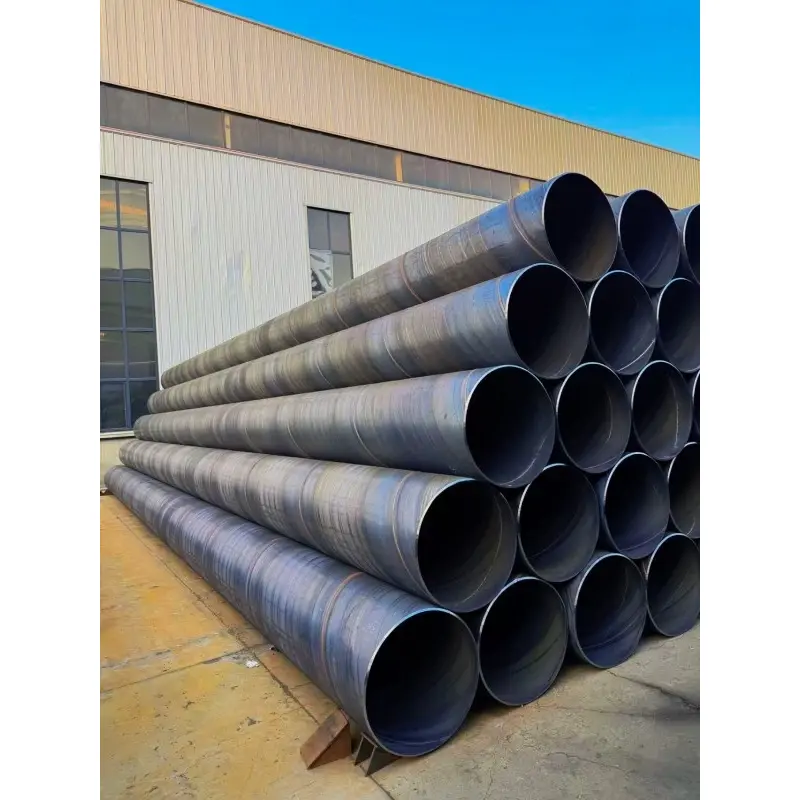

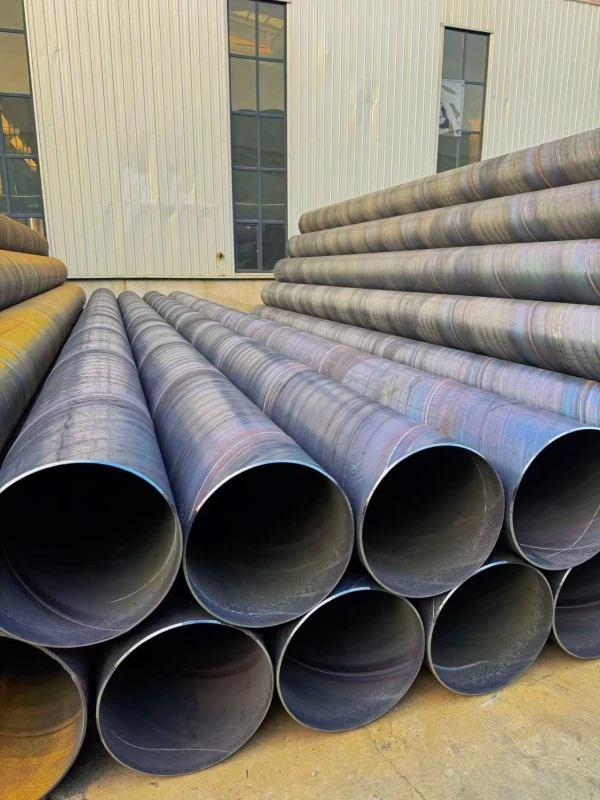

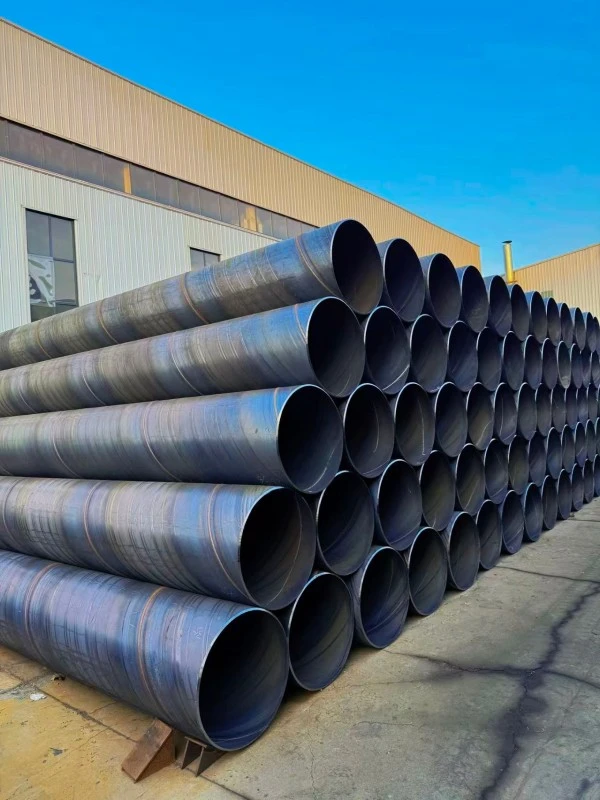

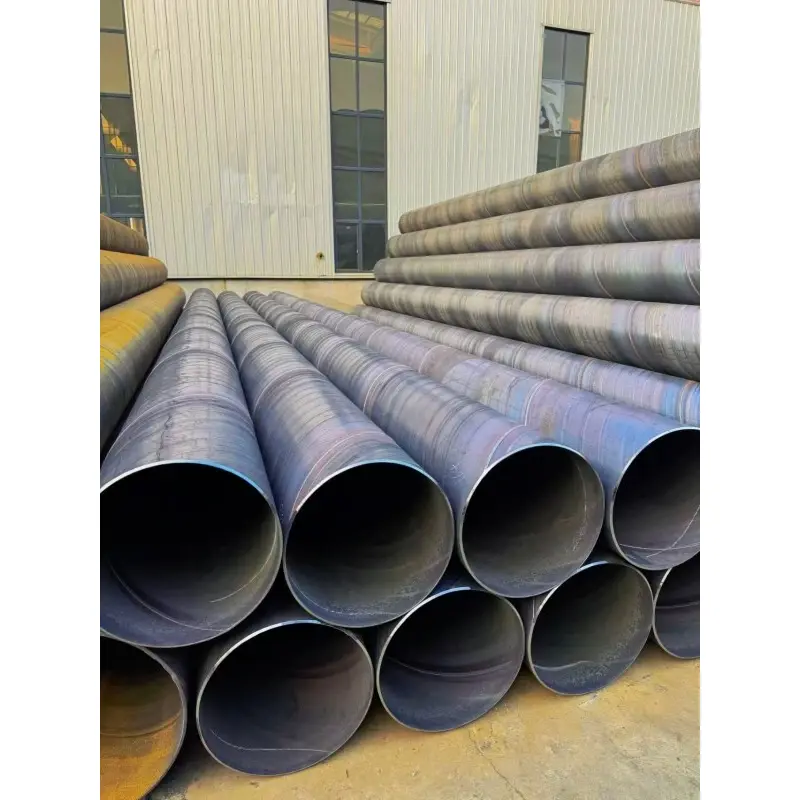

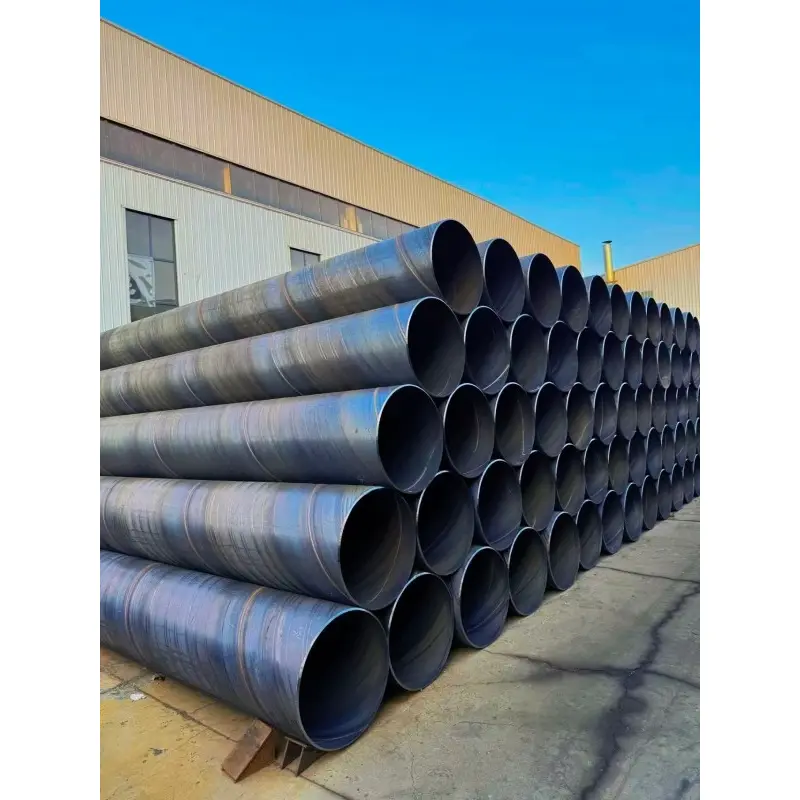

Small Diameter Spiral Welded Steel Pipe

Small Diameter Spiral Welded Steel Pipe is a spiral welded steel pipe developed for medium and small diameter pipeline applications where structural reliability and economic efficiency are both required. Compared with large diameter spiral welded pipes, it is designed with a more compact diameter range while maintaining the advantages of spiral forming technology, including flexible production capability, stable pipe strength, and adaptable wall thickness selection.

In general industry classification, spiral welded steel pipes with outer diameters below DN800 (φ820mm) are commonly considered small diameter spiral welded steel pipes, with mainstream specifications ranging from φ219mm to φ720mm. The product is manufactured from hot rolled steel coils through spiral forming, internal and external submerged arc welding, and strict quality inspection processes to ensure consistent performance in different engineering environments.

Why Spiral Welding Technology Is Used for Small Diameter Pipes？

For some small diameter pipeline applications, traditional straight seam pipes may not provide enough flexibility in specification selection, especially when projects require special wall thickness, higher strength, or better resistance against external loads.

The spiral welding process allows continuous pipe forming from steel coils, providing advantages in production efficiency and specification adaptability.

For buried pipelines, industrial branch systems, and engineering support applications, Small Diameter Spiral Welded Steel Pipe offers a practical solution by combining manufacturing flexibility with reliable structural performance.

Product Specifications

Engineering Value of Small Diameter Spiral Welded Pipe

1. Flexible Production Compared With Traditional Pipe Manufacturing

One of the key advantages of Small Diameter Spiral Welded Steel Pipe is its manufacturing flexibility.

The spiral forming process allows production based on different diameter and thickness combinations, which helps meet various engineering requirements without being limited to only standard pipe dimensions.

For projects requiring customized specifications, ZHONGTIAN can provide suitable solutions according to pipeline design, installation environment, and operating conditions.

2. Better Rigidity for Buried Pipeline Applications

Small diameter pipelines are often installed underground and may face external forces from soil pressure, vehicle loads, and ground movement.

Compared with some conventional lightweight pipes, Small Diameter SSAW Steel Pipe provides better structural rigidity due to its welded spiral structure and adjustable wall thickness options.

This makes it suitable for underground branch pipelines, industrial buried pipelines, and engineering applications requiring higher resistance against deformation.

3. Balanced Performance Between Cost and Strength

Not every pipeline project requires premium seamless steel pipes.

For normal temperature, low and medium pressure transportation systems, Small Diameter Spiral Welded Steel Pipe can provide sufficient mechanical performance while reducing material and procurement costs.

This balance between strength and economy makes it suitable for projects that focus on total construction efficiency.

4. Multiple Material Options for Different Conditions

Different transportation mediums and environments require different steel performance.

ZHONGTIAN provides material options including Q235B, Q355B, L245, and L360. Customers can select suitable steel grades according to pressure requirements, structural loads, and pipeline standards.

This flexibility allows Small Diameter SSAW Steel Pipe to serve various industries instead of being limited to a single application field.

Typical Project Applications

1. Municipal Secondary Pipeline Construction

Small Diameter Spiral Welded Steel Pipe is commonly used in municipal branch pipeline systems, including water distribution branches, drainage networks, industrial park pipelines, and community infrastructure projects.

Compared with major transmission pipelines, these systems usually require more flexible pipe specifications and easier connection with existing networks.

2. Oilfield Collection and Industrial Branch Lines

In oilfields and industrial facilities, small diameter pipelines are often required for collection, distribution, and auxiliary transportation.

Small Diameter SSAW Steel Pipe can be used for oilfield gathering lines, factory utility pipelines, process support systems, and other medium and low capacity transportation applications.

3. Construction Sleeves and Foundation Protection

Due to its good rigidity and structural stability, this type of steel pipe can be used as protective sleeves, construction casings, and foundation-related auxiliary components.

Applications include small and medium pile casing projects, crossing protection sleeves, and underground engineering support structures.

4. Agricultural and Regional Water Systems

Agricultural irrigation and regional water supply projects often require pipelines with reasonable cost and reliable service performance.

Small Diameter Spiral Welded Steel Pipe can be used in farmland irrigation systems, small pumping station pipelines, drainage systems, and regional water transportation projects.

5. Factory Utility Pipeline Networks

Industrial plants require various supporting pipelines for water circulation, ventilation, and process transportation.

Small Diameter SSAW Steel Pipe can be applied in factory utility systems where stable operation, flexible installation, and cost control are important factors.

Manufacturing Quality Control

1. Steel Coil Selection and Preparation

Production begins with qualified hot rolled steel coils selected according to required mechanical properties and pipe specifications.

Before forming, steel coils are uncoiled, leveled, and edge processed to ensure stable welding conditions.

2. Spiral Forming Accuracy Control

During the forming process, steel strips are continuously shaped into spiral pipe sections.

Production parameters are carefully controlled to maintain diameter accuracy, roundness, and consistent pipe dimensions.

3. Weld Seam Reliability Inspection

The spiral seam is produced using internal and external submerged arc welding technology.

The welding process provides strong bonding performance, while non-destructive testing methods such as ultrasonic testing and X-ray inspection help ensure weld reliability.

4. Finished Pipe Performance Verification

Before shipment, finished pipes undergo dimensional inspection, hydraulic testing, and surface quality checks.

According to customer requirements, additional coating treatment, beveling, and customized processing can be provided.

Specification Selection Considerations

1. Selecting Pipe Diameter Based on Flow Demand

The pipe diameter should be determined according to required transportation capacity and system design.

For branch pipelines and medium-scale transportation systems, small diameter SSAW pipes provide sufficient flow performance while reducing unnecessary investment.

2. Choosing Wall Thickness According to External Load

Wall thickness selection should consider not only internal pressure but also installation conditions.

For buried pipelines, areas with heavy soil pressure, vehicle loads, or unstable ground conditions may require increased wall thickness to improve deformation resistance.

3. Selecting Steel Grade According to Service Environment

For general engineering applications, Q235B is commonly selected.

For higher strength requirements, Q355B can be used. Pipeline applications requiring improved mechanical properties may select L245 or L360 materials.

Application Comparison

ZHONGTIAN Manufacturing Capability

1. Customized Small Diameter SSAW Production

ZHONGTIAN provides customized Small Diameter Spiral Welded Steel Pipe solutions with different diameters, wall thicknesses, material grades, and surface treatments.

The production capability allows customers to select suitable specifications according to actual project requirements.

2. Stable Quality Control System

From raw material inspection to finished product testing, ZHONGTIAN follows controlled manufacturing procedures.

Through welding inspection, dimensional control, and pressure testing, the company ensures reliable pipe quality for long-term applications.

3. Engineering-Oriented Supply Service

ZHONGTIAN focuses not only on steel pipe manufacturing but also on providing suitable product solutions according to application conditions.

For municipal, industrial, construction, and infrastructure projects, customized support is available from specification selection to final delivery.

Application Case

Municipal Water Distribution Pipeline Project

ZHONGTIAN supplied Small Diameter Spiral Welded Steel Pipe for a municipal water distribution pipeline project. The pipes were customized with suitable diameter, wall thickness, and anti-corrosion treatment according to underground installation requirements.

The project required stable pipeline performance, reliable weld quality, and cost-effective construction. Through spiral forming and double-sided submerged arc welding technology, the supplied steel pipes achieved good structural strength and long-term operation reliability.

This application demonstrates the suitability of Small Diameter SSAW Steel Pipe for municipal branch pipelines and medium-scale underground transportation systems.

Anti-Corrosion Protection and Service Life

Small Diameter Spiral Welded Steel Pipe can be protected with different anti-corrosion solutions according to application conditions. For buried municipal pipelines, epoxy coal tar coating and IPN8710 coating are commonly used to improve resistance against soil moisture and corrosion.

For oilfield and industrial pipeline systems requiring higher protection levels, 3PE coating can provide enhanced corrosion resistance and mechanical protection. For above-ground applications, anti-rust primer and surface painting systems help reduce atmospheric corrosion and maintain long-term performance. The service life depends on coating type, operating environment, soil conditions, and maintenance requirements.

FAQ

What Is the Difference Between Small Diameter SSAW Steel Pipe and Straight Seam Steel Pipe?

Small Diameter SSAW Steel Pipe is manufactured through spiral forming technology, offering flexible diameter and wall thickness options. Straight seam steel pipes are mainly used for standard small diameter applications with simpler production processes.

The suitable choice depends on project requirements, pipeline conditions, and cost considerations.

Is Small Diameter Spiral Welded Steel Pipe Suitable for High Pressure Applications?

Yes, it can be used for medium-pressure and some high-pressure applications when proper material grade, wall thickness, and testing requirements are selected.

For extreme pressure or high-temperature conditions, other specialized pipe solutions may be required.

Can Small Diameter SSAW Steel Pipe Replace Seamless Steel Pipe?

In many normal temperature and medium-pressure applications, Small Diameter Spiral Welded Steel Pipe can replace seamless steel pipe with better cost efficiency.

However, seamless pipes may still be preferred for applications requiring very high pressure resistance or strict precision.

What Is the Minimum Size of Small Diameter Spiral Welded Steel Pipe?

The commonly produced minimum size is around φ219mm (DN200). Smaller diameters are usually manufactured using other welding methods due to production efficiency considerations.

Can It Be Used for Underground Pipelines?

Yes. With suitable coating and wall thickness selection, Small Diameter Spiral Welded Steel Pipe is widely used in underground water supply, drainage, industrial pipelines, and engineering projects.

Conclusion

Small Diameter Spiral Welded Steel Pipe offers flexible specifications, reliable performance, and cost-effective solutions for municipal, industrial, water, and oilfield pipeline systems.

As a professional Small Diameter SSAW Steel Pipe manufacturer in China, ZHONGTIAN provides customized steel pipe solutions with stable production capability and strict quality control.
