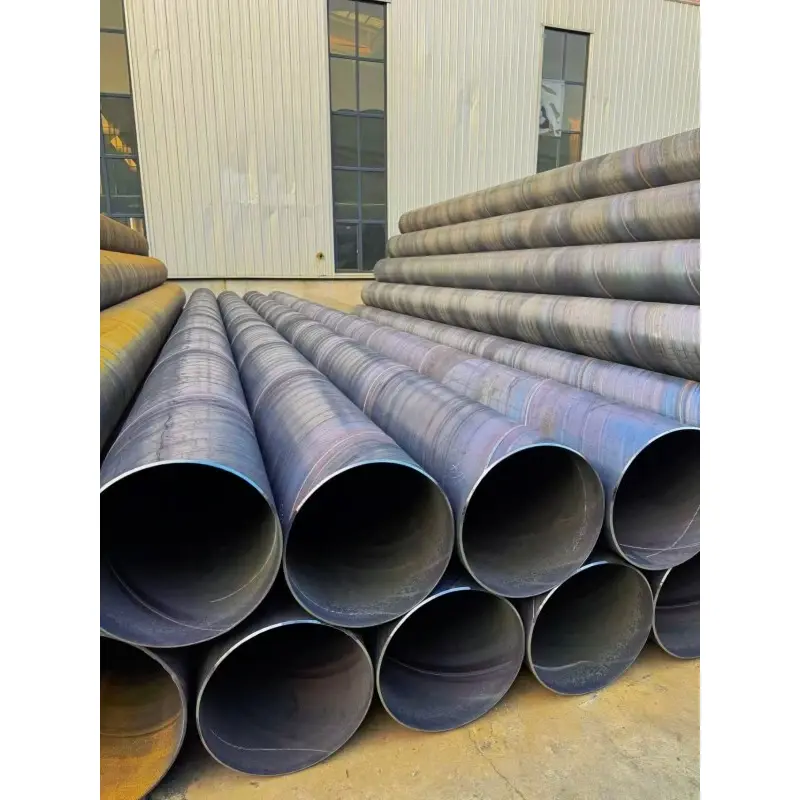

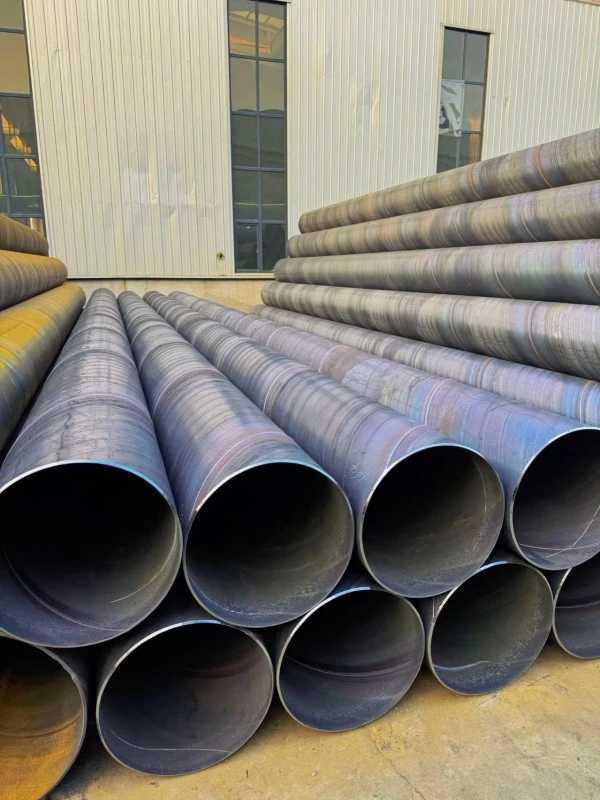

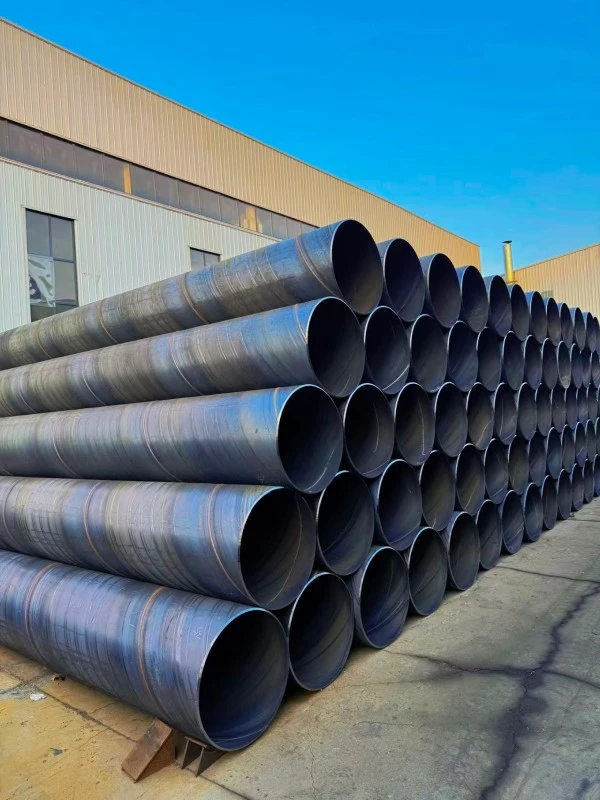

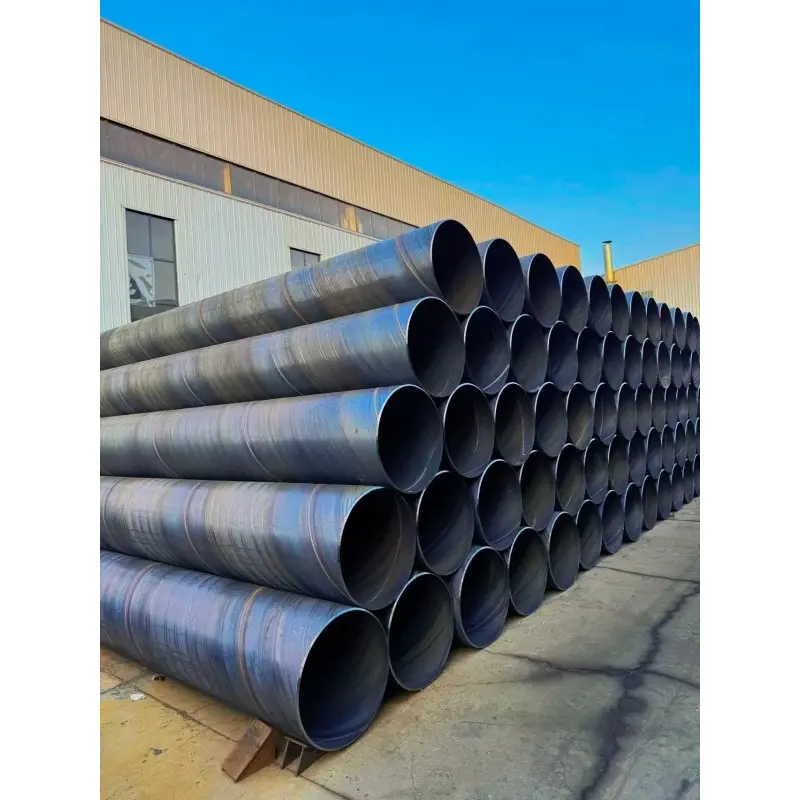

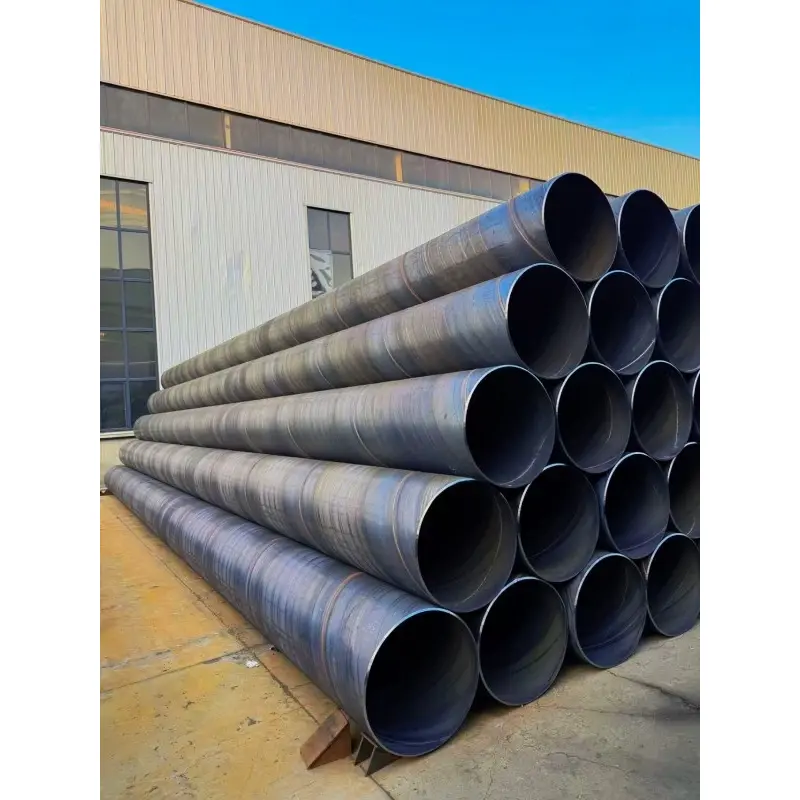

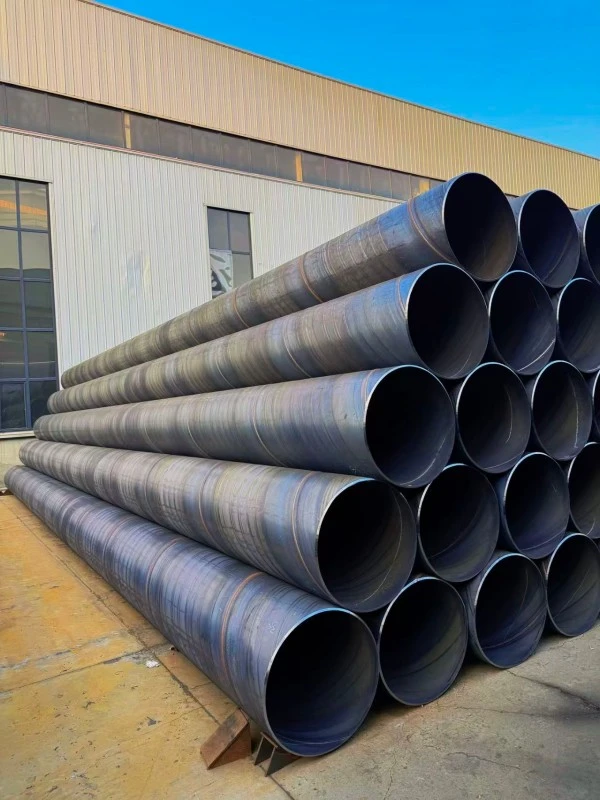

Thick Wall Spiral Welded Steel Pipe

ZHONGTIAN provides customized Thick Wall Spiral Welded Steel Pipe solutions in China, supplying reliable large diameter steel pipes for oil and gas pipelines, high-pressure fluid transportation, bridge pile foundations, water conservancy projects, and heavy structural applications. With stable production capacity, strict quality control, and flexible specifications, ZHONGTIAN supports global engineering projects with high-performance steel pipe products.

Heavy-Duty Steel Pipe Solution for Challenging Engineering Conditions

1. Designed for High Pressure and Heavy Load Applications

Thick Wall Spiral Welded Steel Pipe is developed for projects where ordinary steel pipes cannot provide sufficient strength and stability. The increased wall thickness improves the pipe's ability to withstand internal pressure, external impact, soil pressure, and long-term mechanical loads.

For large-scale infrastructure projects, this type of SSAW steel pipe provides a reliable solution where safety, durability, and structural strength are key considerations.

2. Suitable for Complex Geological and Underground Environments

In deep buried pipelines, mountainous areas, mining regions, and areas with unstable soil conditions, pipelines may face significant external forces from surrounding environments.

The thick wall structure of Thick Wall SSAW Steel Pipe provides improved resistance against compression, deformation, and uneven settlement, helping maintain stable operation under challenging installation conditions.

3. Combination of Pipeline Performance and Structural Strength

Unlike ordinary fluid transportation pipes, Thick Wall Spiral Welded Steel Pipe can also serve structural purposes due to its high mechanical strength.

Its excellent bending resistance, impact resistance, and load-bearing capability allow it to be used in pile foundations, support structures, temporary retaining systems, and heavy engineering projects.

Product Characteristics

1. High Pressure Bearing Capability

The main advantage of Thick Wall Spiral Welded Steel Pipe is its excellent pressure resistance.

The thicker steel wall provides greater strength against internal pressure, reducing the possibility of pipe expansion, deformation, and leakage during long-term operation. It is suitable for medium and high-pressure fluid transportation systems requiring higher safety standards.

2. Strong Resistance Against External Mechanical Stress

For buried pipelines and heavy-duty applications, external forces can significantly affect pipe performance.

Thick Wall SSAW Steel Pipe features high ring stiffness and strong resistance against soil pressure, rock impact, and ground movement. This makes it suitable for deep underground pipelines, mountain crossing projects, and areas with complicated geological conditions.

3. Excellent Structural Load Performance

Due to its strong mechanical properties, Thick Wall Spiral Welded Steel Pipe can withstand greater bending, compression, and impact forces.

It is widely used in engineering structures such as bridge foundations, construction pile casings, large supporting columns, and heavy steel frameworks where structural reliability is required.

4. Stable Spiral Welding Performance

The spiral welded structure provides continuous welding along the pipe body and helps distribute stress more evenly.

Combined with double-sided submerged arc welding technology, the pipe achieves stable weld quality and reliable mechanical performance, making it suitable for demanding engineering environments.

5. Large Diameter and Heavy Wall Customization

One important advantage of Thick Wall SSAW Steel Pipe is its flexible manufacturing capability for large diameter and heavy wall specifications.

ZHONGTIAN can customize pipe diameter, wall thickness, steel grade, length, and surface treatment according to project requirements, providing solutions for different engineering conditions.

Main Engineering Applications

1. Oil and Gas Transmission Pipelines

Thick Wall Spiral Welded Steel Pipe is widely used in long-distance oil and gas transmission systems, including natural gas pipelines, crude oil transportation pipelines, refined oil pipelines, and oilfield gathering systems.

The high-strength structure provides reliable performance under medium and high-pressure transportation conditions, especially for projects requiring long service life and stable operation.

2. Bridge Foundation and Pile Engineering

Due to its high structural strength and large diameter capability, Thick Wall SSAW Steel Pipe is commonly used as pile casing for bridges, ports, high-rise buildings, railway projects, and large infrastructure construction.

The thick wall structure provides excellent support performance, helps prevent soil collapse during construction, and improves foundation stability.

3. Water Conservancy and Large Water Transmission Projects

Large reservoirs, pumping stations, flood control systems, and water diversion projects often require steel pipes with high pressure resistance and strong structural stability.

Thick Wall Spiral Welded Steel Pipe provides a suitable solution for high-load water transportation applications, underground water pipelines, and large hydraulic engineering projects.

4. Industrial High Pressure Pipeline Systems

In chemical plants, power stations, and industrial facilities, Thick Wall SSAW Steel Pipe can be used for industrial fluid transportation, cooling water systems, and heavy-duty pipeline networks.

The product provides stable performance under continuous operation conditions and can be customized with corrosion protection according to the working environment.

5. Heavy Steel Structure Applications

Because of its excellent mechanical strength, Thick Wall Spiral Welded Steel Pipe can be applied in heavy steel structures, including large industrial columns, equipment support structures, bridge auxiliary supports, and engineering frameworks.

It provides a combination of tubular strength, manufacturing flexibility, and cost efficiency.

Production Technology

1. High Strength Steel Material Preparation

The production of Thick Wall Spiral Welded Steel Pipe begins with carefully selected hot rolled steel strips.

According to application requirements, materials such as Q235B, Q355B, L245, L360, X52, X60, and X70 can be selected to achieve different levels of strength, toughness, and pressure performance.

2. Precision Spiral Forming Control

During manufacturing, thick steel strips are continuously formed into spiral pipe shapes under controlled forming conditions.

Strict control of forming accuracy ensures proper pipe roundness, dimensional consistency, and stable performance after welding.

3. Double-Sided Submerged Arc Welding Process

The internal and external spiral seams are welded using double-sided submerged arc welding technology.

This process provides deep weld penetration, strong bonding between weld metal and base metal, and reliable performance under pressure and heavy load conditions.

4. Comprehensive Quality Inspection

Before delivery, each Thick Wall SSAW Steel Pipe undergoes strict inspection procedures, including weld inspection, dimensional testing, ultrasonic testing, X-ray inspection, and hydraulic pressure testing.

ZHONGTIAN follows controlled quality management procedures to ensure every pipe meets customer requirements for strength, accuracy, and durability.

Material and Specification Selection

1. Selecting Wall Thickness According to Working Pressure

The wall thickness of Thick Wall Spiral Welded Steel Pipe should be selected according to the operating pressure, transportation medium, and safety requirements of the pipeline system.

For pipelines with working pressure above 2.5MPa, thick wall spiral welded steel pipes are generally recommended because the increased wall thickness provides stronger pressure resistance and improves long-term operating reliability. For higher pressure or more demanding environments, customized wall thickness designs can be provided according to engineering calculations.

2. Choosing Steel Grade According to Strength Requirements

Different engineering projects require different levels of steel strength.

Q235B is commonly used for general heavy-duty applications with moderate strength requirements. Q355B provides higher yield strength and is suitable for structural applications requiring improved load-bearing performance. L245, L360, X52, X60, and X70 pipeline steels are mainly selected for oil and gas transmission projects where higher strength and pipeline performance are required.

ZHONGTIAN can provide suitable material solutions according to pressure level, installation environment, and project standards.

3. Matching Diameter With Installation Conditions

The diameter selection of Thick Wall SSAW Steel Pipe depends on transportation capacity, construction environment, and engineering requirements.

For large-scale water projects, oil and gas pipelines, and industrial systems, large diameter pipes can reduce the number of pipeline connections and improve transportation efficiency. At the same time, diameter and wall thickness should be matched according to buried depth, external load, and operating pressure to ensure safe service.

4. Selecting Pipe Structure According to Application Requirements

Different applications require different performance priorities.

For fluid transportation projects, pressure resistance and corrosion protection are the main considerations. For pile foundations and structural applications, mechanical strength, impact resistance, and deformation control are more important.

Therefore, Thick Wall Spiral Welded Steel Pipe selection should be based on actual working conditions instead of simply choosing a thicker wall thickness.

Anti-Corrosion Protection and Service Life

1. Three-Layer PE Coating for Underground Transmission Pipelines

For buried oil, gas, and water transmission pipelines, Thick Wall Spiral Welded Steel Pipe is commonly treated with 3PE anti-corrosion coating.

The three-layer polyethylene protection system provides excellent resistance against moisture, soil corrosion, and external damage. Under suitable installation and operating conditions, the service life can reach more than 30 years.

2. Epoxy and IPN8710 Coating for Industrial Environments

For sewage pipelines, chemical transportation systems, and industrial fluid applications, epoxy coating or IPN8710 anti-corrosion treatment can be selected according to the characteristics of the transported medium.

These coatings improve resistance against chemical corrosion and help extend the service life of steel pipes in challenging industrial environments.

3. Surface Painting for Outdoor Structures and Factory Pipelines

For outdoor steel structures, factory pipeline systems, and above-ground applications, Thick Wall SSAW Steel Pipe can be protected through anti-rust primer and surface paint systems.

This method provides effective protection against atmospheric corrosion and is suitable for industrial facilities, supporting structures, and outdoor engineering applications.

4. Simplified Protection for Temporary Pile Applications

For temporary pile casings, construction supports, and short-term engineering applications, simplified anti-rust treatment may be sufficient depending on project requirements.

This helps reduce unnecessary costs while maintaining basic protection during the service period.

Why Choose ZHONGTIAN Thick Wall Spiral Welded Steel Pipe?

1. Large Diameter Heavy Wall Manufacturing Capability

ZHONGTIAN is a professional Thick Wall Spiral Welded Steel Pipe manufacturer and supplier in China, specializing in large diameter SSAW steel pipe production.

With advanced spiral forming and double-sided submerged arc welding technology, ZHONGTIAN can manufacture heavy wall steel pipes for demanding applications requiring high strength, large diameter, and reliable performance.

2. Customized Solutions for Complex Engineering Projects

Different projects have different requirements for diameter, wall thickness, material grade, length, and corrosion protection.

ZHONGTIAN provides customized Thick Wall SSAW Steel Pipe solutions based on actual engineering conditions, helping customers select suitable pipe specifications for oil and gas, water conservancy, construction, and industrial projects.

3. Strict Quality Control and Reliable Product Performance

Quality control is applied throughout the entire production process, from raw material inspection and forming control to welding inspection and final testing.

Through ultrasonic testing, X-ray inspection, hydraulic testing, and dimensional inspection, ZHONGTIAN ensures stable product quality and reliable performance for long-term applications.

4. Experience in Infrastructure and Industrial Applications

Thick Wall Spiral Welded Steel Pipe requires not only manufacturing capability but also practical application experience.

ZHONGTIAN provides steel pipe solutions for infrastructure projects, municipal engineering, industrial pipelines, and heavy-duty structural applications, helping customers achieve efficient and reliable project implementation.

FAQ

1. Can Thick Wall Spiral Welded Steel Pipe Be Used as Pile Casing?

Yes. Thick Wall Spiral Welded Steel Pipe is widely used as pile casing in bridge construction, port projects, railway foundations, high-rise buildings, and large infrastructure projects.

Its thick wall structure provides high strength, good deformation resistance, and effective protection against soil pressure and collapse during foundation construction. For large diameter pile foundations, it is one of the commonly selected steel pipe solutions.

2. Can Thick Wall and Thin Wall Spiral Welded Steel Pipes Be Used Together in One Pipeline?

It is generally not recommended to mix thick wall and thin wall spiral welded steel pipes in the same pipeline system without engineering evaluation.

Because the two types of pipes have different pressure resistance, stiffness, and deformation characteristics, improper combination may cause uneven stress distribution. For important projects, unified specifications are recommended.

3. Can Thick Wall Spiral Welded Steel Pipe Be Used for High Temperature Steam Pipelines?

Standard Thick Wall Spiral Welded Steel Pipe made from common materials such as Q235B and Q355B is generally not designed for high-temperature high-pressure steam systems.

High-temperature steam pipelines require specialized heat-resistant materials and engineering designs. The application suitability should be evaluated according to temperature, pressure, and medium conditions.

4. Does a Thicker Wall Thickness Always Mean Better Quality?

No. The best pipe selection depends on actual working conditions rather than simply increasing wall thickness.

An excessively thick wall increases weight, transportation difficulty, and project cost. A suitable Thick Wall SSAW Steel Pipe solution should consider material grade, welding quality, pipe diameter, pressure requirements, and inspection standards.
