Hot Dip Galvanized Hot Rolled Seamless Steel Pipe

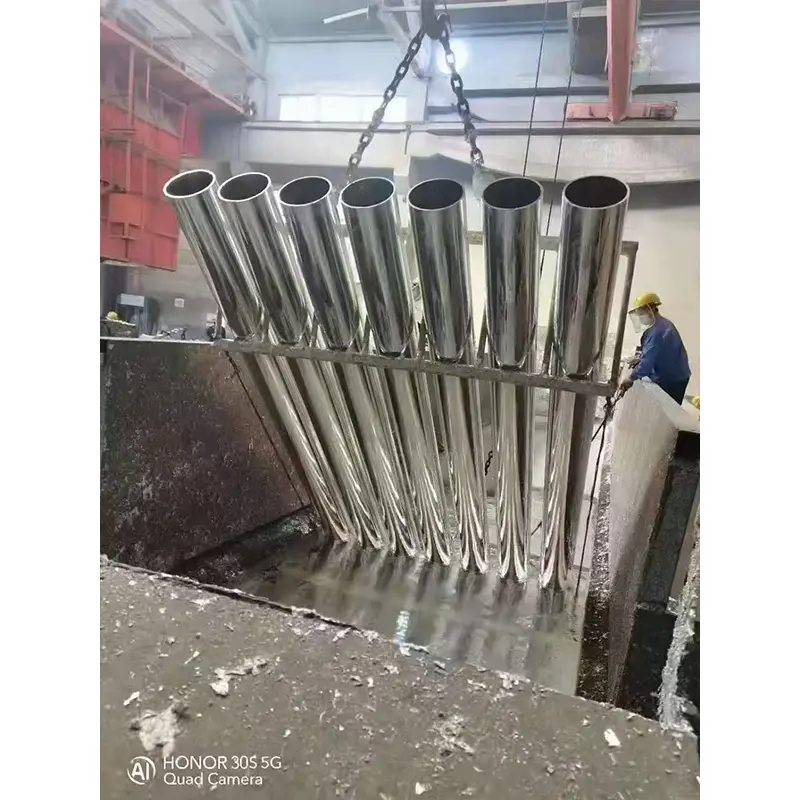

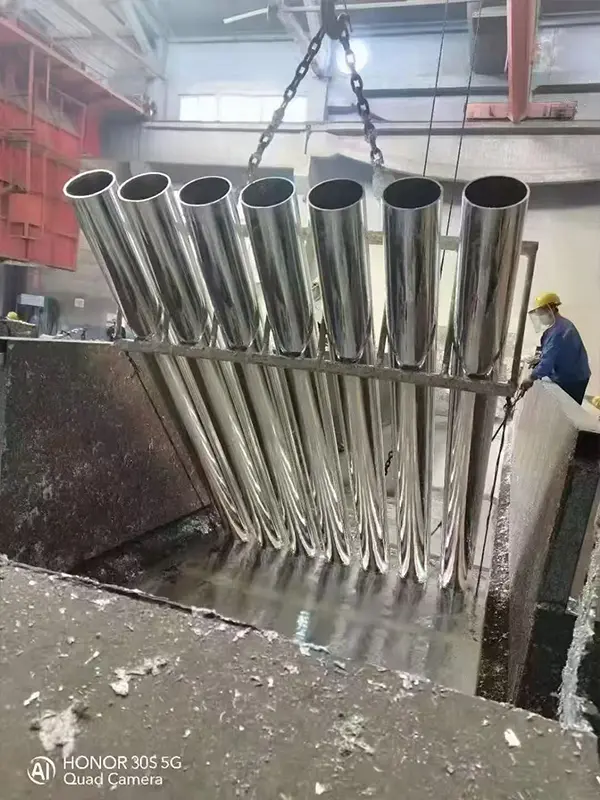

Hot Dip Galvanized Hot Rolled Seamless Steel Pipe is produced by applying hot dip galvanizing treatment to hot rolled seamless steel pipe. The base pipe is manufactured from round steel billets through heating, piercing, hot rolling, sizing, straightening, and inspection processes, creating a pipe body without welded seams. After seamless pipe production, the surface is cleaned through degreasing, pickling, and flux treatment before being immersed in molten zinc at approximately 440–460℃. The zinc reacts with the steel surface to form a zinc-iron alloy layer and outer zinc coating, providing strong adhesion and long-term corrosion protection.

Corrosion Protection Principle

The corrosion protection of Hot Dip Galvanized Seamless Steel Pipe combines barrier protection, sacrificial protection, and self-repair capability. The zinc coating isolates the steel substrate from corrosive environments, while zinc acts as a sacrificial metal that corrodes preferentially to protect the steel. When minor coating damage occurs, zinc corrosion products can help reduce further corrosion development.

Technical Specifications

Key Advantages

1. Weld-Free Structure for High Pressure Applications

The biggest advantage of Hot Dip Galvanized Hot Rolled Seamless Steel Pipe is its seamless structure. Without welded joints, the pipe has more uniform wall thickness and avoids potential weak areas caused by welding seams. This makes it suitable for applications requiring high safety and pressure resistance, including fire protection systems, industrial fluid transportation, and energy pipelines.

2. Long-Term Corrosion Protection

The hot dip galvanized coating provides excellent resistance against atmospheric corrosion, moisture, soil conditions, and industrial environments. Compared with untreated seamless steel pipe, the zinc protection layer significantly extends service life and reduces maintenance requirements, especially in outdoor, humid, or corrosive working conditions.

3. Stable Mechanical Performance

Hot rolled seamless steel pipe provides good strength, toughness, and impact resistance. The galvanizing process is completed without affecting the basic mechanical properties of the steel substrate, allowing the pipe to maintain reliable performance under pressure, structural loads, and complex operating conditions.

4. Suitable for Clean Fluid Transportation

The galvanized surface provides additional protection for water and fluid transportation systems. With proper material selection and compliance with relevant standards, Hot Dip Galvanized Seamless Steel Pipe can be applied in water supply systems, fire pipelines, and other projects requiring corrosion-resistant pipeline materials.

5. Flexible Installation Options

Hot Dip Galvanized Hot Rolled Seamless Steel Pipe can be connected through welding, flange connection, grooved coupling, or other methods according to project requirements. The flexible connection options make installation more convenient for different engineering environments.

Main Applications

1. Fire Protection Pipeline Systems

Hot Dip Galvanized Seamless Steel Pipe is widely used in fire sprinkler systems, hydrant systems, and high-rise building fire protection networks. Its seamless structure and corrosion-resistant coating help maintain stable performance during long-term operation.

2. Oil, Gas, and Industrial Transportation

For oilfield pipelines, industrial circulation systems, chemical fluid transportation, and power plant pipelines, galvanized seamless steel pipe provides reliable strength and corrosion protection. It is suitable for applications where pressure resistance and durability are both required.

3. Municipal Water Supply Projects

The product can be used in municipal water supply systems, pump station pipelines, and pipeline renovation projects. The galvanized coating helps improve resistance against external corrosion and reduces maintenance requirements.

4. Marine and Structural Engineering

Due to its corrosion-resistant surface, Hot Dip Galvanized Hot Rolled Seamless Steel Pipe can be applied in port structures, marine supporting components, bridge engineering, and outdoor steel structures where exposure to moisture and salt spray is possible.

5. Construction and Equipment Support

The pipe is also used for structural supports, foundation components, protective sleeves, and equipment-related pipelines where high strength and corrosion resistance are required.

Comparison With Other Galvanized Steel Pipes

Quality Control and Inspection

1. Seamless Pipe Quality Inspection

Before galvanizing, the seamless steel pipe is inspected for dimensions, chemical composition, mechanical properties, and surface quality. Non-destructive testing can be performed according to project requirements to ensure reliability.

2. Galvanizing Quality Inspection

After hot dip galvanizing, the coating thickness, surface condition, adhesion, and appearance are inspected. Qualified products should have uniform zinc coverage without serious defects such as exposed steel, peeling, or excessive coating accumulation.

3. Performance Verification

According to customer requirements, inspection reports, material certificates, and coating test records can be provided to support project acceptance and quality verification.

Selection Guide

1. Select According to Pressure Requirements

Hot Dip Galvanized Hot Rolled Seamless Steel Pipe is mainly selected for applications requiring higher pressure resistance and safety. The material grade, diameter, and wall thickness should be determined according to operating pressure and transportation medium.

2. Select According to Working Environment

For outdoor, humid, underground, or corrosive environments, galvanized protection provides better durability than untreated steel pipe. For highly corrosive chemical conditions, additional protection measures may be required.

3. Confirm Material and Standards

Before purchasing, customers should confirm steel grade, pipe dimensions, zinc coating thickness, and applicable standards. Material certificates and inspection documents should be checked to ensure product quality.

Application Case

High-Rise Building Fire Protection Pipeline Project

ZHONGTIAN supplied Hot Dip Galvanized Hot Rolled Seamless Steel Pipe for a high-rise building fire protection project. The project required steel pipes with stable pressure performance and long-term corrosion resistance due to strict safety requirements.

The seamless pipe structure provided reliable pressure performance, while the hot dip galvanized coating reduced corrosion risks during long-term service. The customized pipe specifications helped meet the installation requirements of the building fire protection system.

FAQ

1. What Is the Difference Between Hot Dip Galvanized Seamless Steel Pipe and Ordinary Seamless Steel Pipe?

The main difference is the surface protection. Ordinary seamless steel pipe has no corrosion-resistant coating and may require additional treatment in outdoor or humid environments. Hot Dip Galvanized Seamless Steel Pipe has a zinc coating that provides stronger corrosion resistance and extends service life.

2. Why Choose Seamless Steel Pipe Instead of Galvanized Spiral Steel Pipe?

Seamless steel pipe is generally selected for higher pressure applications and projects requiring higher safety performance because it has no welded seam. Galvanized spiral steel pipe is more suitable for larger diameter, lower-pressure pipeline systems where cost efficiency is important.

3. Can Hot Dip Galvanized Seamless Steel Pipe Be Used Outdoors?

Yes. The galvanized coating provides strong protection against atmospheric corrosion and moisture, making it suitable for outdoor applications. The actual service life depends on environmental conditions and maintenance requirements.

4. Does Hot Dip Galvanizing Affect Steel Strength?

No. The hot dip galvanizing process is performed at a temperature that does not significantly affect the basic mechanical properties of the steel pipe. The pipe can maintain its original strength and structural performance after galvanizing.

5. How to Check the Quality of Galvanized Seamless Steel Pipe?

Customers should check material certificates, pipe dimensions, zinc coating thickness, surface condition, and inspection reports. A qualified galvanized seamless steel pipe should have uniform coating, strong adhesion, and no serious surface defects.

Why Choose ZHONGTIAN

ZHONGTIAN provides Hot Dip Galvanized Hot Rolled Seamless Steel Pipe with customized specifications, reliable manufacturing processes, and strict quality control. With professional steel pipe production experience, the company supports different engineering requirements including high-pressure pipelines, corrosion-resistant systems, construction projects, and industrial applications.
