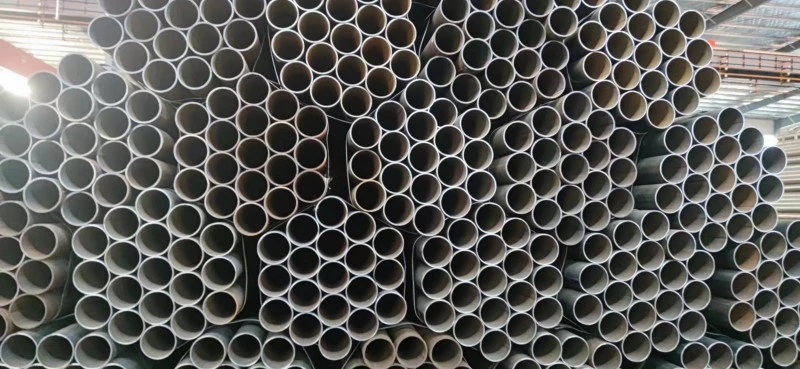

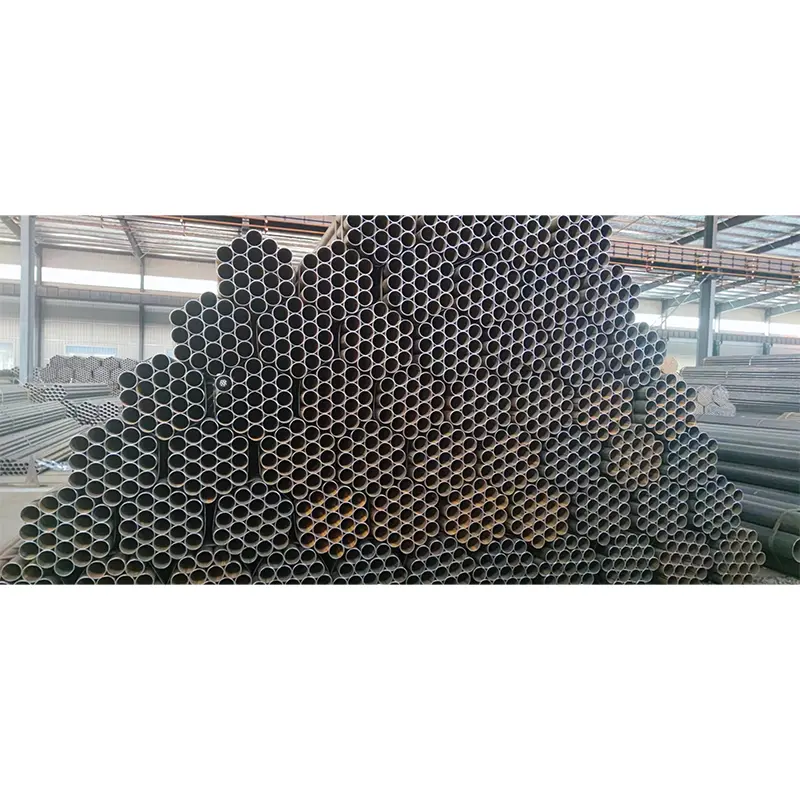

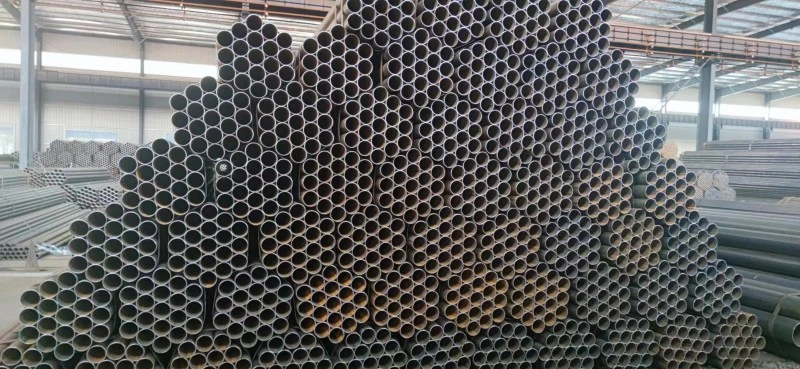

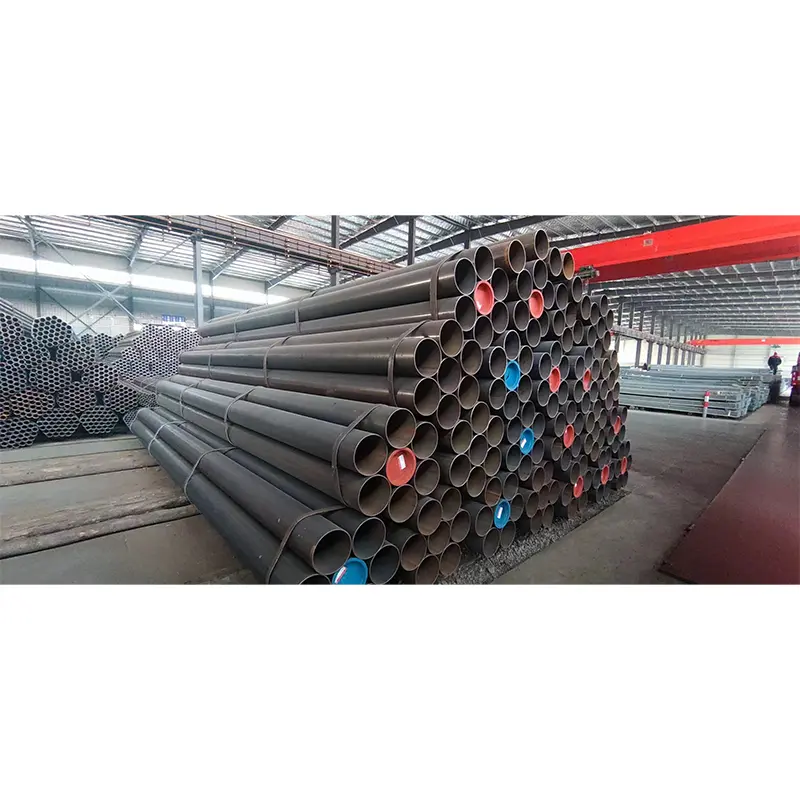

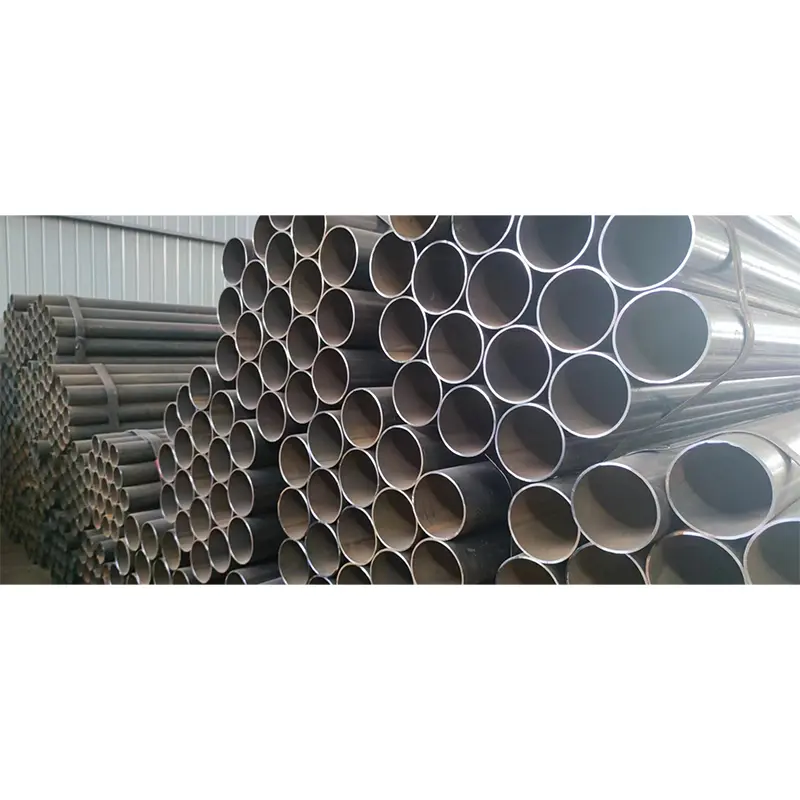

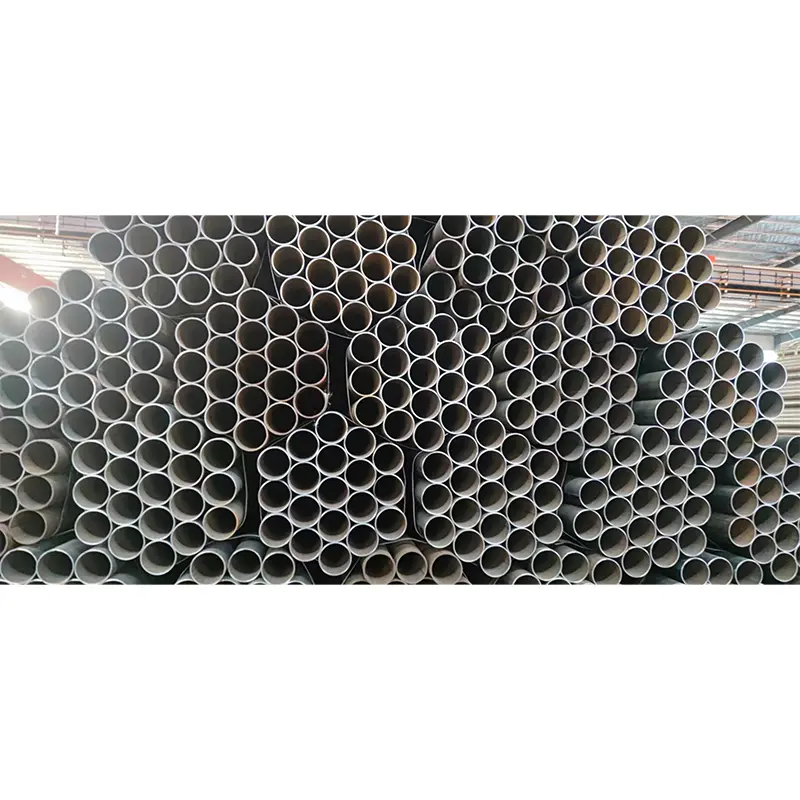

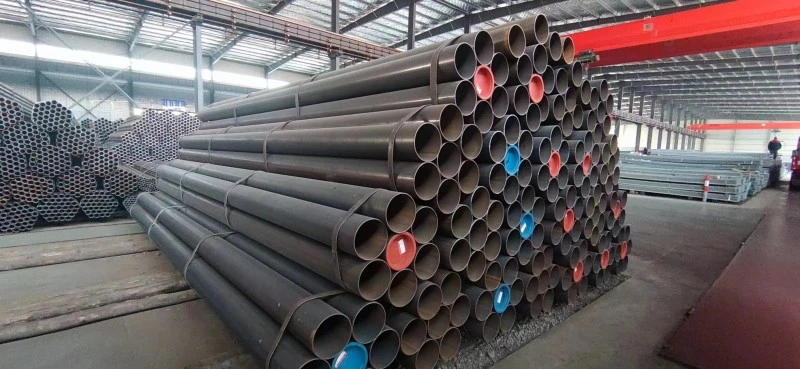

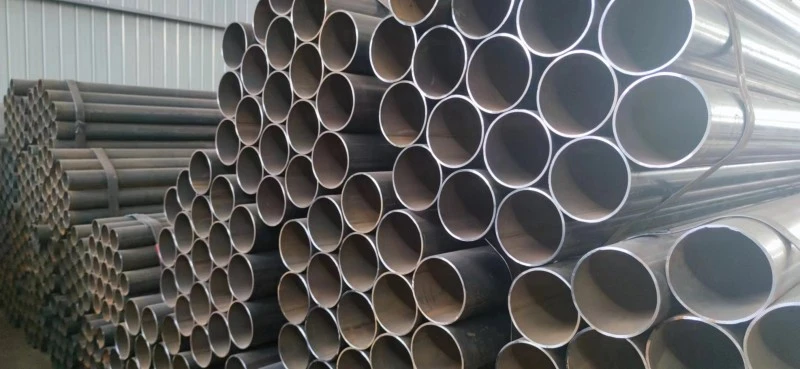

Thick Wall Black Seamless Steel Pipe

Thick Wall Black Seamless Steel Pipe is a seamless steel pipe with a larger wall thickness compared with standard seamless pipes. It is manufactured without welding seams, allowing the pipe body to withstand pressure through the overall strength of the steel material rather than relying on welded joints. The black surface is the natural oxide layer formed during hot rolling, which indicates that the pipe has not received galvanizing, painting, or other anti-corrosion coatings.

The main production process includes round billet heating, piercing, hot rolling, sizing, straightening, cutting, non-destructive testing, and final inspection. For applications requiring higher dimensional accuracy, hot rolling combined with cold drawing can improve surface quality, thickness precision, and mechanical performance.

Product Specifications

Why Choose Thick Wall Seamless Steel Pipe?

High Pressure and Load Bearing Capability

The thick wall design increases the pressure resistance and structural strength of the pipe. Combined with a seamless structure, it provides excellent resistance against internal pressure, external impact, compression, and deformation, making it suitable for heavy-duty industrial applications.

Reliable Performance Under Complex Conditions

Without welded joints, the pipe has more uniform stress distribution and stable mechanical properties. It performs well under continuous pressure, vibration, impact loading, and harsh operating conditions where ordinary thin wall pipes may not meet requirements.

Strong Machining Adaptability

Thick Wall Black Seamless Steel Pipe can be processed through cutting, welding, threading, bending, machining, and heat treatment. This makes it suitable for customized mechanical components, equipment manufacturing, and engineering fabrication.

Cost Advantage With Flexible Surface Treatment

Compared with galvanized or coated seamless pipes, black seamless steel pipe eliminates additional surface treatment costs during production. Customers can select suitable protection methods according to actual environments, improving cost efficiency.

Manufacturing Process and Material Selection

1. Hot Rolled Thick Wall Seamless Pipe

Hot rolled seamless pipe is produced through billet heating, piercing, and rolling processes. It provides larger diameter ranges, thicker wall options, and good overall strength, making it widely used in engineering structures, pressure pipelines, and heavy equipment.

2. Cold Drawn Thick Wall Seamless Pipe

Cold drawn seamless pipe uses further processing after hot rolling to improve dimensional accuracy, surface finish, and mechanical performance. It is commonly used for hydraulic cylinders, precision mechanical parts, and applications requiring tighter tolerances.

3. Material Selection

Different steel grades are selected according to working conditions. 20# steel is suitable for general applications, Q345B and 16Mn are preferred for higher strength requirements, while 20G and alloy steel are used for special temperature or pressure conditions.

Main Applications

1. Hydraulic and High Pressure Systems

Thick Wall Black Seamless Steel Pipe is widely used in hydraulic pipelines, hydraulic cylinder manufacturing, high pressure water systems, oilfield equipment, and industrial pressure transportation systems.

2. Heavy Machinery Manufacturing

The product is commonly processed into mechanical shafts, cylinder barrels, equipment frames, sleeves, and other components requiring high strength and wear resistance.

3. Pressure Equipment and Thermal Systems

With suitable material selection, thick wall seamless pipes are used in pressure vessels, boiler-related equipment, heat exchange systems, and industrial thermal pipelines.

4. Engineering Structures

The high load-bearing capacity makes them suitable for construction supports, bridge components, pile sleeves, mining support structures, and heavy equipment foundations.

5. Energy and Industrial Pipelines

They are applied in oil and gas equipment, chemical process pipelines, pump stations, and industrial fluid systems requiring reliable pressure performance.

Difference Between Thick Wall Seamless Pipe and Other Pipes

Surface Treatment and Usage Recommendations

1. Indoor and Dry Environment

In dry indoor environments, Thick Wall Black Seamless Steel Pipe can be used directly after basic cleaning because corrosion risk is relatively low.

2. Outdoor or Humid Environment

For outdoor, underground, or moisture-exposed applications, additional protection such as painting, epoxy coating, or anti-corrosion wrapping should be applied to prevent oxidation.

3. Long-Term Service Projects

For permanent projects, the surface protection method should be selected according to soil conditions, humidity, chemical exposure, and maintenance requirements.

Purchasing Guide

1. Confirm Wall Thickness Requirements

Wall thickness is the key factor affecting pressure resistance and load capacity. Customers should confirm the actual outer diameter and wall thickness according to project design requirements.

2. Select Suitable Steel Grade

General mechanical applications usually choose 20#. Heavy load structures and high strength requirements commonly use Q345B or 16Mn. High temperature applications require specialized materials such as 20G.

3. Check Quality Documents

For pressure applications, customers should verify material certificates, dimensional inspection reports, and non-destructive testing records before acceptance.

Application Example

Hydraulic Equipment Component Manufacturing

ZHONGTIAN supplied Thick Wall Black Seamless Steel Pipe for hydraulic equipment manufacturing. The customer required seamless pipes with stable wall thickness and strong pressure resistance for further machining into hydraulic cylinder components.

The thick wall structure provided sufficient machining allowance and load-bearing strength, while the black surface allowed the customer to apply customized surface treatment according to the final working environment.

FAQ

1. What Is Thick Wall Black Seamless Steel Pipe?

It is a seamless steel pipe manufactured from round steel billets through hot rolling or cold drawing processes. The product has a thicker wall design and keeps the original black oxide surface without galvanizing or coating.

2. What Is the Difference Between Thick Wall and Thin Wall Seamless Steel Pipe?

Thin wall seamless pipe is mainly used for ordinary fluid transportation and lightweight applications. Thick wall seamless pipe provides stronger pressure resistance, impact resistance, and structural support capability for heavy-duty applications.

3. Is the Black Surface Rust?

No. The black surface is mainly the oxide layer formed during hot rolling. It is a normal production characteristic and does not indicate a quality problem.

4. Can Thick Wall Black Seamless Steel Pipe Be Used Outdoors?

Yes, but additional corrosion protection is recommended. Since the pipe has no protective coating, outdoor and humid environments require suitable anti-corrosion treatment.

5. Why Choose Black Seamless Pipe Instead of Galvanized Seamless Pipe?

Black seamless pipe offers lower initial cost and flexible secondary processing. Galvanized seamless pipe provides better corrosion resistance and is more suitable for long-term outdoor or corrosive applications.
