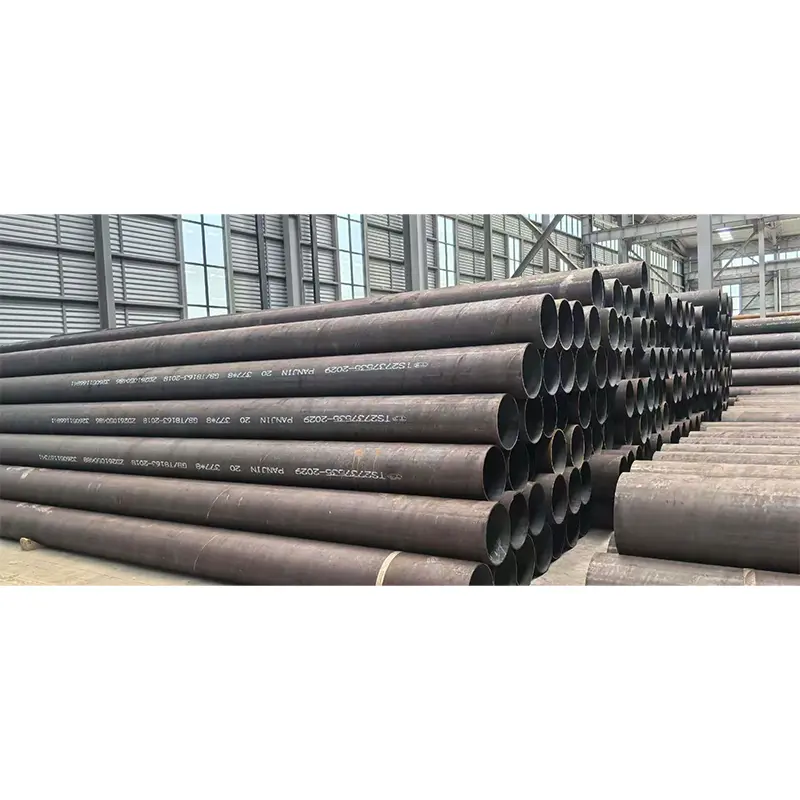

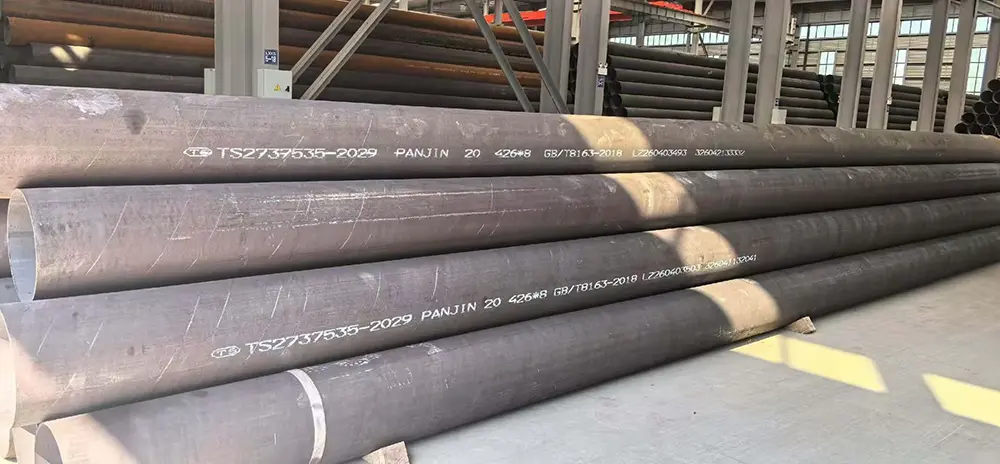

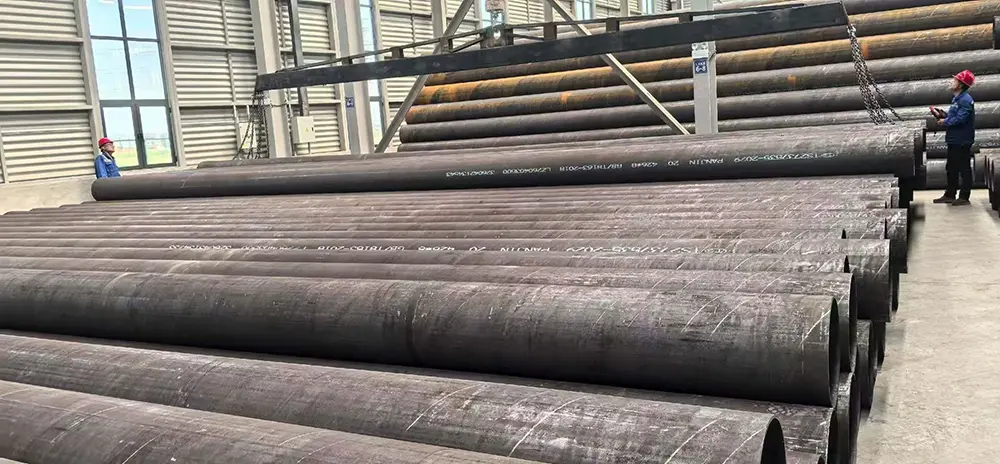

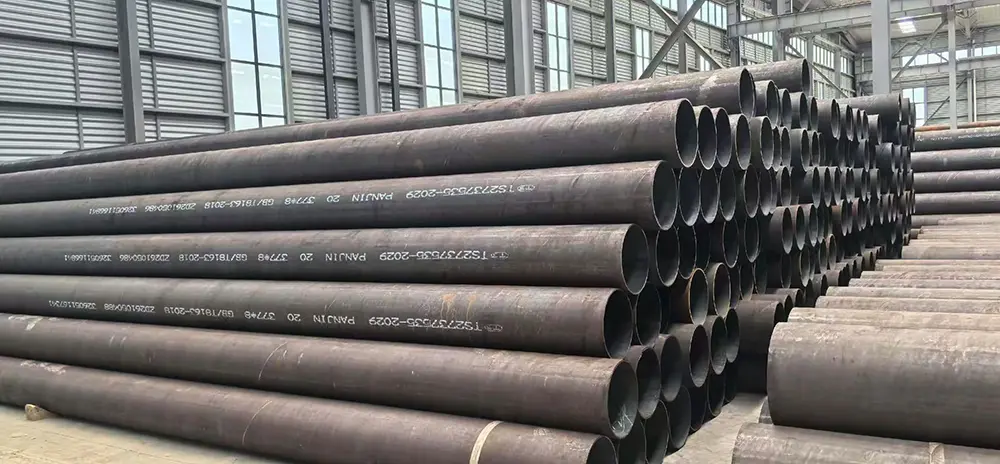

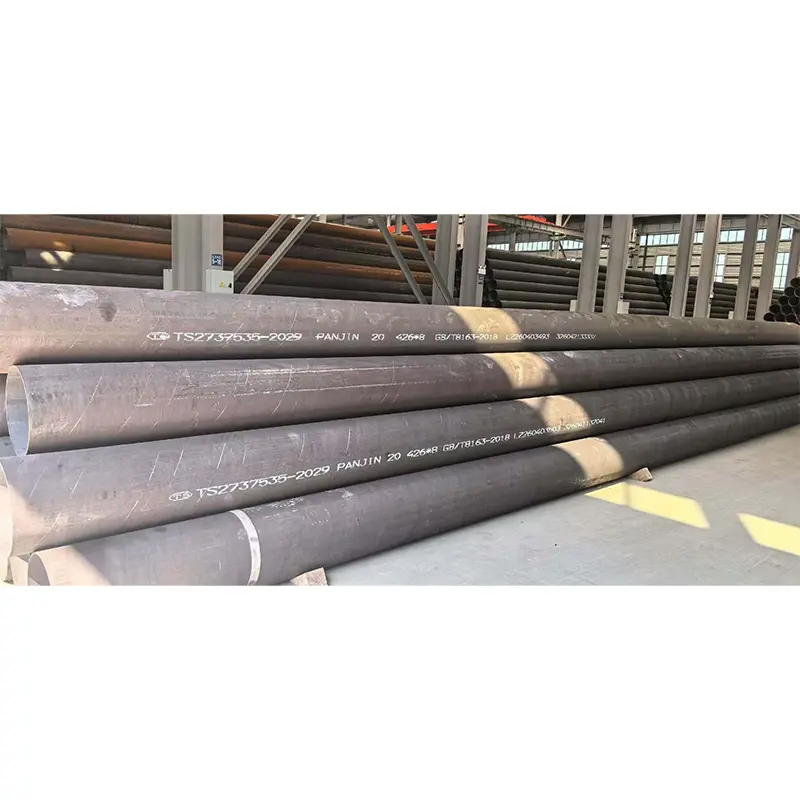

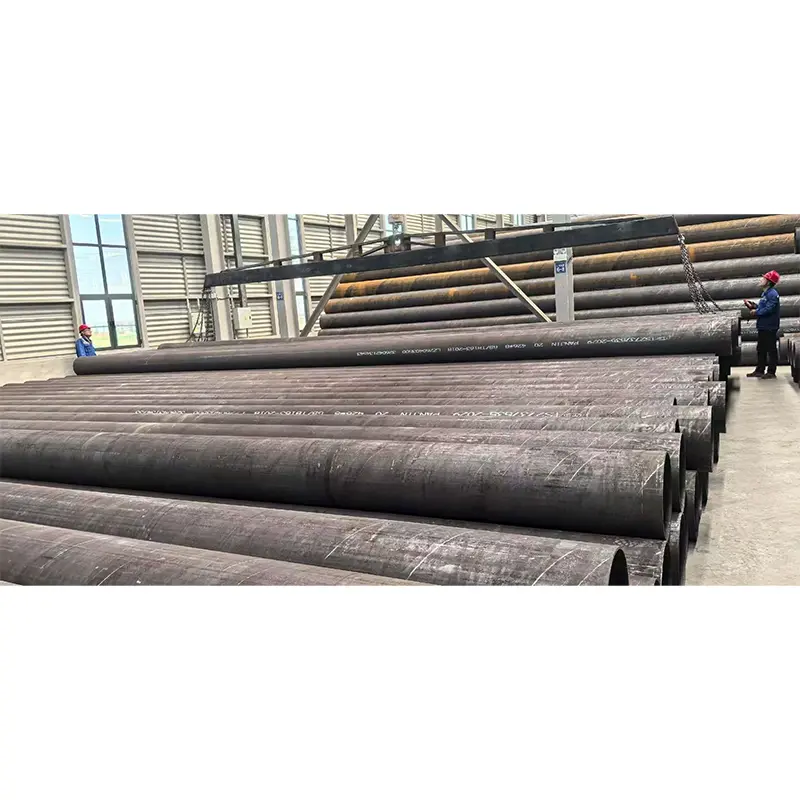

Hot Rolled Seamless Steel Pipe

ZHONGTIAN Hot Rolled Seamless Steel Pipe is produced by heating solid round steel billets above recrystallization temperature, then forming hollow tubes through piercing and continuous rolling. The entire pipe body is formed without welding joints, eliminating weld-related weak points.

The typical manufacturing process includes:

Round billet inspection → High-temperature heating → Rotary piercing → Hot rolling → Diameter sizing → Straightening → Cutting → Non-destructive testing → Final inspection

Compared with cold drawn seamless pipes, hot rolled seamless pipes require fewer deformation processes, making them more suitable for large-volume production and heavy-duty industrial applications.

The hot rolling process improves production efficiency while maintaining stable mechanical properties, making it a preferred solution for general engineering and pressure pipeline systems.

Core Technical Parameters

Core Performance Advantages

1. Suitable for Large Diameter and Heavy Wall Applications

Hot rolling allows seamless pipes to be manufactured with larger diameters and thicker wall structures. Compared with cold drawn pipes, Hot Rolled Seamless Steel Pipe provides better cost performance for large engineering projects.

2. Stable Mechanical Performance

The seamless structure provides uniform stress distribution without weld defects. The pipe maintains good tensile strength, impact resistance, and pressure-bearing capability under long-term operation.

3. High Production Efficiency and Lower Cost

The hot rolling process requires fewer production steps than cold drawing, resulting in higher output and lower manufacturing costs. It is an economical choice for large quantity industrial procurement.

4. Excellent Processing Capability

Hot Rolled Seamless Steel Pipe can be cut, welded, threaded, bent, machined, and connected with flanges according to project requirements.

5. Wide Material Selection

Different steel grades can be selected according to application requirements, including carbon steel for general pipelines, high-strength steel for structural applications, and special grades for high-temperature systems.

Main Application Areas

1.Oil and Gas Transportation

Used for oilfield gathering pipelines, natural gas transmission systems, refinery process pipelines, and energy equipment connections.

2.Industrial Fluid Pipeline

Suitable for water circulation systems, compressed air pipelines, hydraulic systems, and chemical process pipelines.

3.Boiler and Heat Exchange Systems

Applied in low and medium pressure boiler pipelines, heat exchanger tubes, and thermal energy systems.

4.Mechanical Manufacturing

Used for hydraulic cylinders, machinery components, shafts, sleeves, equipment frames, and precision mechanical parts.

5.Construction and Structural Engineering

Applied in steel structures, foundation piles, supporting frames, bridge components, and heavy equipment supports.

6.Mining and Heavy Industry

Used in mine support structures, slurry transportation pipelines, and heavy industrial equipment.

Hot Rolled vs Cold Drawn Seamless Steel Pipe

Selection Guide:

Choose Hot Rolled Seamless Steel Pipe for large diameter, thick wall, pressure pipeline, and cost-sensitive projects.

Choose Cold Drawn Seamless Steel Pipe for precision components requiring strict dimensional tolerance.

Hot Rolled Seamless Steel Pipe vs Other Pipe Types

1. Compared with Welded Steel Pipe

Hot Rolled Seamless Steel Pipe has no welding seam, providing better pressure resistance and structural reliability. Welded steel pipes are more economical for low-pressure applications but are generally not preferred for high-pressure systems.

2. Compared with Black Seamless Steel Pipe

Both products have no welding seam and similar base materials. The difference is that Hot Rolled Seamless Steel Pipe emphasizes the manufacturing process and large-scale engineering applications, while Black Seamless Steel Pipe focuses on surface condition without coating treatment.

3. Compared with Galvanized Seamless Steel Pipe

Hot Rolled Seamless Steel Pipe has a lower initial cost but requires additional corrosion protection for outdoor or corrosive environments. Galvanized seamless pipes provide built-in corrosion resistance and longer maintenance-free service life.

International Application Case

Pipeline Support System for a Canadian Mining Project

A mining company in Canada required high-strength seamless pipes for slurry transportation support structures and equipment connections in a cold climate environment.

The project selected Hot Rolled Seamless Steel Pipe with Q345B material, featuring:

● Outer diameter: 273mm

● Wall thickness: 16mm

● Length: 12 meters

● Surface treatment: Anti-rust oil coating before installation

The pipes were used for heavy-duty support frames and industrial pipeline systems. The seamless structure provided stable mechanical performance under vibration and heavy loads, while the hot rolled process helped reduce procurement costs for the large-volume project.

Key Points For Purchasing

1. Select material according to working conditions:

● 20# steel for general fluid transportation;

● Q345B/16Mn for high-strength structures and heavy loads;

● 20G for boiler and high-temperature applications.

2. Confirm key dimensions:

● Outer diameter;

● Wall thickness;

● Length;

● Pressure requirement.

3. For precision applications, choose cold drawn pipes; for engineering projects requiring large quantities and thick walls, hot rolled pipes are more economical.

4. High-pressure applications should require:

● Material certificate;

● Hydrostatic test report;

● Non-destructive testing report.

FAQ

1. What is Hot Rolled Seamless Steel Pipe?

Hot Rolled Seamless Steel Pipe is manufactured from round steel billets through heating, piercing, and hot rolling processes. It has no welded seam and provides stable strength, good pressure resistance, and excellent cost efficiency for industrial applications.

2. What is the difference between hot rolled and cold drawn seamless pipes?

Hot rolled pipes are produced at high temperatures and are suitable for large sizes, thick walls, and general engineering applications. Cold drawn pipes provide higher accuracy and smoother surfaces, mainly used for precision components.

3. Can Hot Rolled Seamless Steel Pipe be used outdoors?

Yes, but additional corrosion protection is recommended for outdoor, underground, or humid environments because the standard hot rolled surface does not include a permanent anti-corrosion coating.

4. Why choose seamless pipe instead of welded pipe?

Seamless pipes have no weld seam, providing better pressure resistance, uniform mechanical properties, and higher reliability in demanding industrial environments. Welded pipes are mainly selected for low-pressure and cost-sensitive applications.
