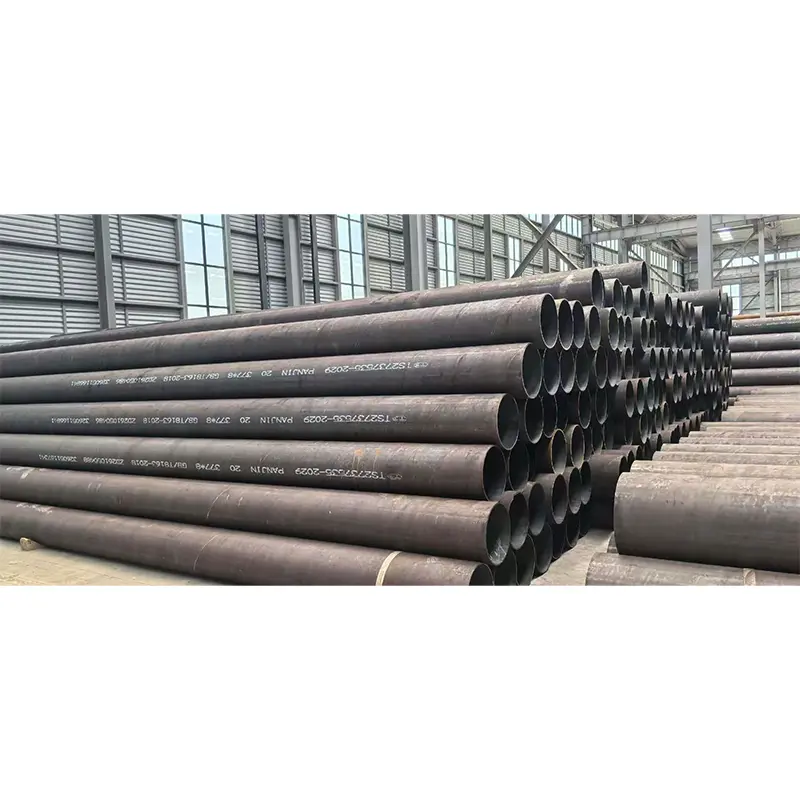

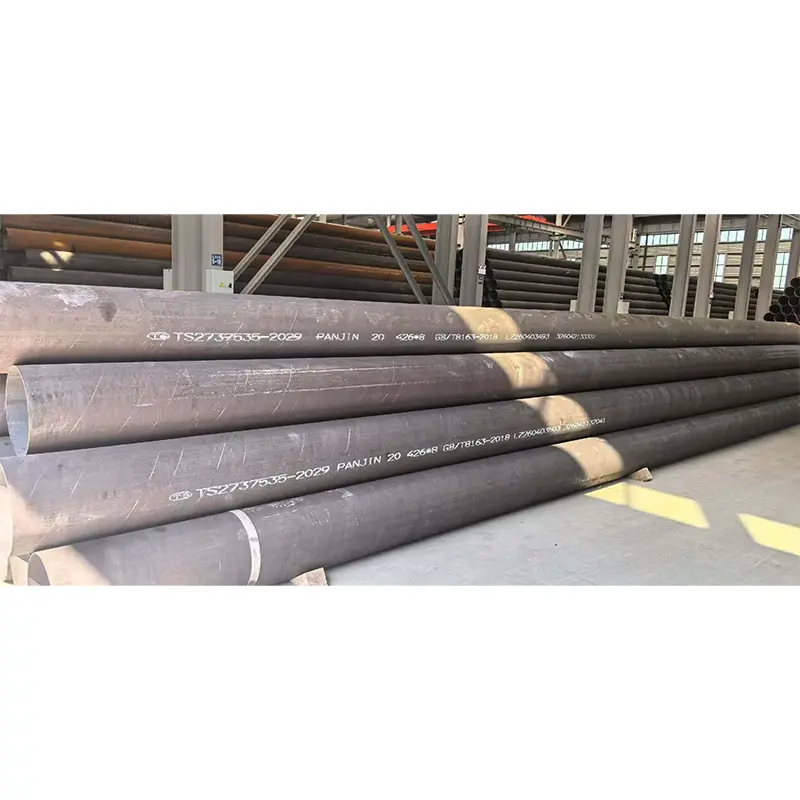

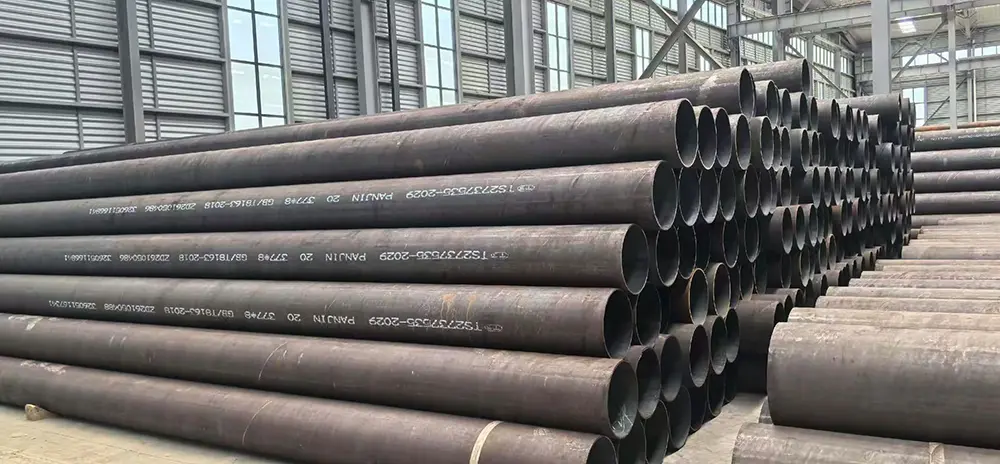

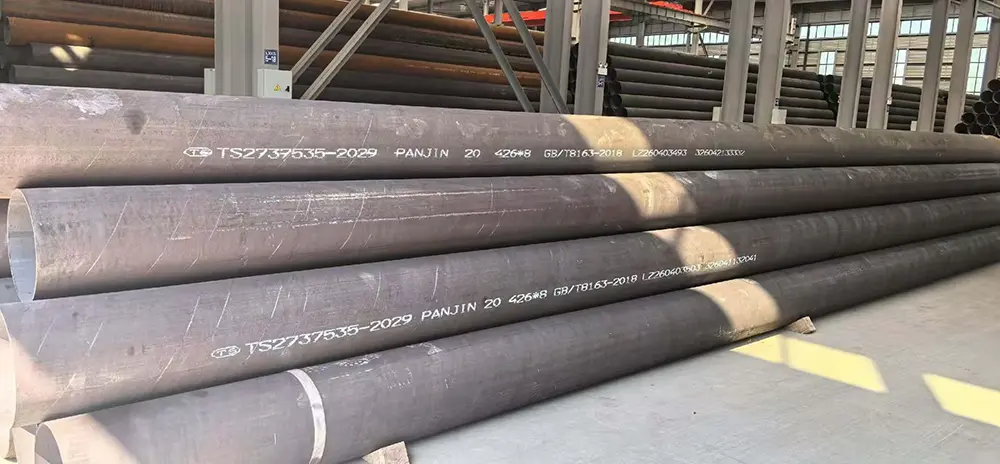

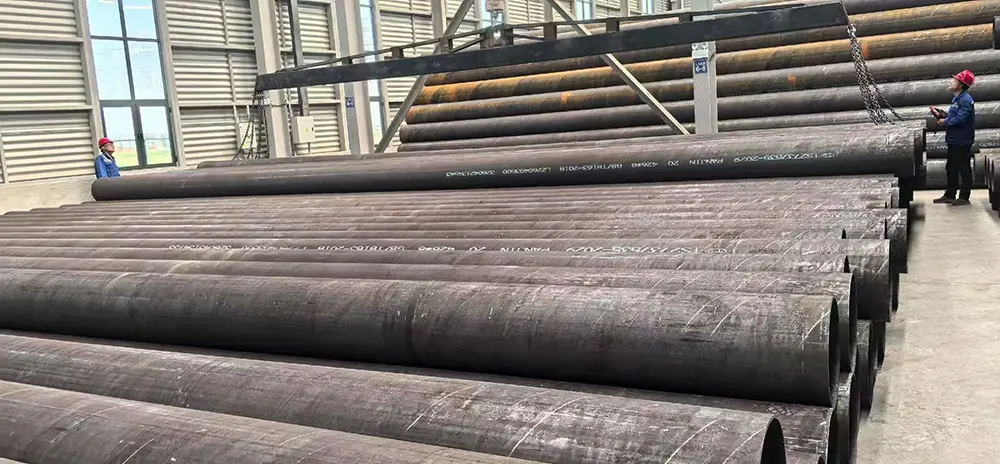

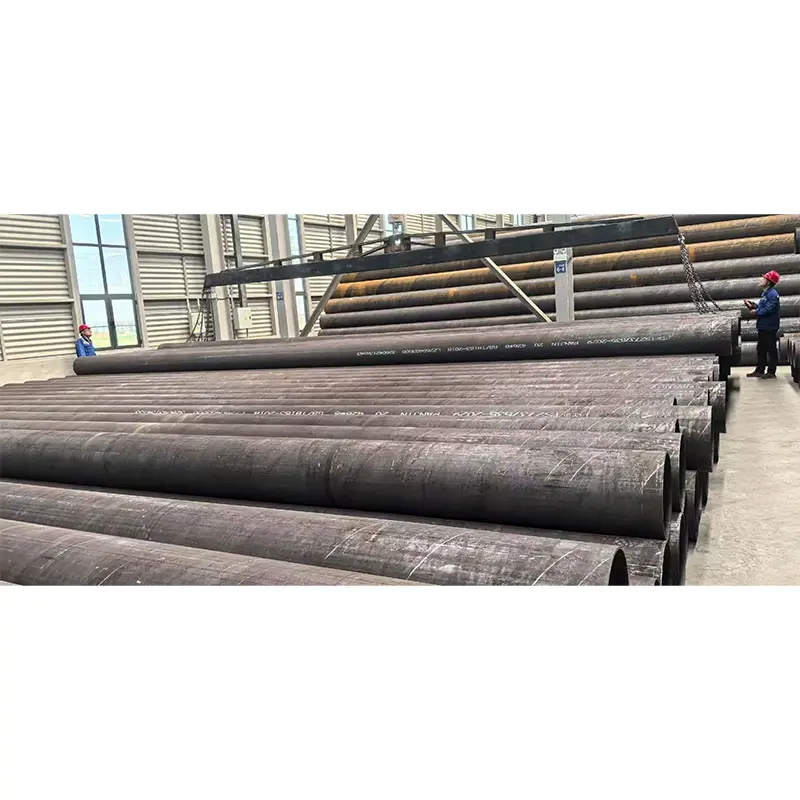

Thin Wall Black Seamless Steel Pipe

Thin Wall Black Seamless Steel Pipe refers to seamless steel pipe with a relatively small wall thickness compared with standard and thick wall seamless pipes. The pipe is manufactured without welding joints, providing uniform structure and stable mechanical performance.

The production process mainly includes round steel billet heating, piercing, hot rolling or cold drawing, sizing, straightening, cutting, inspection, and final quality control. Cold drawn thin wall seamless pipes are commonly used where higher dimensional accuracy and better surface finish are required, while hot rolled products are preferred for general industrial applications.

The black surface is the natural oxide layer formed during high-temperature rolling. It is not a corrosion coating, and additional protection is required for outdoor, humid, or corrosive environments.

Main Technical Specifications

Thin wall seamless steel pipes are mainly produced in small and medium diameters. Cold drawn products provide better tolerance control and surface quality, while hot rolled products offer higher production efficiency and cost advantages.

Product Advantages

1. Lightweight Structure and Easy Installation

The reduced wall thickness lowers the overall pipe weight, making transportation, handling, and installation more convenient. It is suitable for projects where reducing structural load and installation costs is important.

2. Seamless Structure with Reliable Sealing Performance

Because the pipe body is formed without welding joints, there is no weld seam weakness. This provides more stable sealing performance in low-pressure transportation and equipment connection applications.

3. High Dimensional Accuracy

Cold drawn Thin Wall Black Seamless Steel Pipe provides accurate outer diameter and wall thickness control, making it suitable for applications requiring precise assembly, such as instrument piping and mechanical equipment connections.

4. Excellent Machinability

The pipe can be easily cut, welded, threaded, bent, and processed according to different requirements, allowing flexible fabrication during equipment manufacturing and installation.

5. Cost-Effective Material Choice

Without additional galvanizing or coating processes, Thin Wall Black Seamless Steel Pipe has lower initial costs and allows customers to select suitable surface protection according to the actual working environment.

Main Applications

1. Mechanical Equipment Manufacturing

Used for equipment connection pipes, hydraulic auxiliary lines, machine components, shafts, sleeves, and structural parts where machining performance and dimensional accuracy are required.

2. Instrument and Automation Systems

Applied in pressure measuring lines, instrument connection pipes, pneumatic systems, and other precision piping applications.

3. Industrial Low-Pressure Piping

Suitable for low-pressure transportation of air, water, lubricating oil, and other common industrial media, including factory auxiliary pipelines and equipment circulation systems.

4. Indoor Building Piping

Used for indoor dry environments such as equipment connection pipelines, heating auxiliary pipes, and non-corrosive building applications.

5. Lightweight Structural Applications

Certain specifications can be used for equipment supports, protective sleeves, brackets, and other non-heavy-load structures.

Application Cases

Case 1: Hydraulic Auxiliary Pipeline for Machinery Manufacturing

A machinery manufacturer required seamless steel pipes with accurate dimensions and good machining performance for internal hydraulic auxiliary systems.

ZHONGTIAN supplied Thin Wall Black Seamless Steel Pipe with specification φ42mm × 3.5mm and 20# carbon steel material. The cold drawn process improved dimensional stability, allowing the pipes to be precisely machined and connected with hydraulic fittings.

Compared with welded pipes, the seamless structure reduced potential leakage risks and improved reliability during long-term equipment operation.

Case 2: Indoor Low-Pressure Air Pipeline System

A factory workshop needed an economical piping solution for an indoor compressed air auxiliary system. Since the working pressure was relatively low and the installation environment was dry, Thin Wall Black Seamless Steel Pipe was selected instead of coated steel pipes.

The project used Q235B thin wall seamless pipes, which reduced installation weight and simplified construction while meeting daily production requirements.

Comparison with Similar Products

Thin Wall Black Seamless Steel Pipe vs Thick Wall Black Seamless Steel Pipe

Thin Wall Black Seamless Steel Pipe focuses on lightweight design and processing convenience, while Thick Wall Black Seamless Steel Pipe is designed for demanding conditions requiring higher strength and pressure resistance.

Thin Wall Black Seamless Steel Pipe vs Black Welded Steel Pipe

For applications requiring better sealing performance, dimensional accuracy, and machining ability, seamless pipe is preferred. Welded pipe is suitable for ordinary low-cost piping systems.

Thin Wall Black Seamless Steel Pipe vs Hot Dip Galvanized Seamless Steel Pipe

Thin Wall Black Seamless Steel Pipe is suitable for indoor applications or projects requiring further processing, while hot dip galvanized seamless steel pipe is preferred for long-term outdoor and corrosive environments.

Selection Guide

1. Choose According to Working Environment

For indoor dry environments, Thin Wall Black Seamless Steel Pipe can be used directly. For outdoor, underground, or humid environments, additional anti-corrosion treatment such as painting or coating is recommended.

2. Select According to Pressure Requirements

Thin wall seamless pipes are mainly designed for low-pressure and medium-pressure systems. They should not replace thick wall pipes in high-pressure, high-temperature, or heavy-load applications.

3. Select According to Precision Requirements

Hot rolled thin wall seamless pipes are suitable for general industrial use, while cold drawn products are recommended for precision equipment, instrument systems, and applications requiring tighter tolerances.

FAQ

Q1: Why does Thin Wall Black Seamless Steel Pipe have a black surface?

The black surface is the oxide scale naturally formed during high-temperature rolling. It is not rust and does not affect the basic mechanical properties of the steel pipe.

Q2: Can Thin Wall Black Seamless Steel Pipe be used outdoors without treatment?

It is not recommended. Since the pipe has no protective coating, long-term exposure to moisture and rain may cause corrosion. Additional anti-corrosion protection should be applied when necessary.

Q3: What is the difference between thin wall seamless pipe and welded pipe?

Thin wall seamless pipe has no welding seam, providing more uniform strength and better sealing performance. Welded pipe offers lower cost and is widely used in general applications.

Q4: Can Thin Wall Black Seamless Steel Pipe be used for high-pressure systems?

No. Thin wall seamless pipe is mainly designed for lightweight and low-pressure applications. High-pressure systems should use thicker wall seamless pipes or dedicated pressure-grade pipes.
